Fellows Model 10-4 CNC 3 axis Gear shaper REMANUFACTURED In 2012 -2014 & now in 2023 !! w/ Fanuc Controls, motors & DrivesGEAR SHAPERS CNC
Fellows Model 10-4 CNC 3-Axis CNC Gear Shaping Machines. 18" max diameter swing , 10" max diameter internal Gear and 4" maximum face width . Machines have been remanufactured and retrofit with GE Fanuc controls motors and drives By RP Machine enterprise!. the machines were set up for a production line of products which have been completed. Machines will be gone through and ready to run after we complete our full service . These machines were originally produced & Remanufactured for one of our customers and now have been Remanufactured and gone through in 2022/23. Come with 6 month Warranty !!SEE Two different styles !
Fellows 3 axis CNC retrofit rebuilt Machines BY RP Machine
Model 10-4 s/n will advise
Remanufactered in 2012 & Rebuilt Again in 2022/23 !!
These Fellows mechanical machines were completely disassembled and gone
through Originally By RP Machine. Machines were completely disassembled,
re-manufactured old parts were replaced as needed with new components as
required. Machines were mechanically fit and assembled professionally.
They were gone through and brought back to new OEM specifications. The
machines wiring was installed new as well as all electrical components
and cabinet back in the years stated above & were replaced NEW. Piselli
Enterprises will completely disassemble and go through each machine and
repair any worn or damaged parts and replace if required. the machines
will be, cleaned, re-assembled, refit, and gone through and painted for
finish. Part test cuts available upon request !! Excellent condition!!!
Max pitch diameter (External) 18"
Max pitch diameter (Internal) 10"
Max face width, external & internal 4"
Spindle Positioning Axis 0-3''
Max diametrical pitch spur 4 DP
Max diametrical pitch 5 DP
Bore through work spindle 5.875"
Cutter spindle diameter 3.543"
Max helix angle with special guides 45 deg.
Distance between table & cutter (w/no riser) 10"
Distance between table & Cutter w present 3" riser 13"
Max. OD of fixture which can be used 19"
Dimensions (L x H x W) 91" x 105" x 72"
Machine net weight, approx. 14,000 lbs.
Equipment Features: and work done in year stated above for original retrofit
* GE Fanuc CNC Control motors and Drives
* 20 HP spindle motor with programmable AC variable drive to control
* Stroking speeds from 50-900; other SPM available upon request
* Standard spur guide.
* X axis infeed system
* X axis absolute scale
* 1 Cutter spindle back off cam
* Remanufactured table group and upper saddle assembly
* X-Axis box ways reground and fitted
* Machine comes as a complete unit and requires minimal setup
* Work table surface reground
* Electrical cabinet with air conditioning system
* 3/4 HP coolant pump
* 1-set documentation (hydraulic, electrical, mechanical)
* C-Axis work table rotation
* X-Axis work table infeed
* B-Axis cutter spindle rotation
* Programmable stroking speeds
* Cutter at top feature
* Custom Macro screens for easy conversational programming
* One to five cuts can be selected
* Segment cutting
* Single index and/or slot cutting
* Part programs can be stored in nonvolatile memory with up to 15 characters
* RS-232, S Ram, and Ethernet communication ports
* Fanuc Robot Interface (depending on original machine make up ) TBD
Machine is presently equipped with the following:
GE Fanuc cnc control, motors and drives
3" Riser assembly for 13" clearance height above table
x-Axis Ballscrew with scale (infeed)
Stand alone electrical cabinet w/ Operator pendant control
magnetic chip conveyor
high pressure gusher pump
Trabon lubrication system
hydraulic table clamping
part seating (TBD)
full books and manuals
full diagrams and drawings
ADDITIONAL OPTIONs QUOTED
-LIGHT CURTAIN WITH STRUCTURE MOUNTED: PRICE ADDITIONAL $5,500.00

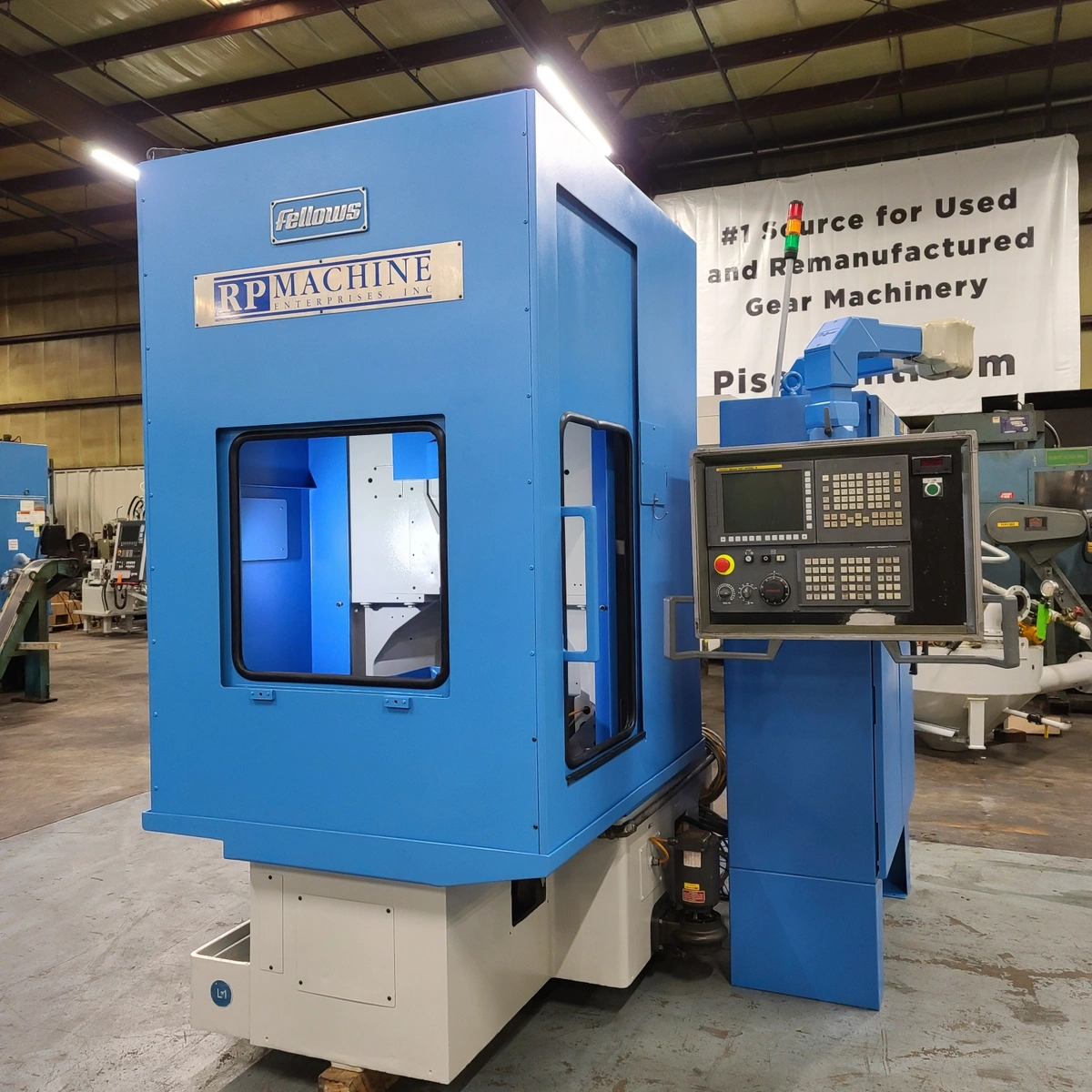

-Full enclosure as photographed: Price additional $7,500.00
* Machines are Being made available almost immediately with PO & Deposit
Machine will be runoff at Piselli Enterprises with our standard run-off
tooling and test blanks to prove out machine quality and accuracy. There
will be an additional charge to run-off customers parts at Piselli
50% down with order
50% due upon successful run-off of machine at Piselli Ent with Piselli Ent
quality test blanks and/ or prior to removal.
Warranty : 6 months Parts only !!
We can also handle complete turn key solutions for your parts with precision
ground tooling. Just send us your part prints for review and we can get you
a rough quote for review.
** Call to set up a tour of our facility to view our vast inventory and see
our rebuild location and processes, and/or call us today for a
personalized quotation for your specific requirements***
Contact Rich Piselli @ rich@piselliEnt.com to discuss this machine or
Visit our Website at WWW.PISELLIENT.com to get more information & photos
