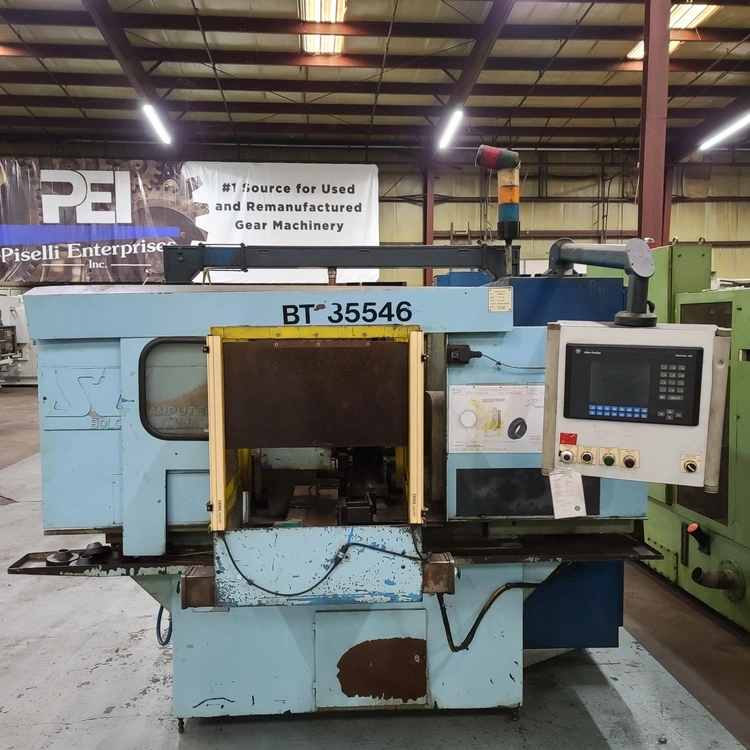

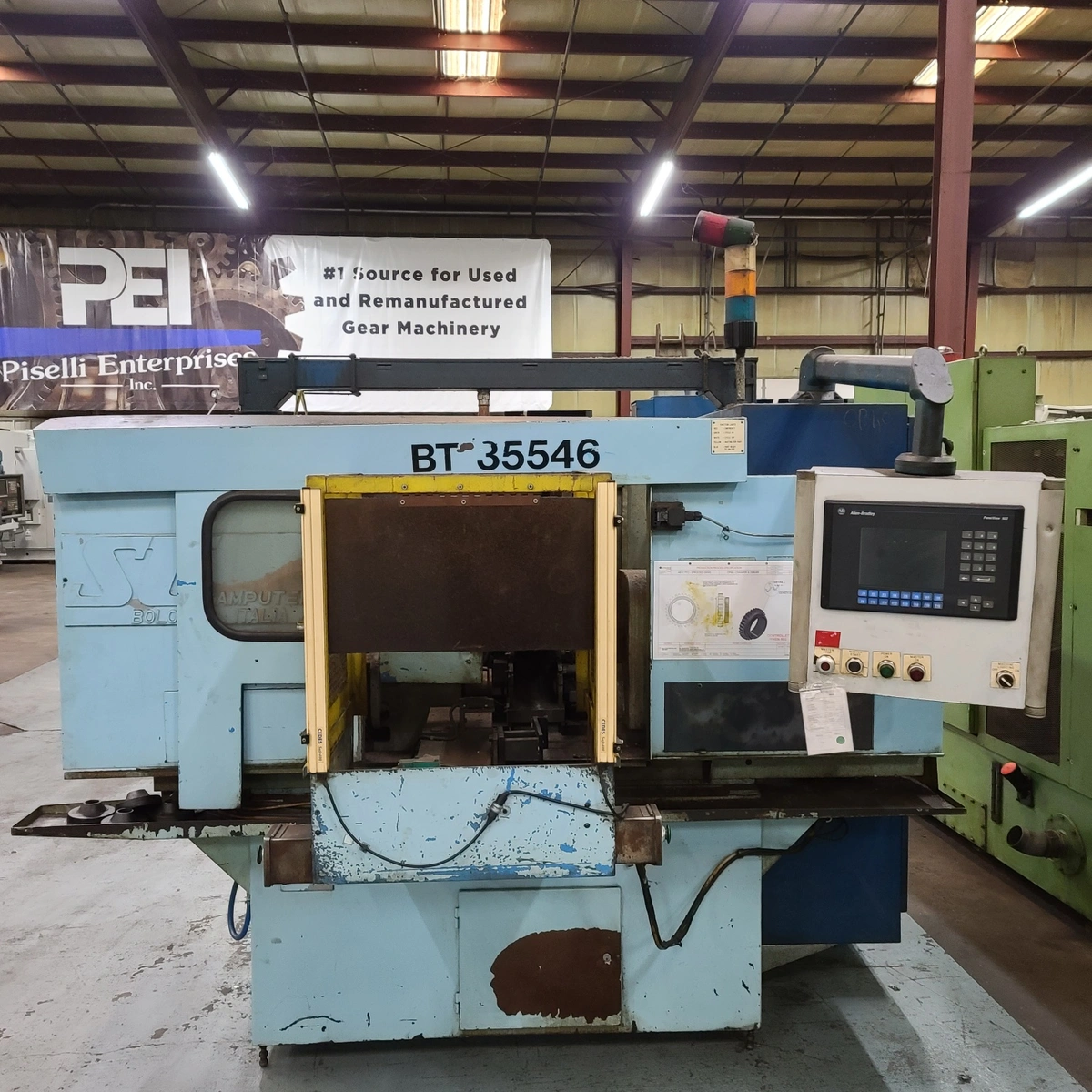

Samputensili model SCT-3 Gear chamfering machine utilizing the high speed cutters.

Samputensili Gear Chamferring machine
Model SCT-3 s/n 3554
New 2000

These machines are utilized in the manufacturing of larger transmission gears
which need hi speed chamfering for production. the machine Utilizes special
designed cutters for chamfering one or both sides of a gear. Chamfering time
is in actual seconds as opposed to Minutes for other style machines.

Machine specifications:
Max. Outside Diameter mm 25 – 350
Max. workpiece length mm 500 (750)
Max. toothed length mm 200
Module range mm 0,8 – 8
Max. outside diameter of tools mm 200
Workpiece spindle speed range rpm 0 -300

Machine is Equipped With the Following:
Allen Bradley panel view 900 PLC control
Pendant arm controller
Shuttle Style Loader front loader
Full Guarding
Misc. Tooling

contact us today to view these machines in our Statesville facility. the
machines can be set up in your plant with our highly trained technicians
for a fee. Contact us to learn more about these production style machines!
visit www.PiselliEnt.com to view more of these machines in our inventory.
