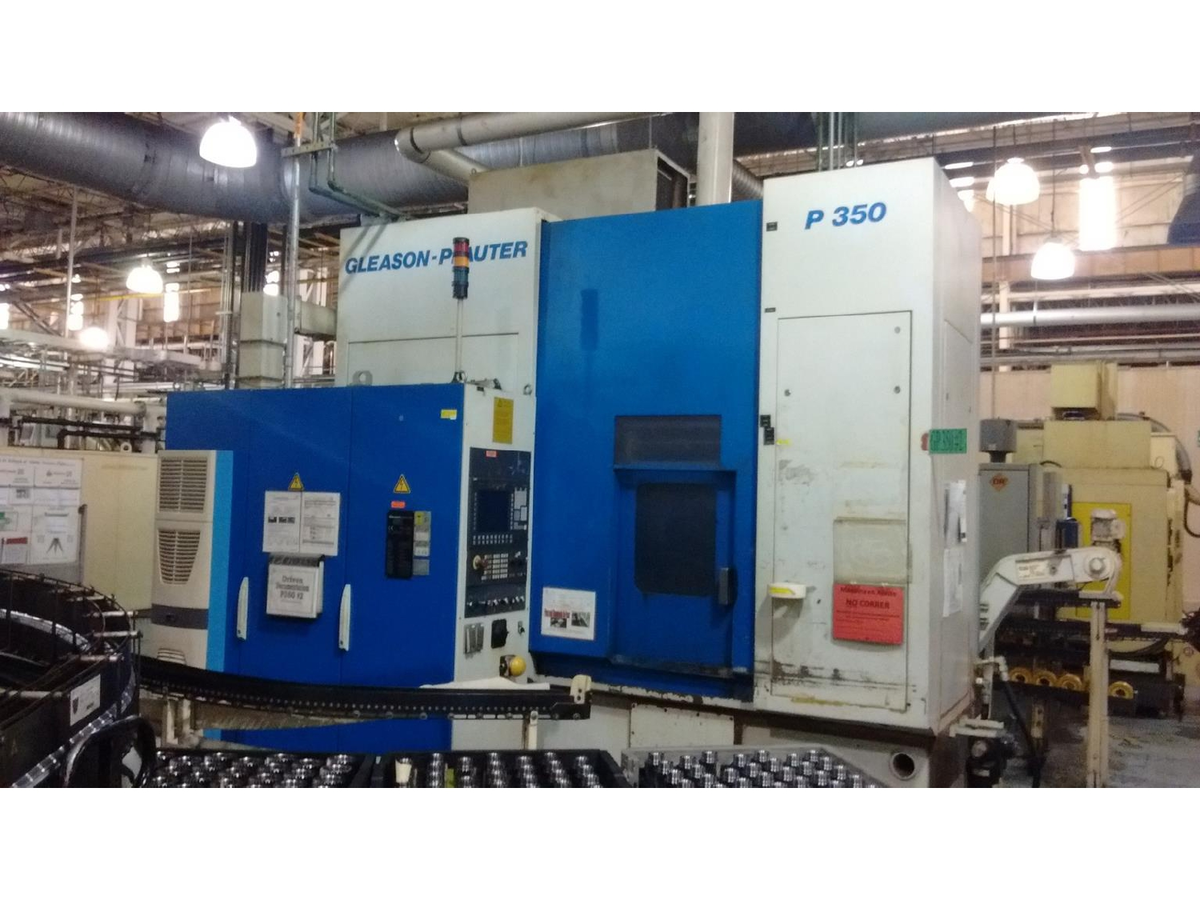

Gleason Pfauter Model P-350 6 Axis CNC Gear Hobber , 16" diameter capacity New 2009 Delivered New 2010

Gleason Pfauter Heavy duty 6-Axis CNC Gear Hobber
Model P-350
year of mfg 2009 Delivered 2010

These Gleason Pfauter machines are some of the finest hobbing machines
on the Market today. The machines are very heavy duty state-of-the-art
Hobbers with all current machine features.

Machine specifications are as follows:
Max diameter of gear 400 mm
Max modul 8 mm
Max hob diameter 165 mm
Max hob length 250 mm
Head swivel range + 30 deg / -40 deg
Hob speed 170 -720 rpm
table speed 0 - 55 rpm
table diameter 330 mm
radial travel (X-axis) 245 mm
tangential travel (y-axis) 200 mm
Axial travel (Z-axis) 600 mm
Rapid traverse speeds of axis:
X-axis 2,000 mm/min
Y-axis 3,000 mm/min
Z-axis 3,000 mm/min
tailstock travel 650 mm
Max clearance height under tailstock 1,050 mm
Machine power 480 volt /3 /60 cycle
machine power load 50 KVA
Machine dimensions (mm) 6,770 L x 3,175 W x 3,615 High

machines are equipped with the following
Siemens 840 D controls motors and drives
automatic clamping
electrical panel with A/C unit
chip conveyors
full guarding retract for overhead loading
full books and manuals

Machines have been removed from power and are available for
immediate sale . please let us know if you would like us to
send you a quotation and additional photos. these unique machines
will not last so contact us today if you have serious interest
visit WWW.PiselliEnt.com to view these and other machines in our
inventory or contact Rich Piselli at Rich@PiselliEnt.com
