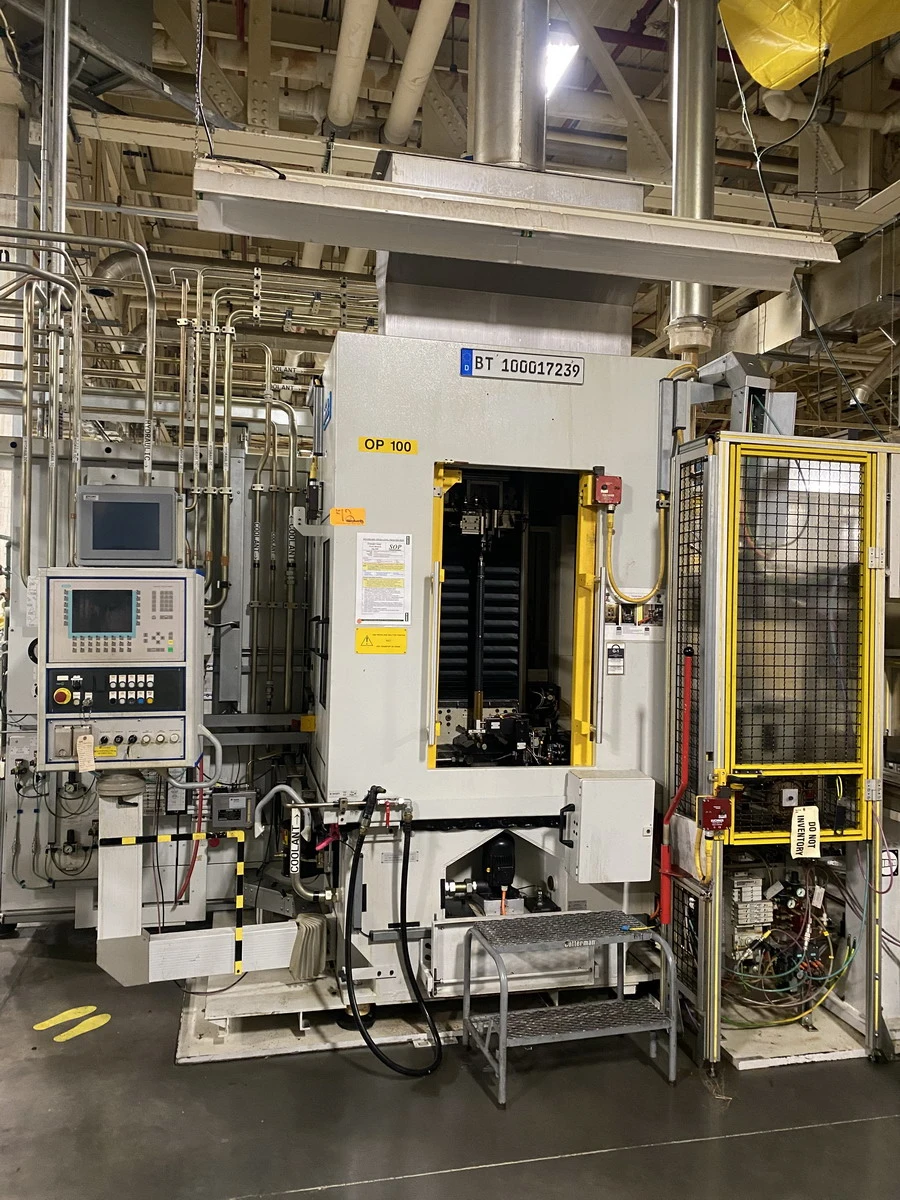

Forst CNC Vertical Pull Down Broach
Model RISH 6.6 x 1000 x 320 Vertical pull down CNC Broach
S/N 35 New 2006
Machine is equipped with:
Siemens Sinumerik Control
Rexroth 231 Gal. Hydraulic tank 874 Liters,
400 Psi, 22.37 Hp, Approx.
8' filter loader,( No conveyor)
operating voltage: 400V/3 50 Hz -
control voltage: 230AC/24DC V 50 Hz -
nominal current 120A -
max. tensile force: 6,3 kN -
max. stroke: 1250 mm -
max. cutting speed: 8 m/min -
max. reverse speed: 16 m/min -
max. workpiece diameter: 91 mm -
max. workpiece height: 53 mm -
max. tool diameter with standard accessories: 40 mm -
max. tool shaft diameter: 32 mm -
max. tool end piece diameter: 32 mm -
drive power: 5,5 kW -
mit coolant unit,
chip conveyor and metal edge filter -
In- and output device -
automatic workpiece handling
dimensions (l x w x h) approx.: 4,300 x 2,600 x 4,800 mm,
weight approx.: 15,000 kg
Machine has just been removed from service. the machine
is in excellent mechanical condition. fully designed to
handle both Hard and soft broaching. contact us today to
learn more about this machine or visit WWW.PiselliEnt.com
