Fassler Model K-300 cnc gear Hone , 300mm max diameter capacity , siemens Sinumerik control new 1999/2000

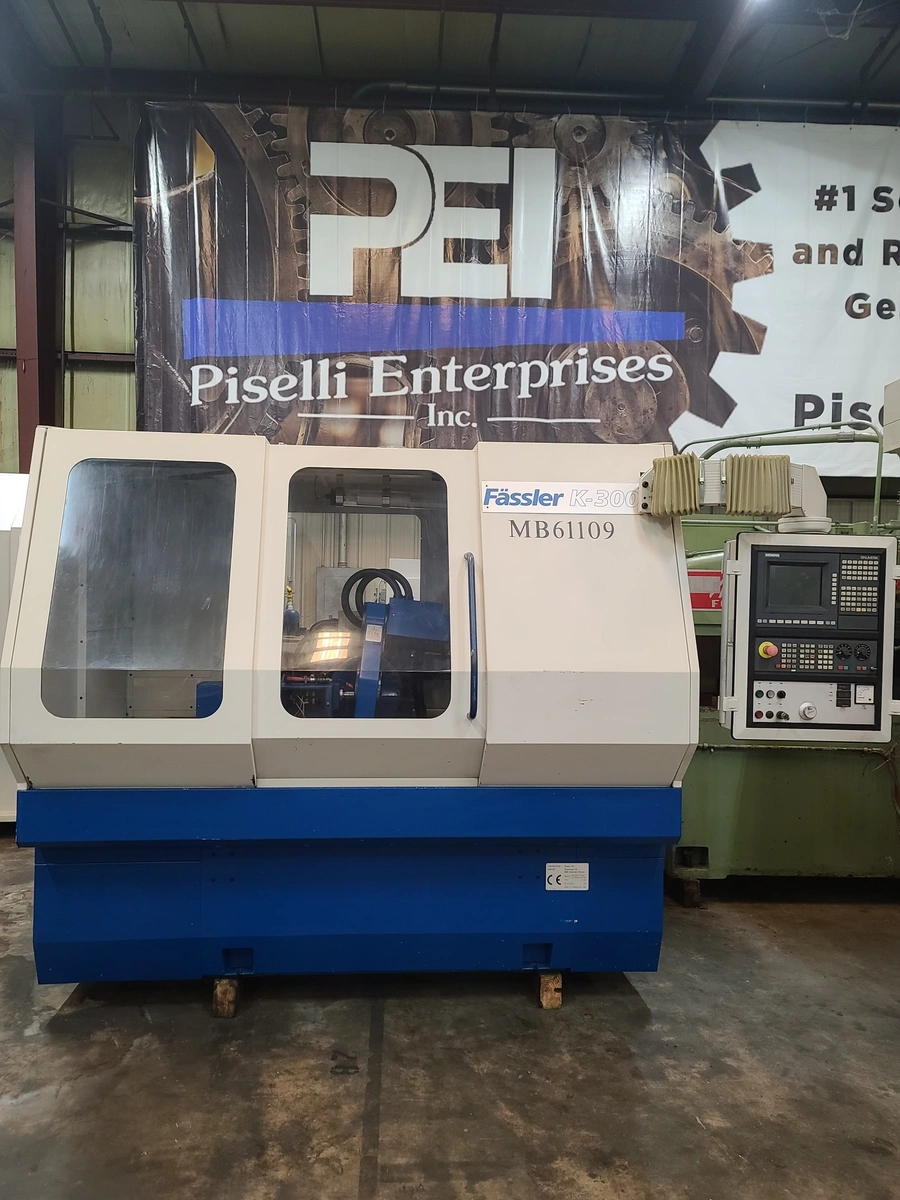

Fassler Horizontal Gear Honing Machine
Model K-300 s/n 726
New 1999/2000
CE certified

This machine is capable of honing both internal and external gears, it
is used mainly for surface finishes of high quality where you are
unable to grind due to clearance issues of grinding wheel

Machine specifications are as follows :
Workpiece Diameter Max/Min.........................................180/5 mm
Workpiece Length Max................................................1000 mm
Gear teeth Width  Max................................................120 mm
Module Range.......................................................0.3-6 mm
Pressure Angle (alpha) Max /Min.......................................40/14
degree Helix Angle (beta) Max. (left or Right)...................30 degree
*Work piece weights:
-Externally toothed Between centers...................................20 kg
-Externally toothed cantilevered......................................20 kg
-Internally toothed incl. clamping chuck..............................50 kg

* Check with Fassler AG for flank modifications:
Tip relief, Profile Crowning, Longitudinal Crowning and Conical Honing Stone
Measurements
External Diameter Max................................................300 mm
Honing Stone Widths.......................................24/30/40/50/60 mm
Internal Diameter Min................................................220 mm
Machine dimensions Length x width x Height............2410 x 2300 x 2465 mm
floor space required.........................................4600 x 4600 mm
weight..............................................................4600 kg
* Machine equipped with Siemens Sinumeric 840C controller
Swiveling pendant control
Control cabinet attached
Hydraulic unit oil mist collection
Coolant tank and filtration unit

* This machine can be inspected in our Statesville facility in very good
Mechanical "like New" condition.
Call for full specifications and copy of manuals for review and machine
functionality study for your specific requirements. These general specs
should only be used as a guide for further consideration. or Visit our
Website @ WWW.PiselliEnt.com to view this and other similar gear machines
