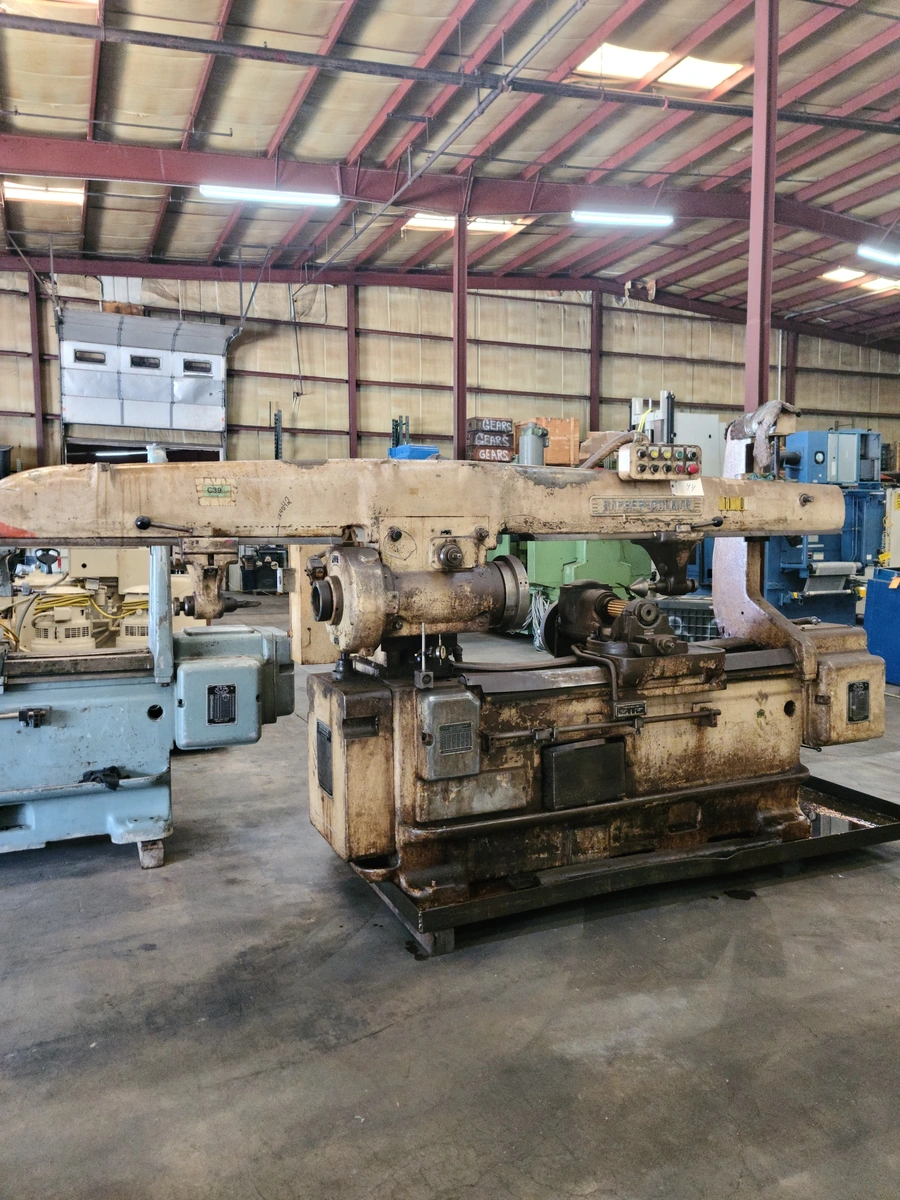

Barber Colman model 16-36 W/Extended arm, 16" diameter, 36" cut length, 4-1/8" bore, 38" arm extension with swing away tail center allowing 96" bweteen centers!
Barber Colman horizontal hobber with special Extended Arm
Model 16-36 Extended
s/n 4164
w/ 38" arm extension through spindle bore
this special C-frame style machine allows you to support up to 4-1/8"
diameter parts through the work spindle and hold between centers up
to 96" in part Length and up to 58" between work spindle and tailstock
Machine specs are as follows
Machine specifications
*Max DP in Steel...........................................6 DP-10 DP
*Max Work OD...............................................16"
*Max Hob Slide Travel......................................36"
*Diameter Hole Thru Work Spindle...........................4-1/8"
*Max Hob Diameter..........................................5"
*Max Distance Face of Work Spindle to Tailstock............58"
*Max Distance between centers through work spindle.........96"
*Max Vertical Adjustment of Work Spindle...................8"
*Max Hob Slide Swivel Angle Setting-Degree.................45 degrees
*9 Hob Speeds..............................................59-246 RPM
*Hob Feeds................................................. .0075-.1125"
MACHINE IS EQUIPPED WITH:
38" extended overarm allowing up to 96" between centers
dual thread index worm
4-1/8" large bore through work spindle
Rapid traverse
Manual hob shift
tailstock with screw type center
swing away tailstock on arm extension
C-frame style machine
misc face plate fixture for mounting a chuck
Misc. Change GearsĀ
Machine can be inspected under power with proper notice in our
Statesville, NC facility! visit WWW.Pisellient.com to request
a quote or see more photos on line.
