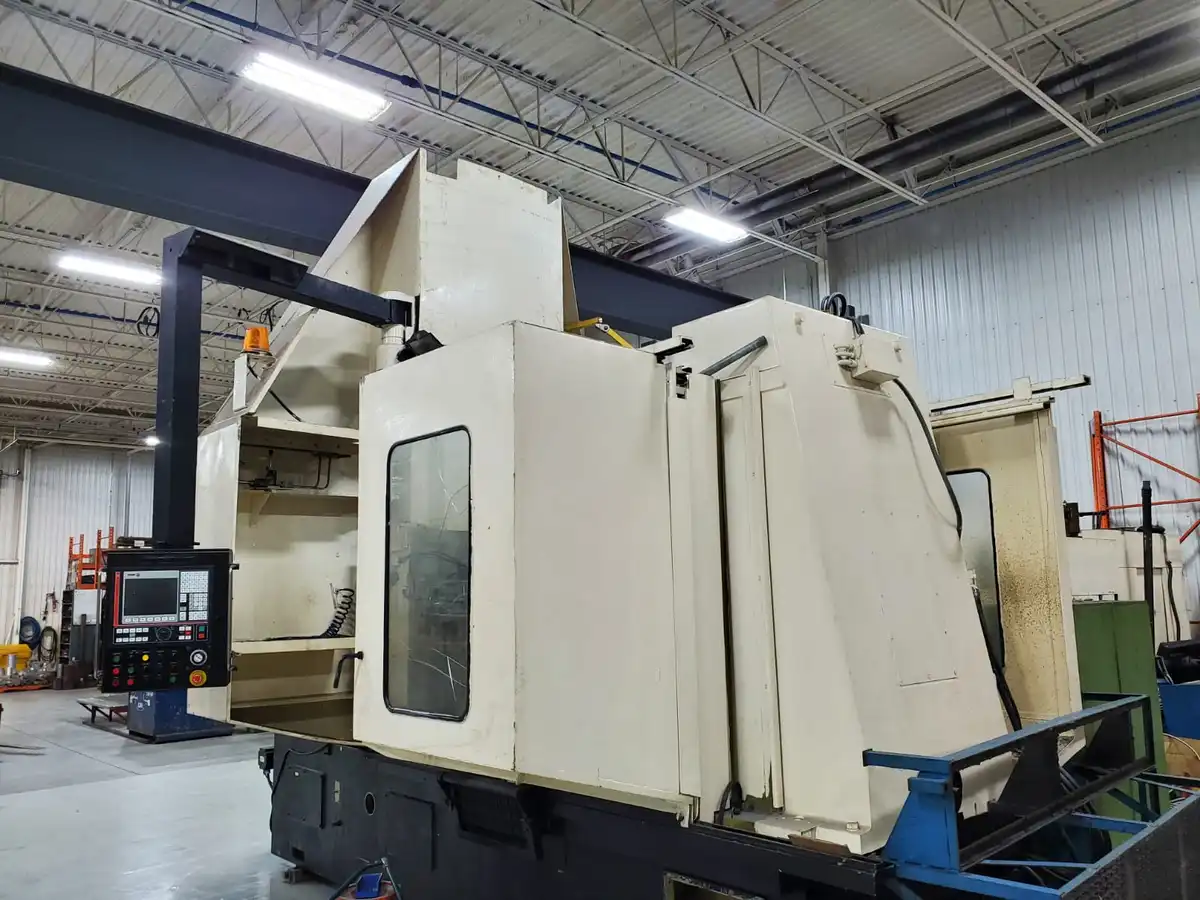

Modul Model ZFWZ 12/16 CNC Heavy Duty Gear hobbing machine w/ heavy duty pinion support and tailstock Remanufactured in 2008

Modul CNC Vertical Gear hobbing machine
Model ZFWZ 1200/1600
s/n 240303
Retrofit in 2008-2010 w/ New Fagor CNC controls

This Heavy Duty CNC Vertical Gear Hobbing Machine is a very robust design
the machine can handle very coarse pitch gears and has a heavy duty table
group for large capacity gearing. Its also equipped with a heavy Duty
tailstock and Pinion support steady for holding large shafts and pinions

Machine specifications are as follows:
Max Diameter Gear which can be cut 62" / 1600 mm
Diameter of t-slotted table 48" / 1200 mm
Diameter of table bore diameter 10" / 250 mm
Max Diameter Hob 11" / 275 mm
Max length of hob 13" / 350 mm
Max hob shift 23" / 590 mm
Max Face width 40" / 1000 mm
Clearance height (top of table to tailstock) 66" / 1680 mm
Hob Rpm range 8-250 RPM
Axial feed range single index method 0,16 - 610 mm/min
power consumption
Main Motor 26 KW
connected load 62 kVA
machine dinensions 5600mm x 4700mm x 4420mm tall
machine weight 48,000 lbs

Machine is equipped with the following :
Fagor CNC controller retrofitted with brushless motors and pendant control
new electrical panel & wiring used for retrofit
Heavy duty universal head
single index capability
assortment of hob arbors
heavy duty tailstock w/ swing away and pinion support
hydraulic unit
coolant tank w/ chip conveyor
Books and manuals w/ electrical prints

This machine can be inspected in our Statesville Facility with
proper notice , the machine is well equipped for job shop or
production use. contact us today to learn more about this machine
as we become more familiar with its full capabiliries and capacities
