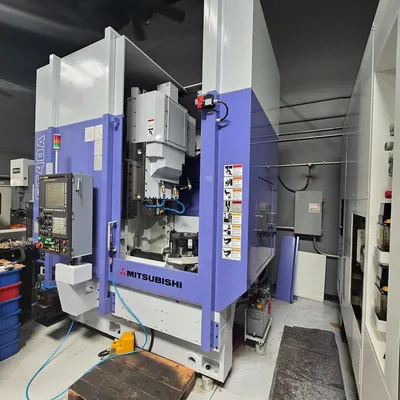

MITSUBISHI GUIDELESS CNC GEAR SHAPER
Model ST40A
s/n will advise
Condition; NEW Condition
Delivered and installed july 2020
low hours Less than 1900 hours

Machine was delivered and installed 3rd QTR of 2020 and has been
hardly used. Customer is lookng to sell due to limited work and
project loss.machine is available for immediate inspection. Machine

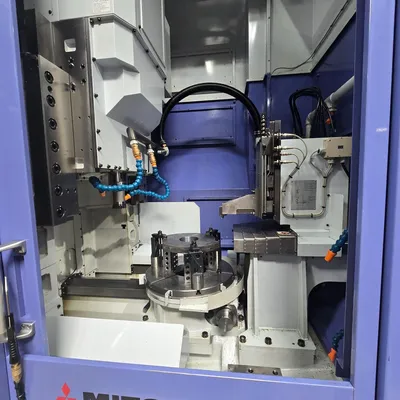

is equipped with all required features, Tailstock & Pinion support,
chip conveyor and all options. Machine wont last contact us today !!

Machine specifications for follow shortly:
-Maximum diameter capaity 18" / 450 mm Option
-Maximum DP/ module 3.175 DP / 8 mod
-Maximum work width 4.52" / 115 mm
-Maximum cutter stroke 5.31" / 135 mm
-Maximum helix angle + 45 deg
-Cutter stroke 30-600 SPM
-number of cuts 1-4
-Center distance from cutter Max/ Min 16.73" / -4.92"
-Maximum radial travel 21.65"
-Height of work table to spindle cutter 11.65" - 23.26"
-Table diameter 20.47"
-cutter spindle OD 4.33"
-saddle stroke length 7.87"
-Main spindle Motor 23 Hp (30 KW)
Machine dimensions 98" x 130" x 124" tall

machine is equipped with many additional options and features include:

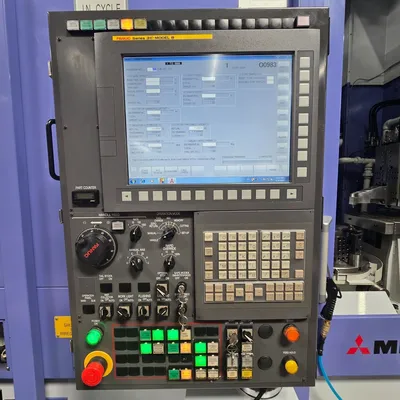

fanuc 31i-B cnc controls
18" diameter cutting option
guideless cnc feature
crowning and taper cutting
agma 14-15 class gears
0ver $15,000 of additional tooling , adaptors etc,
all drawings and documentation

this machine is basically a new machine and has tooling which
any job shop would love to have or production facility. a unique
opportunity to get a late model machine practically new with
immediate delivery!!! call now to inspect, seller would train as
well!!!!

contact us today to set up immediate inspection . deposit required to
hold machine if inspection can nt be done immediately for any reason

this is a unique offering of a like new condition machine with
Immediate delivery. contact rich Piselliel to set up an immediate
inspection and please follow up in writing intent to purchase.
contact rich at Rich@pisellient.com or call (704) 609-0766 for any
further info , pictures or videos required . inspect now
