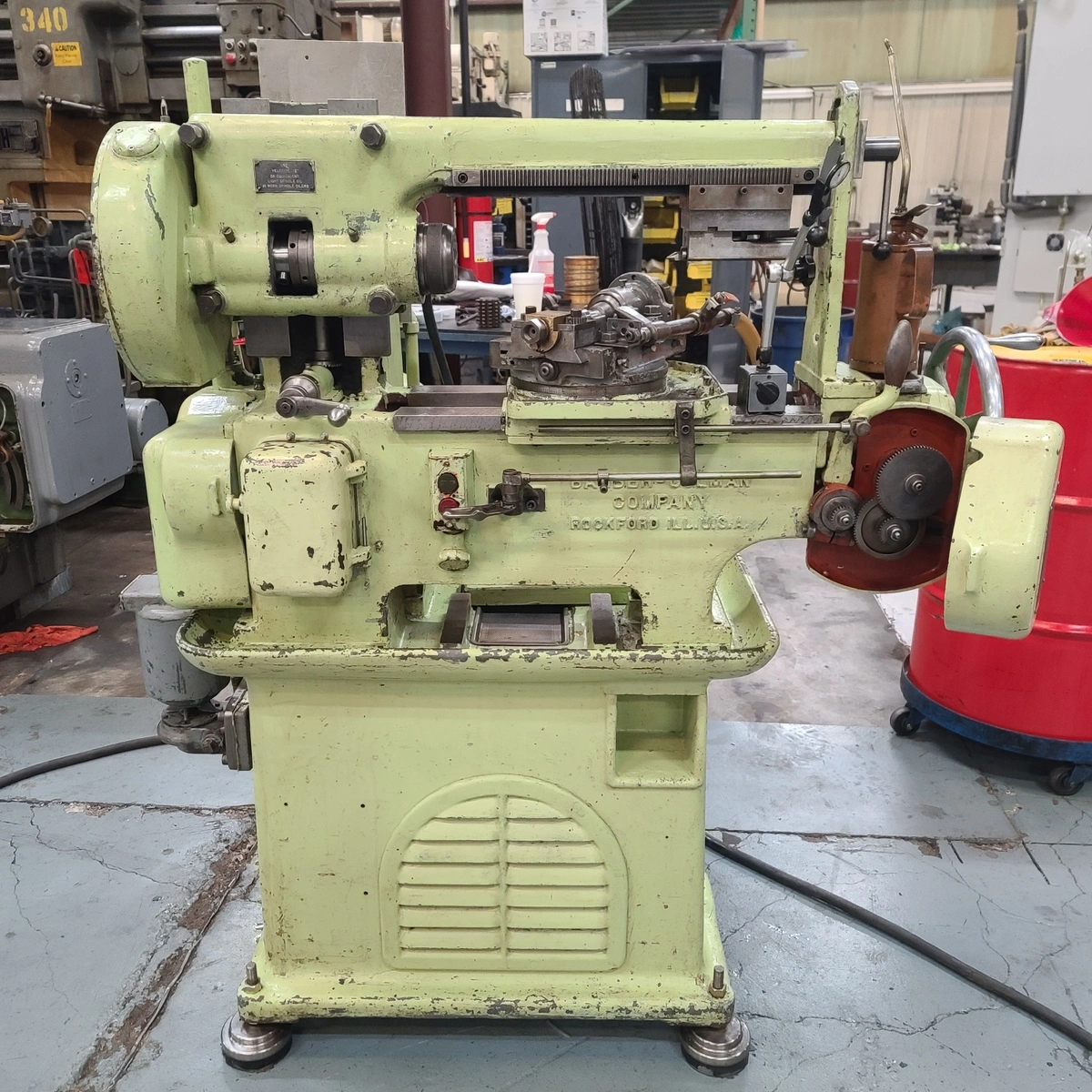

Barber colman Model 6-10 , 6" diameter , 11" part cut length, precision worm wheel A-frame style machine Bayonnete style center
Barber Colman Horizontal hobber
Model 6-10
A-frame style
s/n will advise
Machine Specifications are as follows:
MAXIMUM WORK DIAMETER: 6"
Maximum TRAVEL OF HOB CARRIAGE: 10-1/2"
MAXIMUM DIST. SPINDLE FACE TO TAILSTOCK CENTER: 15-3/4"
MAXIMUM DIAMETRAL PITCH, 1 CUT: 16 DP - 2" DIAMETER
MAXIMUM DIAMETRAL PITCH,1 CUT: 48 DP - 6" DIAMETER
MAXIMUM HOB DIAMETER: 2-1/16"
HOB SPEED: 133 - 533 RPM
WORK SPINDLE BORE: 1-1/32"
WEIGHT OF MACHINE: 3,500 LBS.
MACHINE IS EQUIPPED WITH:
Single Thread Precision Worm
Bayonet Center
Manual hob shift
Standard hob headÂ
Change Gears
1 Hob Arbor
220/440 powerÂ
Machine can be inspected under power in good mechanical condition at our
Statesville, NC. shop. visit www.pisellient.com for full quote
Contact us for any further information you require.
