Karats Model GSM-12N CNC gear shaper , 250 mm diameter x 70 mm stroke capacity w/ 180 position loader , new 2005

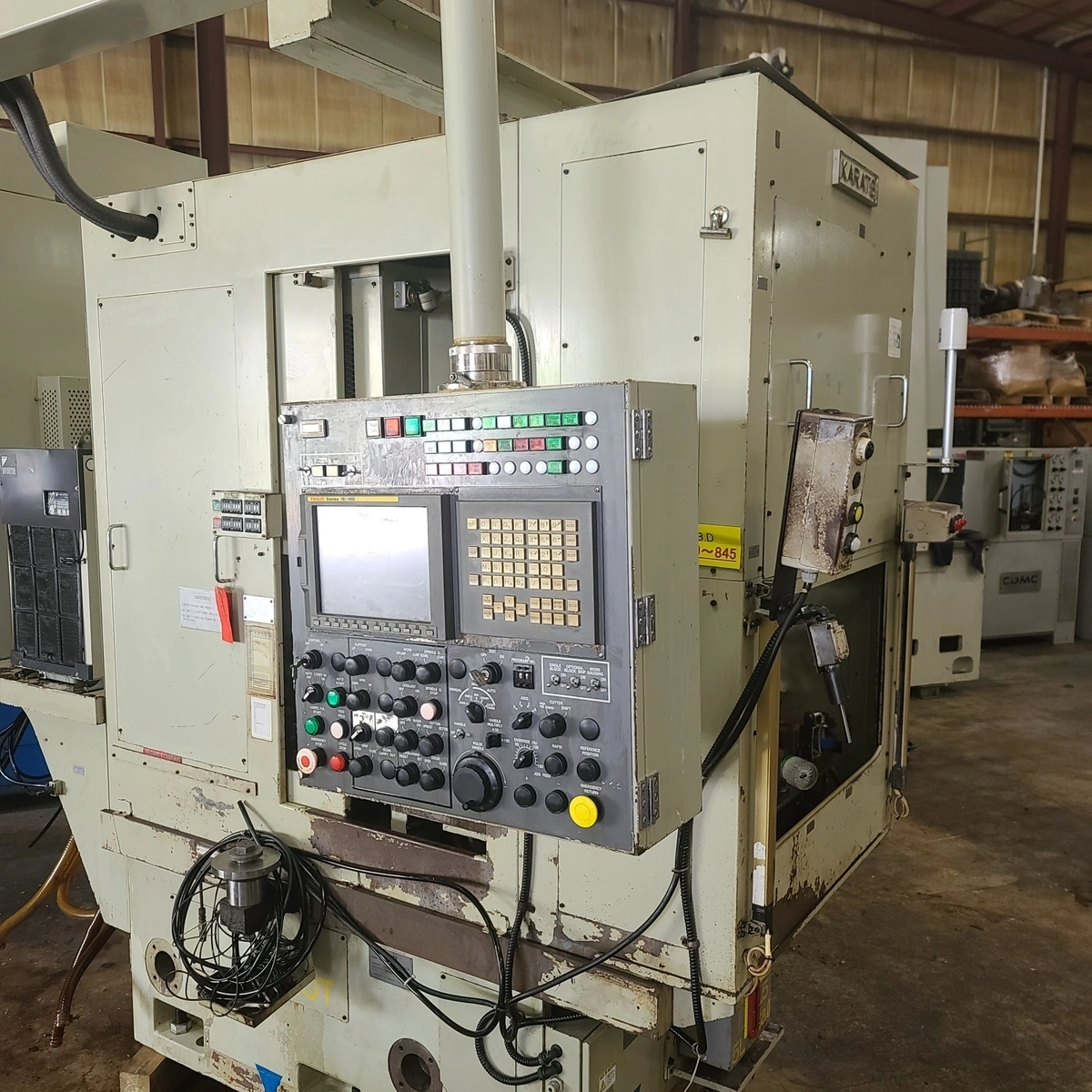

Karats vertical CNC gear shaping machine
Model GSM-12N
s/n 188
New 2005

this machine is a highly productive machine with a hydrostatic spindle
it is for large production runs for both automotice and motorcycle
production gearing . Machine is equipped with many features including
an auto load station for manually loaded or robot loaded parts into
this station

machine specifications are as follows :
Maximum Modul 4
Max Diametral pitch 6.35
Maximum width of gear face 50 mm 1.9685"
Max diameter pitch circle (External Gear) 180 mm 7.087"
Max diameter pitch circle (Internal Gear) 120 mm 4.7" + cutter diam
Max Helical angle (with optional guides) 45 degrees +/-
Minimum Helical lead of cutter 400 mm 15.748"
Max/Min center distance (spindle -Table ) 205 mm/ -60 mm
Max clearance height above table 310 mm/ 12.2"
Min clearance height above table 260 mm/ 10.236"

Max diameter of work table 250 mm/ 9.8425"
Max diameter of hole through work table 70 mm/ 2.7559"
Diameter of cutter spindle 90 mm/ 3.5433"
taper hole in cutter spindle 45 mm(1/12 taper)
1.7717"
strokes per min max 1500
number of cuts as required
main drive (cutter stroke) motors AC 5.5 kW
main power 220Volt
machine dimensions (135" Length x 75" width x 113" height)

machine is equipped with the following "
Fanuc 18 IM 4 axis cnc controls
Hydrostatic spindle
Oil chilling system
180 degree loader and loading station
hydraulic table clamping
pinion support and tailstock w/ center
chip conveyor
full enclosure
pendant control

This machine can be inspected in our NC warehouse with proper notice
its small footprint machine makes is an excellent production gear
cutting machine in a tight cell production. Contact us today to or
visit www.piselliEnt.com for more information and or request a formal
quote .
