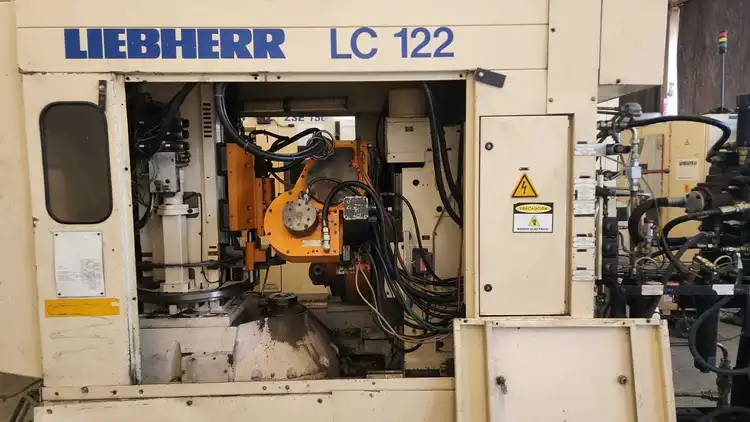

Liebherr LC-122 6 axis cnc high spped gear hobber. 125mm diameter capacity w/ 180 position loader new 2000

Liebherr 6 axis cnc vertical hobber
Model LC-122
s/n FN 0143 new 2000
excellent condition

this is a high speed vertical hobber for producing precision automotive
gearing . equipped with 180 position loader for fast load and unloading

machine specifications
PRODUCT SPECIFICATION
Liebherr LC 122 CNC Gear Hobbing Machine
• Max Wheel Diameter 125mm
• Diameter Of Hob 90mm
• Cutter Length Max 200mm
• Hob Turning Speeds 800 / 1200 / 1600 U/min
• Mlling Spindle Drive 8 kW
• Weight Of The Machine Capacity 9t
• Control Unit CNC
• Gear Width max 250mm
• Max Module 3
• Min Module 0,3
• Table Diameter 145mm
• Table Turning Speeds 240 U/min
• Distance Hob to workpiece 10 / 160 mm
• Milling Head swivel 45 Degree +/-
• Tangential Adjustment 180mm
• machine weight 9 tons

these machines have just been removed from customers plant
they can be inspected with proper notice . contact us today
or visit www.pisellient.com to receive a formal quote and
pricing.
