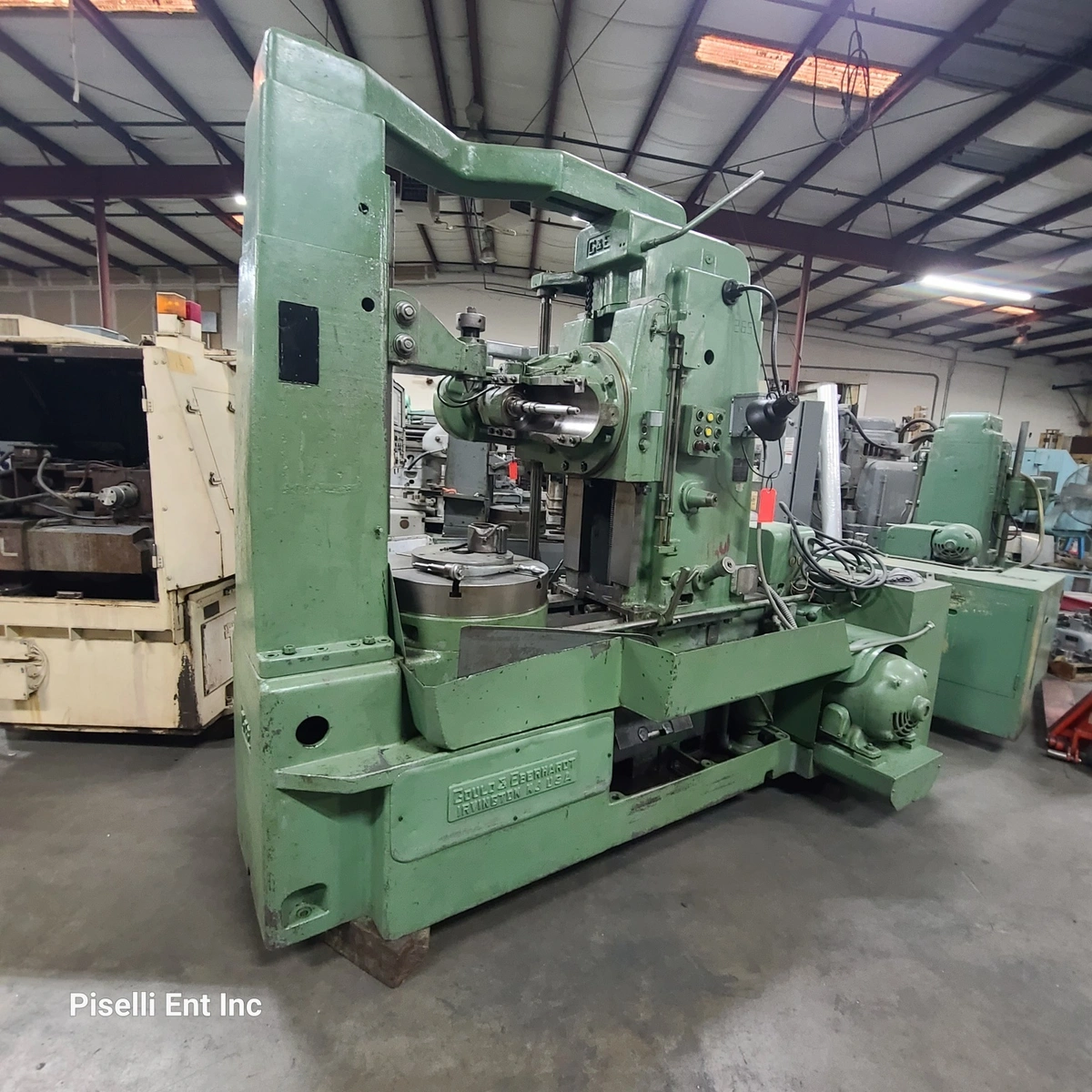

Gould & Eberhardt Model 36H gear hobbing machine , Tailstock, Excellent condition (265)
Gould & Eberhardt Vertical gear hobber
Model 36H
s/n 5700A1
Excellent condition
this machine was purchased from a gear House in Ohio . It is equipped
with the tailstock & tye-bar. machine can be viewed in our warehouse
with proper notice under power . Machine has been be gone through. It
is in very good condition.
machine specifications
Max Outside Diameter 36"
Max Face Length 18"
Max Rated Pitch 2.5 DP
Max Hob Diameter 7"
Table Diameter 24"
Dist, top of table to max tailstock height 30"
Weight of Machine 16,000 lbs
Machine is equipped withÂ
standard H Hob head
NO Differential mechanism on machine but can cut helical Non differentially
Hob arbors (1- 1/4")
Tailstock (swing -away style) w/ 30" clearance height
Push Button Controls
20/N w/ 72 teeth in worm wheel
Machine Guarding
Change gears
This machine can be inspected under power in our shop with proper
notice . contact us today at rich@pisellient.com or call 704 609-0766
or visit our website at www.pisellient.com to see more photos and
information .
Call to set up an inspection of the machine in our shop in NC!
