Barber Colman model 16-56 16" diameter x 56" cut length , 70" CC dual lead worm. C-Frame design, three jaw precision chuck, with 2nd chuck on back side of work spindle for additional clamping for larger shafts w/ 2.5" thru-hole chuck. Excellent condition!!

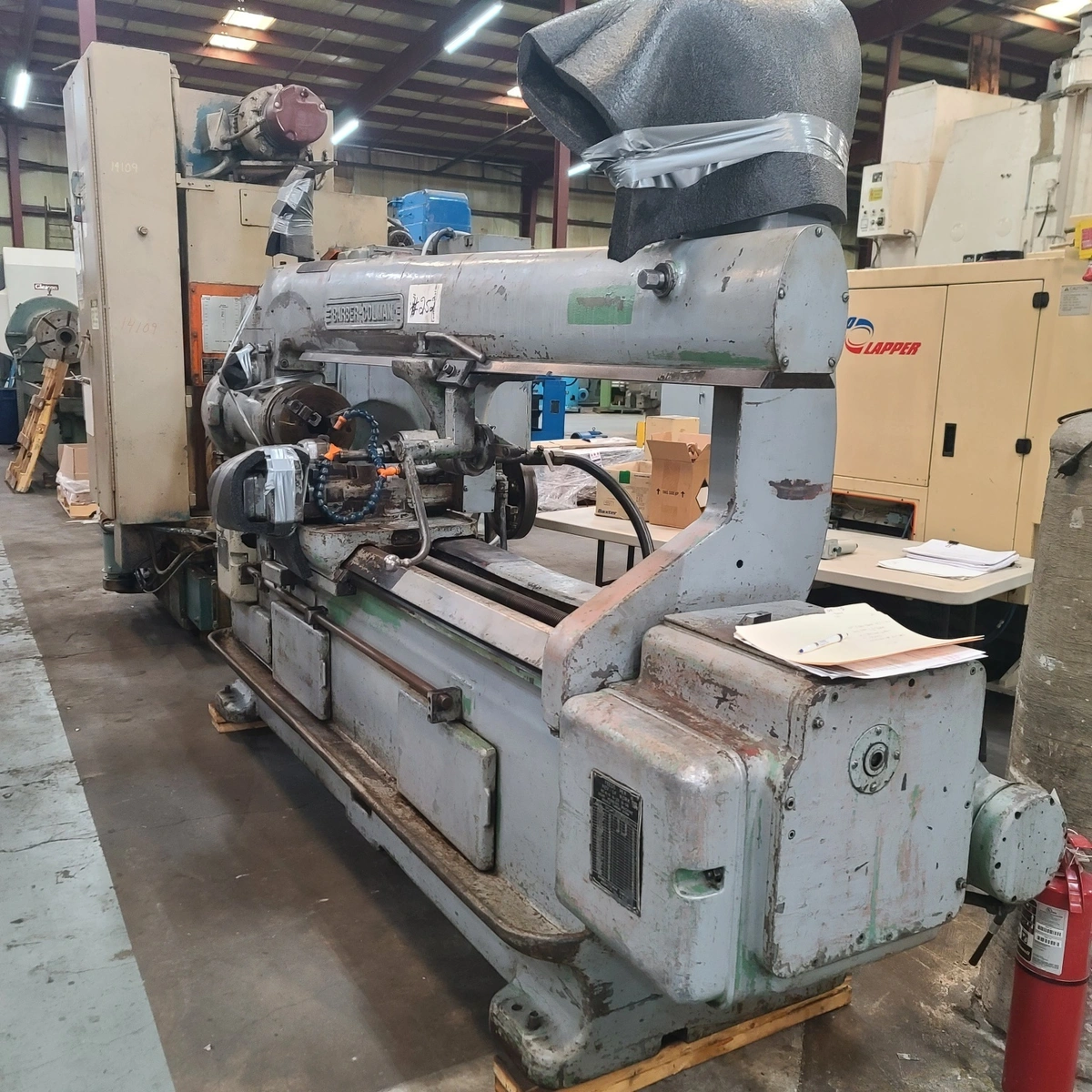

Barber Colman hoorizontal hobber
Model 16-56 C- frame style
s/n N/A
Excellent condition
MACHINE SPECIFICATIONS:
* Max work diameter 16"
* Max DP in steel 6 DP
* Max hob length 5"
* Max hob diameter 5"
* Max travel of hob carriage 56"
* Max swivel angle setting 45° Left or Right
* Max distance work spindle - tailstock 70"
* Max hob speed 75 - 425 rpm
* Max hob shift travel 3.5"
* Index worm gear diameter 12.7"
* Number of teeth 5 - 300
WORK SPINDLE:
* Overall diameter 7.125"
* Bore diameter 4.1875"
* Bolt circle diameter 6.25"
MOTORS:
* Main drive motor 7.5 HP
* Hydraulic pump 1 HP
* Lubrication motor 1/20 HP
* Rapid traverse motor 2 HP
* Coolant pump motor ½ HP
* Overall size 89" x 76" x 84"?
* Net weight 7,600 lbs
STANDARD EQUIPMENT:
* 10" 3-Jaw chuck w/ 2.5" hole thru spindle
* 10" 3-Jaw chuck on back of work spindle
* Special 70" between centers option
* 1-1/4" hob arbor diameter -
* Rapid traverse
* C frame style
* Double Thread Index Worm
* Manual hob shift
* Automatic lubrication
* 1 set up of index gears change gears
* Push button controls
* 15/N index
* Operator manual
* Electrics 220/440 volts, 3 phase, 60 cycles.
please visit our website at www.pisellient.com to see this and other
machines in stock . we have just about everything you need in gear
machinery .
contact rich Piselli at rich@pisellient.com for more information or
formal quote and pricing on this machine
thank you
