Barber colman model 6-10 Gear hobber 6" diam x 10" length, single thread precision , c-frame, v-ways , bayonette center , late model machine Excellent condition, inspect in our shop under power and gone through!!

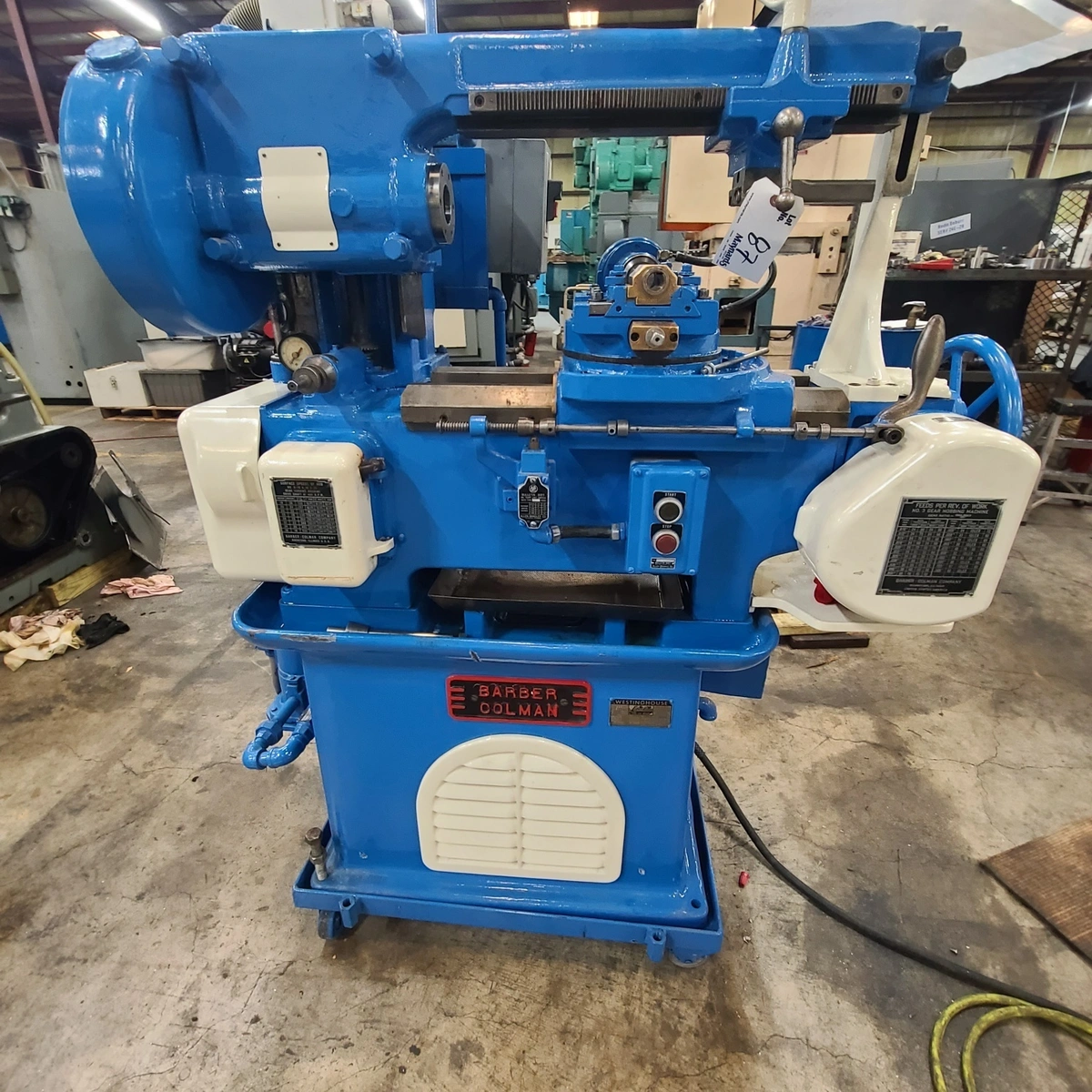

Barber colman horizontal hobber
Model 6-10 c-Frame style
s/n 4409
excellent condition gone through
Machine has been cycled and gone through by our technician and machine
can be inspected under power in very good operating condition. it is a
late mode c-frame style machine with a precision single thread worm.
machine specifications are as follows:
MAXIMUM WORK DIAMETER: 6"
MAXIMUM TRAVEL OF HOB CARRIAGE: 10-1/2"
MAXIMUM DIST. SPINDLE FACE TO TAILSTOCK CENTER: 15-3/4"
MAXIMUM DIAMETRAL PITCH , 1 CUT: 16 DP - 2" DIAM
MAXIMUM DIAMETRAL PITCH ,1 CUT: 48 DP - 6" DIAM
MAXIMUM HOB DIAMETER: 2-1/16"
HOB SPEED: 133 - 533 RPM
WORK SPINDLE BORE: 1-1/32"
WEIGHT OF MACHINE: 3,500 LBS.
MACHINE IS EQUIPPED WITH:
Precision Single Thread Worm
Bayonet Center
V- ways
Change Gears Misc
1 Hob Arbor
Books and manuals
Machine can be inspected under power in good mechanical condition with proper
Notice in our Statesville NC plant! contact us to set up an inspection today or
visit our website at www.piselliEnt.com to view similar machines or all our gear
machine inventory
