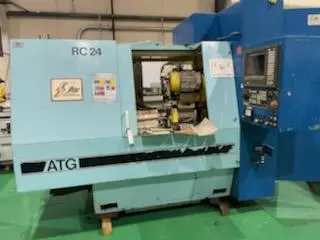

Star Model ATG -6AC 6 axis cnc tool & Cutter grinder for sharpening tools in many configurations . This machine was grinding Gun Drills prior to it being sold to our group . we are checking on to see if its capable and equipped to sharpen hobs and has software for it . Machine is in very nice condition !!
Star cutter sharpening machine
Model ATG-6AC
s.n 38134
new approx 1998
machine can be inspected under power with proper notice . contact us today
to learn more about its software options
Machine general capacities are:
STAR CUTTER ATG - 6AC 6 AXIS TOOL AND CUTTER GRINDER S/N 38134
GRINDING SPINDLE MOTOR --------- 5HP AT 3600 RPM
GRINDING WHEEL ---------- DIAMOND OR CBN
GRINDING WHEEL DIAMETER ------- 6"
MAX GRINDING WHEEL SPEED STD ------ 1800 TO 5275 RPM
CAPACITY OF MACH WORK PIECE DIA ---------- 0.12 TO 1.5"
WORKPIECE LENGTH: BETWEEN CENTERS ---------- 27"
COLLET & BUSHING ---------- UNLIMITED
LINEAR AXIS TRAVEL:
W-AXIS ---------- -1.50 TO 1.50"
X-AXIS ---------- -2.218 TO 6.1875"
Y-AXIS ---------- -0.5625 TO 4.0312"
Z-AXIS ---------- -10.75 TO O.80"
ROTARY AXIS TRAVEL
A-AXIS ---------- 0 TO 360 DEG.
B-AXIS --------- 0 TO 90 DEG.
COOLANT PUMP MOTOR ---------- 3HP 3600 RPM
COOLANT TANK --------- 112 GALLONS
COOLANT FLOW --------- 22 GPM --- 30 PSI
SLIDE LUBRICATION RESERVOIR ---- 12 PINTS
SLIDE LUBE OIL -------- MOBIL VACTRA #2
This machine is equipped with the following
GE Fanuc model 160I cnc control
attached electrical panel
Coolant tank and filtration
books and manuals
full enclosure
Please visit our website to receive formal quote on Line at
WWW.PiselliEnt.com or contact rich piselli at 704 609-0766 to
learn more about this machine and its options.
