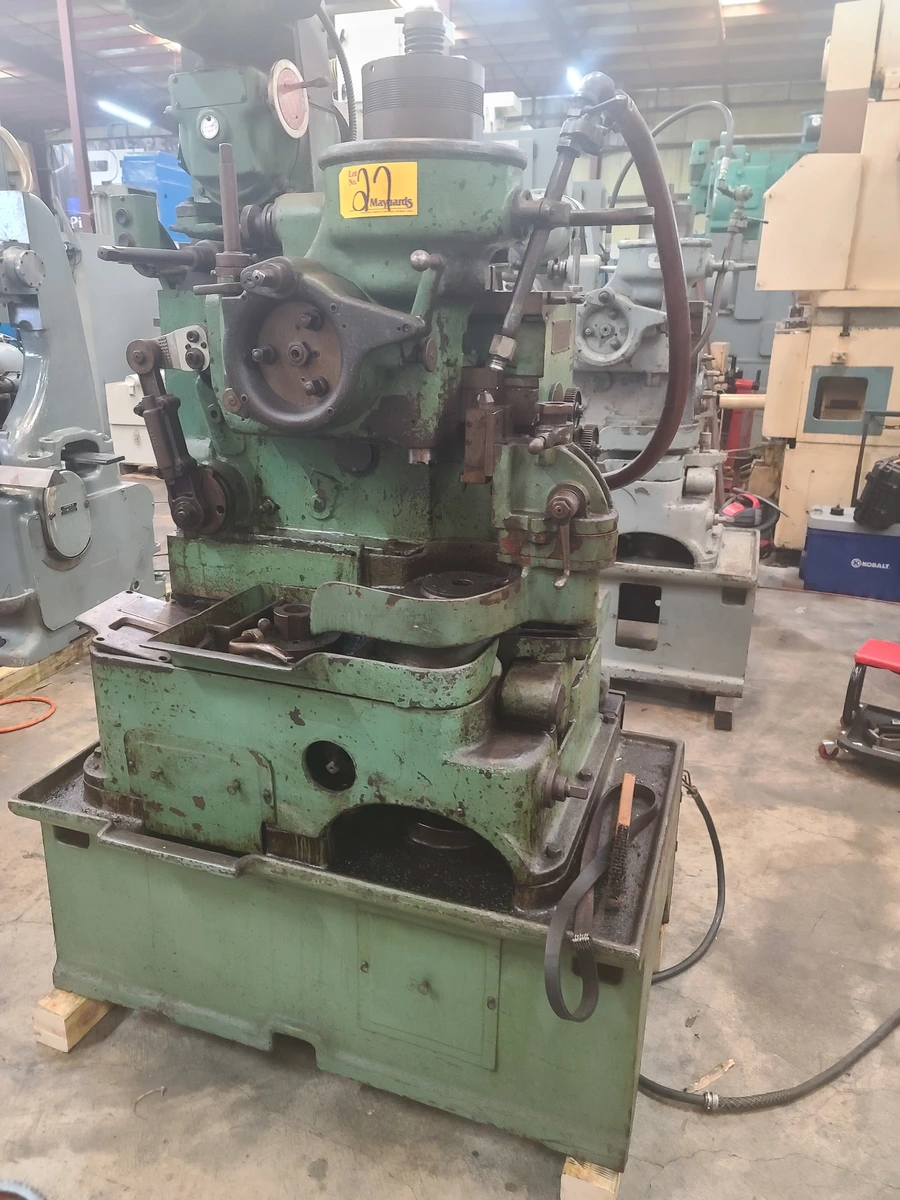

Fellows model 72 gear shaper , 1.5" stroke , 7" max diam, pinion support , 5" riser , good condition !
fellows 7 type vertical gear shaper
Model 72
s/n 21614
w/ special pinion support tailstock
Machine has been gone through and checked , the machine can be inspected
in our plant under power .
Machine corresponds to the following specs:
* Max. Pitch Diameter Spur External 7"
* Max. Pitch Diameter Helical External 7"
* Diametral Pitch, Spur Gears 5/7DP
* Diametral Pitch, Helical Gears 6DP
* Face Width Max 1.5"
* Helix Angle Degree, Max 45 Degrees
* Cutter Strokes Per Minute, Range 200-450 SPM
* Machine Dimensions 3'9" x 3'5" x 6'6" H
* Machine Weight 3,300 lbs.
MACHINE IS EQUIPPED WITH THE FOLLOWING:
* Hollow Spindle
* 5" riser assembly
* Pinion support & tailstock
* Variable speed drive
* Assortment of Change Gears
* Operators Manuals
Machine can be inspected under power with proper notice
we can set up machine for your requirements . contact us
today at www.pisellient.com for more info & photos and
request a formal quote on line!!!
or contact Rich at Rich@PiselliEnt.com
