Drake Mfg CNC ID Thread Grinder , (J&L Model H) with Late model Fanuc OI-TB cnc control , excellent condition

Drake MFG CNC Internal thread grinding machine
Retrofit of a J&L model H Internal
s/n 05681
w Fanuc Model OI-TB cnc controls
Number of CNC axis ____

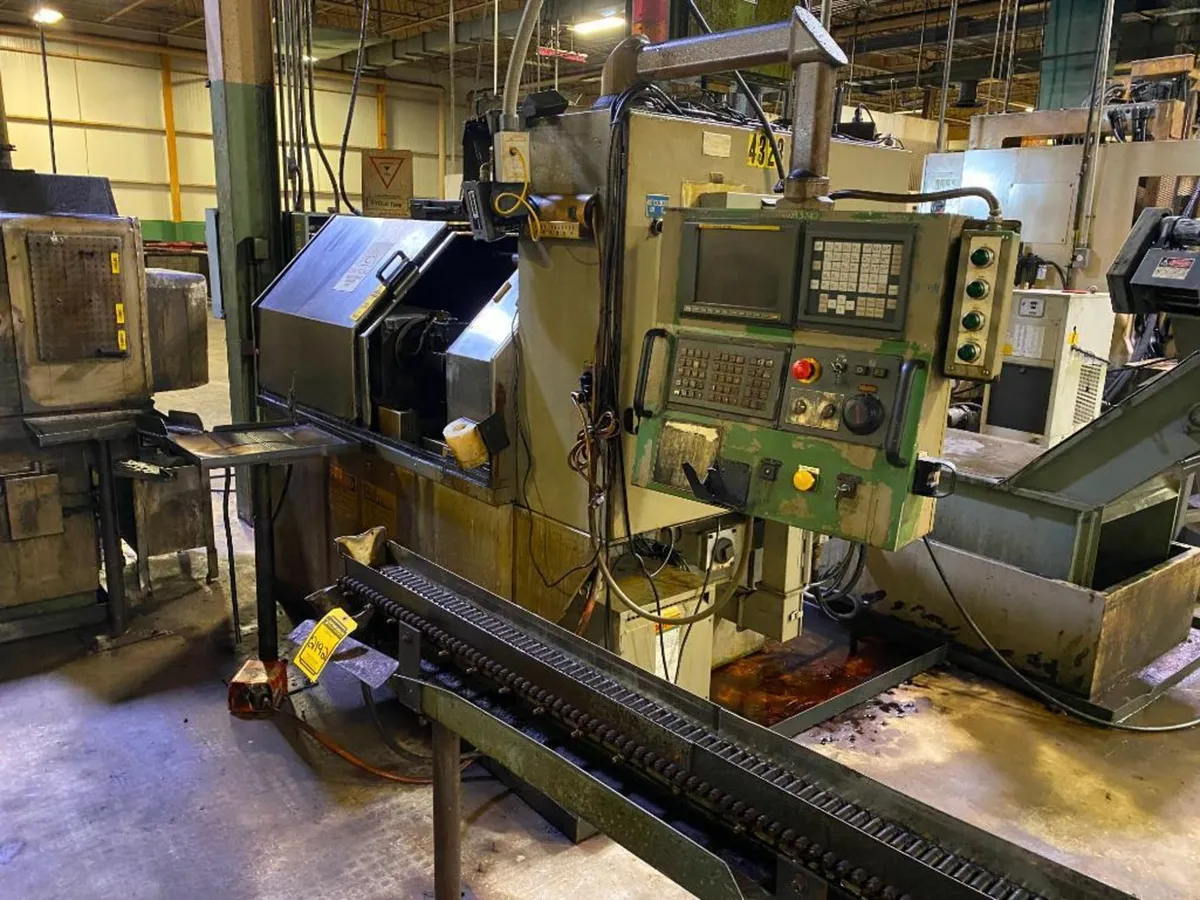

This Drake CNC internal Thread Grinding machine was purchased from a
production medical component MFG . the machine is equipped with later
model Fanuc controls. Machine is coming from running service but has
been disconnected from service and has been delivered to our Statesville
NC Facility

the machine looks to be a J&L model H internal machine recontrolled by
Drake mfg with a crush roll type dresser . the machine was suitable for
high production of internal grinding threads of ball screw steering nuts
also used for internal threads having a radius or gothic thread form and
lead in excess of 3/16"

machine H specs
Max thread diameter 4"
Min thread diameter 1"
Max thread length 5"
Max work table travel 7"
Max headstock adj. on work table 6"
Max swing over table 9"
Max helix adjustment -R.H. or L.H. 10"
work speed range 57- 230 R.P.M
machine weight 8,000 lbs

machine is equipped with the following
Fanuc Oi-TB cnc controller motors and drives
Pendant control
dressing unit (crush Roll type)
stand alone eletrical cabinet
full guarding
Mist collection
work holding fixture as photographed
ID spindle attachment
coolant filtration unit

contact us today for further info and specifications, as the website will
be updated as information is gathered . if you know the machine , Contact
us so we can learn more to assist in our technical details. Visit our website
at WWW.PiselliEnt.com

thank you
Rich Piselli 704 609-0766
