Fellows Model 36-8 Z-1 Gear shaper , w/ 24" throated riser , 8" stroke , large hole in spindle, 44" max swing diameter, Excellent condition , Many more features!!

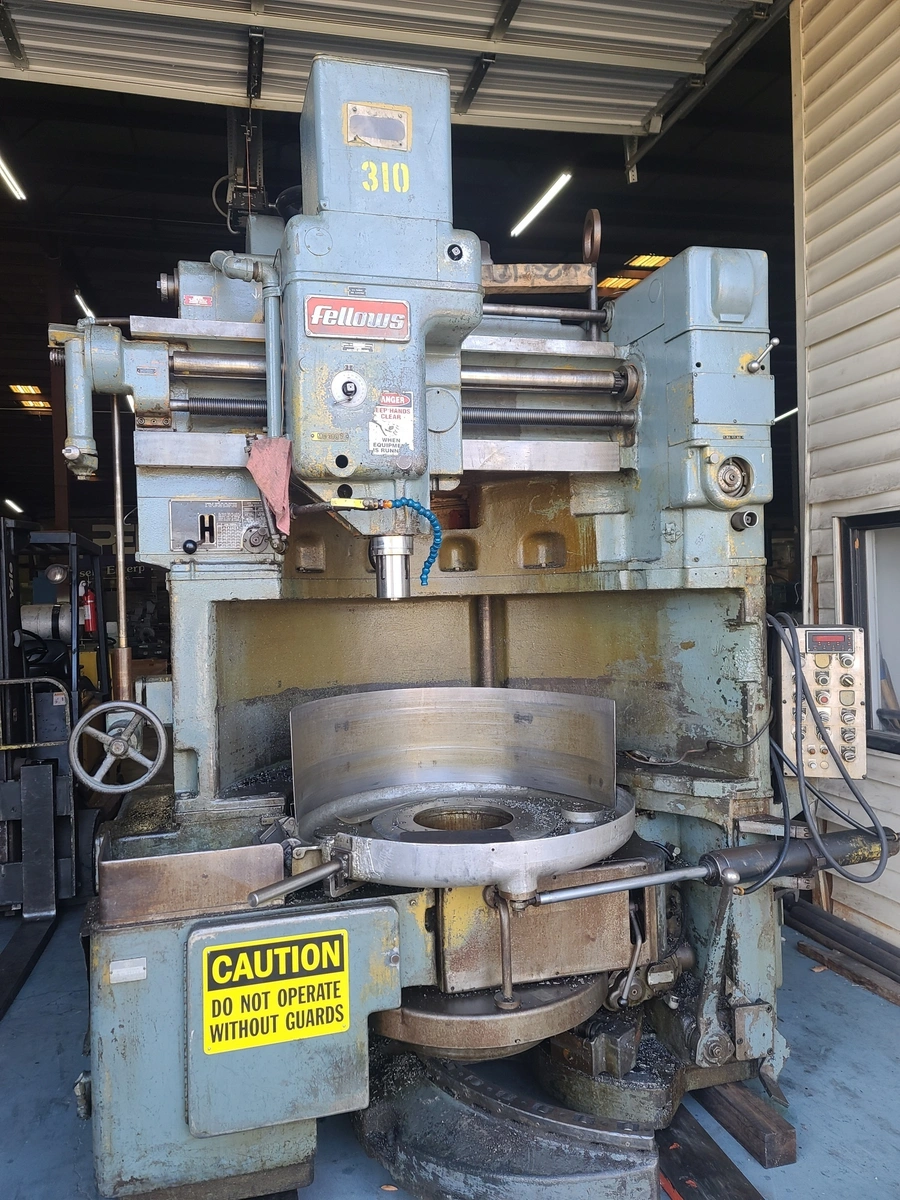

Fellows special gear shaper
Model 36-8 Z-1
s/n 35171
w/ 28" throated riser w/ 56" swing diameter
this machine is the special 8" stroke Z style machine with a large
whole in the spindle for shafts or tall parts. it has a special throated
28" riser allowing a swing of almost 56" diameter in the throat!!
Machine Specifications are as follows:
Maximum swing diameter in throat.........................................56"
Maximum Diameter capacity................................................40"
Maximum stroke capacity...................................................8"
Maximum Height above Table...............................................31"
Maximum part swing Diameter..............................................42"
Diameter of table........................................................36"
Bore in the table........................................................12"
Depth of bore in the table................................? Need to confirmĀ
Machine Voltage.......................................................480 v
Height of Machine.....................................................11' 4"
Weight of machine.................................................21,000 lbs
Machine is equipped with the following:
Large Bore in the work spindle (12" diameter)
Cutter Elevation Option
5" Heavy duty spindle
28" high riser assembly allowing 33" clearance height & 56" swing
Extended cutter housing for 8" stroke
Extended 6" Cutter adaptor w/ 4" diameter
air Table assistĀ
Misc change Gears
Misc tooling
This machine was specially Designed by fellows for large hubs with internal
gearing down deep within the part. The large bore in the table feature
allows for dropping large parts down through the table and be able to swing
around under the spindle and be able to cut both internal or external gears
or splines on a variety of parts that are usually tough to MFG on standard
fellows equipment.
This machine shows no internal wear and has been extremely well maintained
coming from a high quality aerospace facility!! contact us today to set up
an under power inspection at your earliest convenience. Also visit our
Website for more of our featured inventory selections at www.PiselliEnt.com
