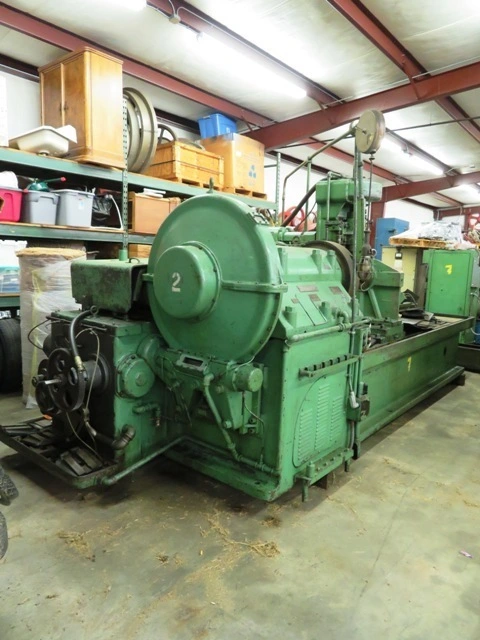

Fitchburg Horizontal pinion hobber , 40" diameter x 104 Length, 2 DP, tailstock, steady rests, etc. excellent condition under power

Fitchburg Horizontal Spline & Pinion Hobber
For Producing High Accuracy Pinions and Shafts
***U.S. Naval Surplus***

Machine is specially designed for cutting large shafts for both splines
and helical gears

Max DP.......................................1-1/4"
Max OD Hob...................................8"
Max outside Diameter of Workpiece............40"
Max Face (Length of Cut).....................82"
Max Distance Between Centers.................104"
(Journal Centers)
Index Wheel Diameter.........................36"
Hole in Spindle..............................5"
Floor Space (approx).........................9' x 24'
Approximate Weight...........................40,000 lbs

Equipped with:
*Differential
*Tailstock w/ center
*Pendant control arm
*24" Face plate (6 T-slots)
*21 Face plate
*(2) Journal Supports
*12" Pot Chuck Fixture
*Hob Arbors (2-1/2")
*Change gears
*Hob Arbors
* Additional tooling

This machine has been purchased from Customer facility , the machine
has been recently disconnected for removal . Lots of additional tooling and
change gears for this machine . visit www.pisellient.com for more information
, photos or formal quotation. special price for machine prior to removal !!
