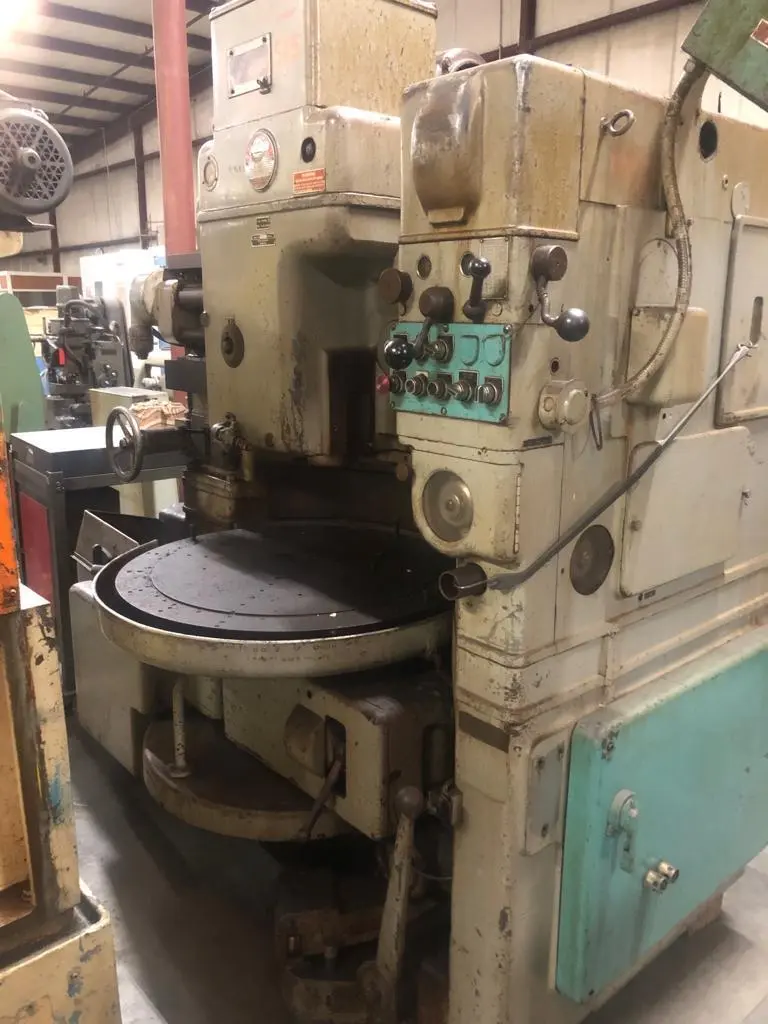

fellows model 36-6 vertical gear shaper , 40" capacity , 4" riser , 5" spindle, Cutter elevating. s/n 33542

Fellows Gear shaping machines
Model 36-6
S/N 33542
equipped w/ 4" Riser

This fellows model 36-6 machine will be gone through and adjusted as
required, entire machine has already been inspected and workload required is
understood for customer to receive a good running machine; 2 weeks of work
and another week for cleaning and painting for a total of 3 weeks from
receipt of order and down payment.

MACHINE SPECIFICATIONS:
* Maximum Pitch Diameter External........................................40"
* Maximum Pitch Diameter Internal........................................36"
* Maximum Workpiece & Fixture Diameter...................................42"
* Maximum Face Width......................................................6"
* Stroke Length...........................................................6"
* Maximum Helix Angle................................................45 deg
* Maximum Diametral Pitch
-For Spur Gears........................................................3 DP
-For Helical.........................................................4/5 DP
* Work Spindle Bore Diameter..........................................5.875"
* Twelve (12) Stroking Speeds, w/ranges..........................18-300 spm
* Machine Dimensions......................................92" x 60" x 100"H
* Machine Weight, Approx.........................................17,000 Lbs

Machine Is Equipped With:
4" Riser Assembly
5" spindle diameter
Cutter Elevating option
1 Cutter Adapter
36" table plate
change gears
operators Manual

Machine(s) can be inspected under power with proper notice. Additional
adaptors can be purchased if required. Send us your part prints to confirm
what you require on this machine. Please note above that this machine will
require 3 weeks to complete from receipt of order. Standard silver white or
machine gray colors are available for this machine.
