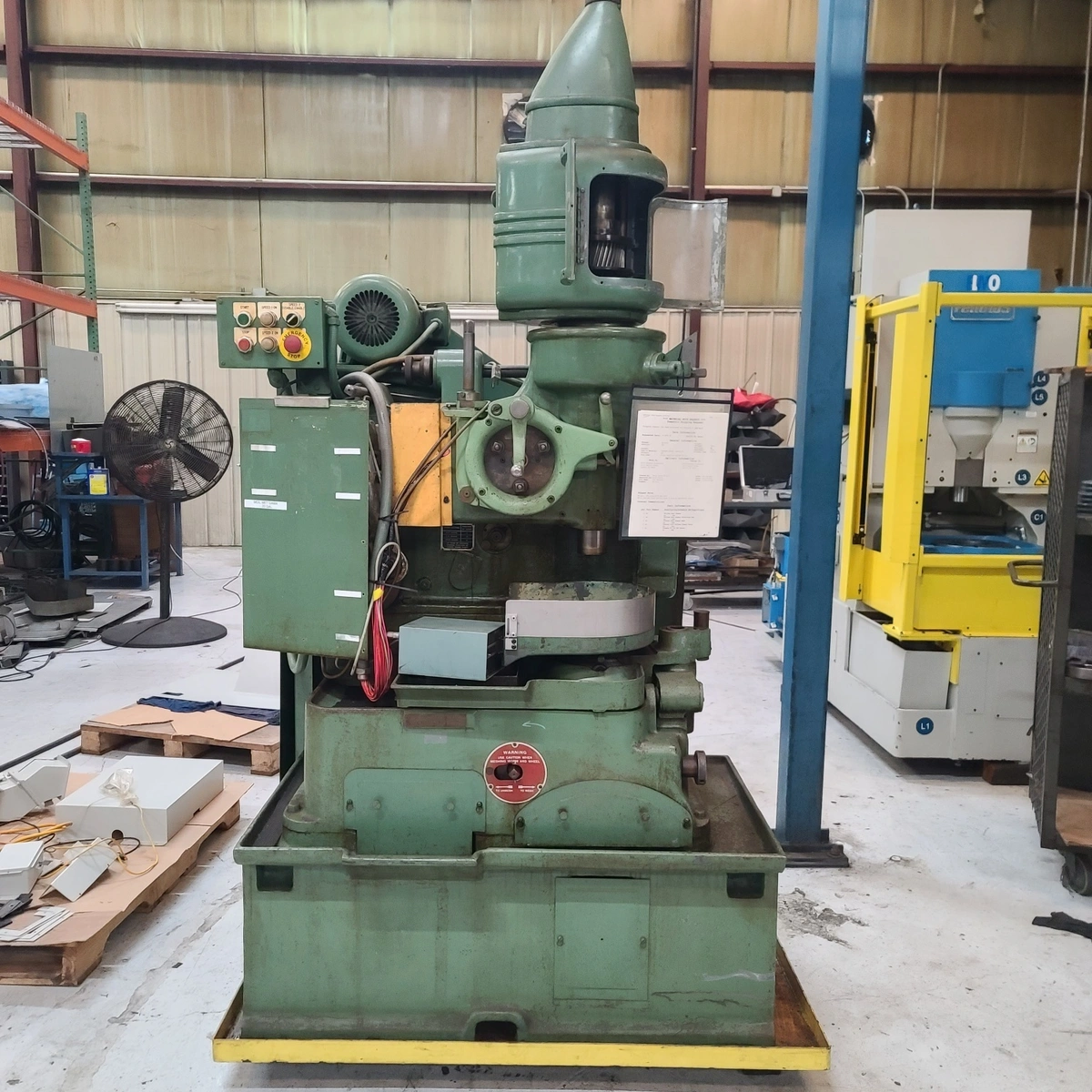

Fellows model 7125A special guideless Vertical gear shaper w/ Brevettato Elicoidal Head, 4" riser , Absolute scale s/n 29871
GEAR SHAPERSFellows model 7125A special guideless Vertical gear shaper w/ Brevettato Elicoidal Head, 4" riser , 2-7/8" diameter spindle , 2" stroke , Absolute scale , acurite R/O s/n 29871
Fellows Adjustable Guide Helical shaping machine
Model 7125A s/n 29871-3511 Special
From Gear Lab prototype shop in Michigan
This special machine was designed to make helical internal and external
gears with a special designed Adjustable sine-bar style head for gears
from 0-60 degrees. A great machine for a design shop or prototype trials
before production . Contact us today for more info !!
Machine specifications are as follows:
*Max Pitch Diameter External..........................................7"
*Max Pitch Diameter Internal......................................5-1/2"
*Face Width External..................................................2"
*Max Face Width Internal..............................................2"
*Max Diametric Pitch -Spur Gears......................................6
*Max Diametric Pitch-Helical........................................6/8
*Max clearance height above table....................................10"
*Max Helix Angle With special Head..........................0-60 degrees
*spindle diameter.................................................2-3/4"
*Table Diameter...................................................5-1/2"
*Table Bore Diameter..............................................2-1/8"
MACHINE IS EQUIPPED WITH THE FOLLOWING:
Special Mechanical Helical guide Mfg by Brevettato in Italy
4" riser assembly
2-3/4 spindle diameter
Internal attachment extension arm
Hollow spindle
2 speed Variable speed Drive Motor
2-cut Cam? (TBD)
Hydraulic Back off
Trabon Forced lube system
Safety switches on covers
misc change gears
Misc tooling
Machine can be inspected in our Statesville facility with proper notice.
Machine will be tested under power and gone through by our service techs.
Machine backlashes will be adjusted per factory processes to bring machine
back to original accuracies or best possible condition . Machine will be
final tested prior to shipping.
Contact us today to inspect this machine at your earliest request
contact rich Piselli for more info on this machine at rich@pisellient.com
or visit our website at WWW.PISELLIENT.COM for this and other Gear Machines.
*Inspect all machines under power in our Statesville, NC Plant!!
