Barber Colman model 6-10 C-frame machine , 6" diameter x 10" part length , triple thread commercial worm s/n 4420

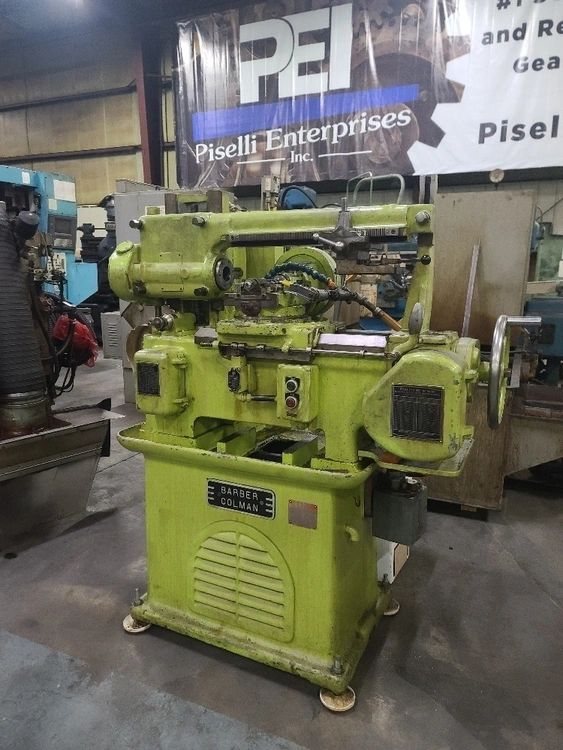

Barber - Colman Horizontal Gear Hobbing Machine
Model 6-10 s/n 4420

This Barber-colman machine possesses almost all the finer options and later
style design the OEM had to offer at the time of its manufacturing.
The C-Frame style machine and V-way construction should give you a quality
spline or gear thru-out its entire service life.

Machine Specifications are as follows:
MAXIMUM WORK DIAMETER:....................................................6"
MAXIMUM TRAVEL OF HOB CARRIAGE:......................................10-1/2"
MAXIMUM DIST. SPINDLE FACE TO TAILSTOCK CENTER:......................15-3/4"
MAXIMUM DIAMETRAL PITCH, 1 CUT:.........................16 DP - 2" DIAMETER
MAXIMUM DIAMETRAL PITCH,1 CUT:..........................48 DP - 6" DIAMETER
MAXIMUM HOB DIAMETER:................................................2-1/16"
HOB SPEED:....................................................133 - 533 RPM
WORK SPINDLE BORE:...................................................1-1/32"
WEIGHT OF MACHINE:................................................3,500 LBS.

MACHINE IS EQUIPPED WITH:
Triple Thread Standard Worm
Bayonet Center
Manual hob shift
Standard hob head
Change Gears
1 Hob Arbor
220/440 power

Machine can be inspected under power in good mechanical condition at our
Statesville, NC. shop. Contact us for any further information you require.
Or visit our website at WWW.PiselliEnt.com and request a formal quote on
Line or contact rich piselli at Rich@pisellient.com
