Fellows Model FS400-125 CNC Gear shaping machine , Rebuilt and Remanufactured several years ago , good running condition inquire ! inspect under power

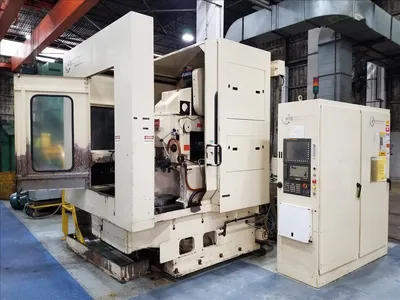

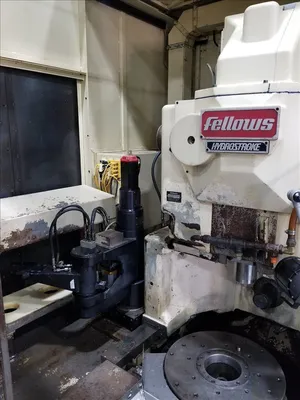

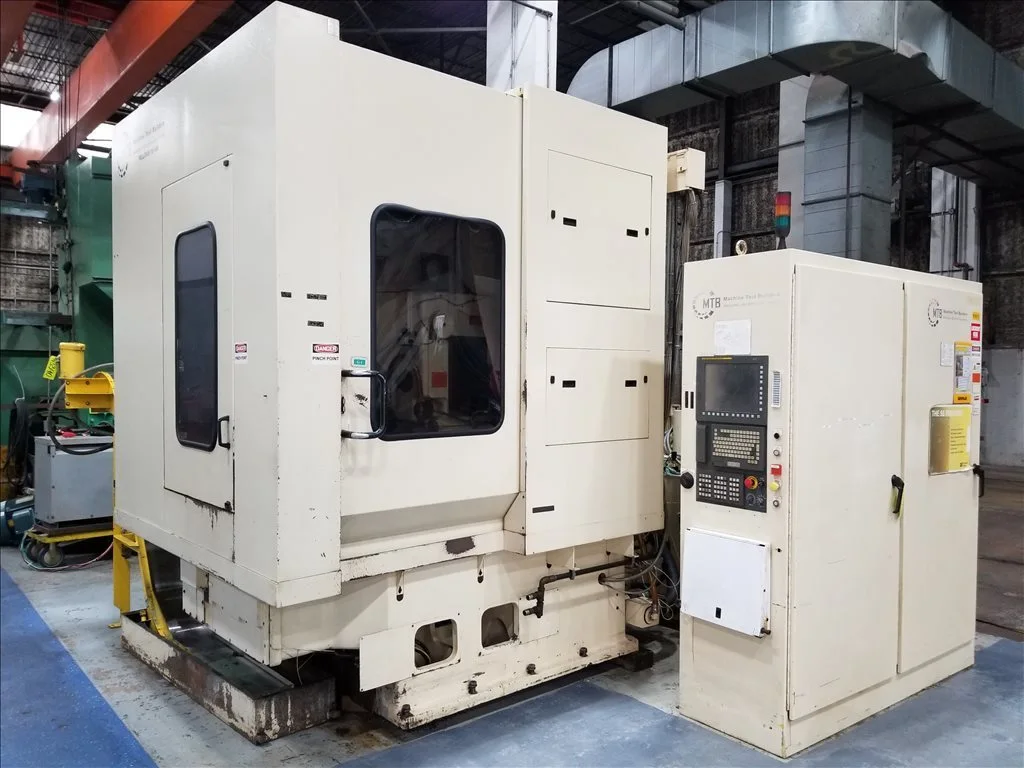

Fellows CNC Hydrostroke Gear shaping machine
Model FS400-125
s.n will advise
Rebuilt & remanufactured several years ago
SPECIFICATIONS:
This machine had original controls replaced with GE Fanuc 31i
controls, and remanufactured to original manufactures standards By
MTB.
MACHINE SPECIFICATIONS:
Max pitch diameter (External) 15.7"
Max pitch diameter (Internal) 15.7"
Max face width 5"
Maximum Diametrical Pitch 3.5 DP
Stroking Speeds 20 to 1000 SPM

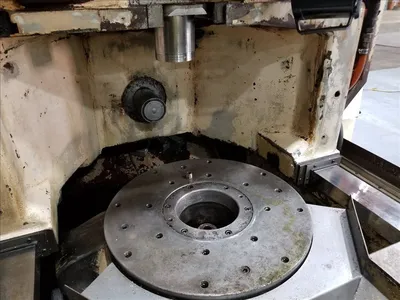

Worktable Diameter 20"
Max dist. under cutter spindle to table 17''
Spindle Diameter 4.13"
Max spindle travel 6.7"
Machine Net Weight, Approx 20,000 lbs
Dimensions (L x W x H) 12' x 7' x 8'
Electrical System updated when remanufactured :
* Motors for all axes to be replaced with comparable Fanuc motors.
* Fanuc 31i Control

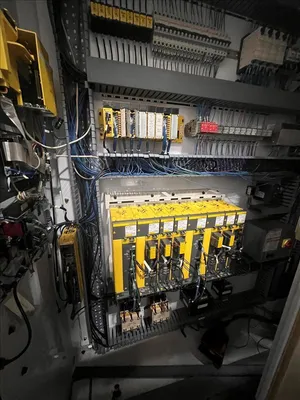

* New electrical panel with pendent arm
* 480 Volt, 60 hz, 3 phase

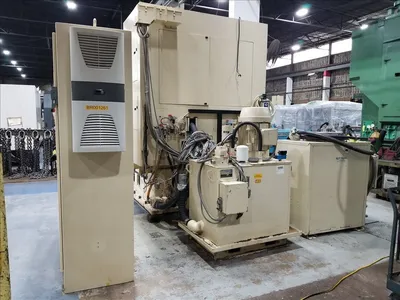

* air condition system
Control Features:
* Fanuc 31i controller
* Color CRT
* The CNC will control the following axis:
- C Axis work table rotation
- X Axis work table infeed
- B Axis cutter spindle rotation
- Z Axis spindle positioning
-W Axis stroke length
- A Axis cutter spindle speed
* CNC Controller has Macro screens for "operator friendly" question and
answer setups.
* Custom programming available based on customers requirement at additional
cost.
additional tooling and fixtures:

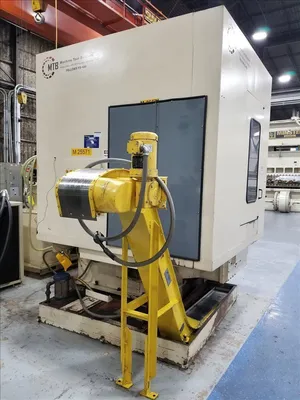

- machine is equipped as photographed
Runoff Criteria:
* To be determined if any
Installation and Training:
* This price includes the services of a factory service engineer to assist
customer in set-up of machine in the US only for 2 days
Warranty:
* Machine is sold in an as/is condition , no warranty given
Validity:
* This quotation is valid for 30 days and subject to availability
Payment terms:
100% down prior to removal by wire transfer
contact rich at piselli ent inc for more information or to set up an inspection
we appreciate your interest in our equipment . visit www.pisellient.com
for more information or to received forman quote on line, rich@piselliEnt.com
