Fellows Model 645A gear shaper , 18" max diameter , 5 " stroke , 10" riser, 16" clearance height, hollow spindle , Rebuilt Excellent s/n 32997-461

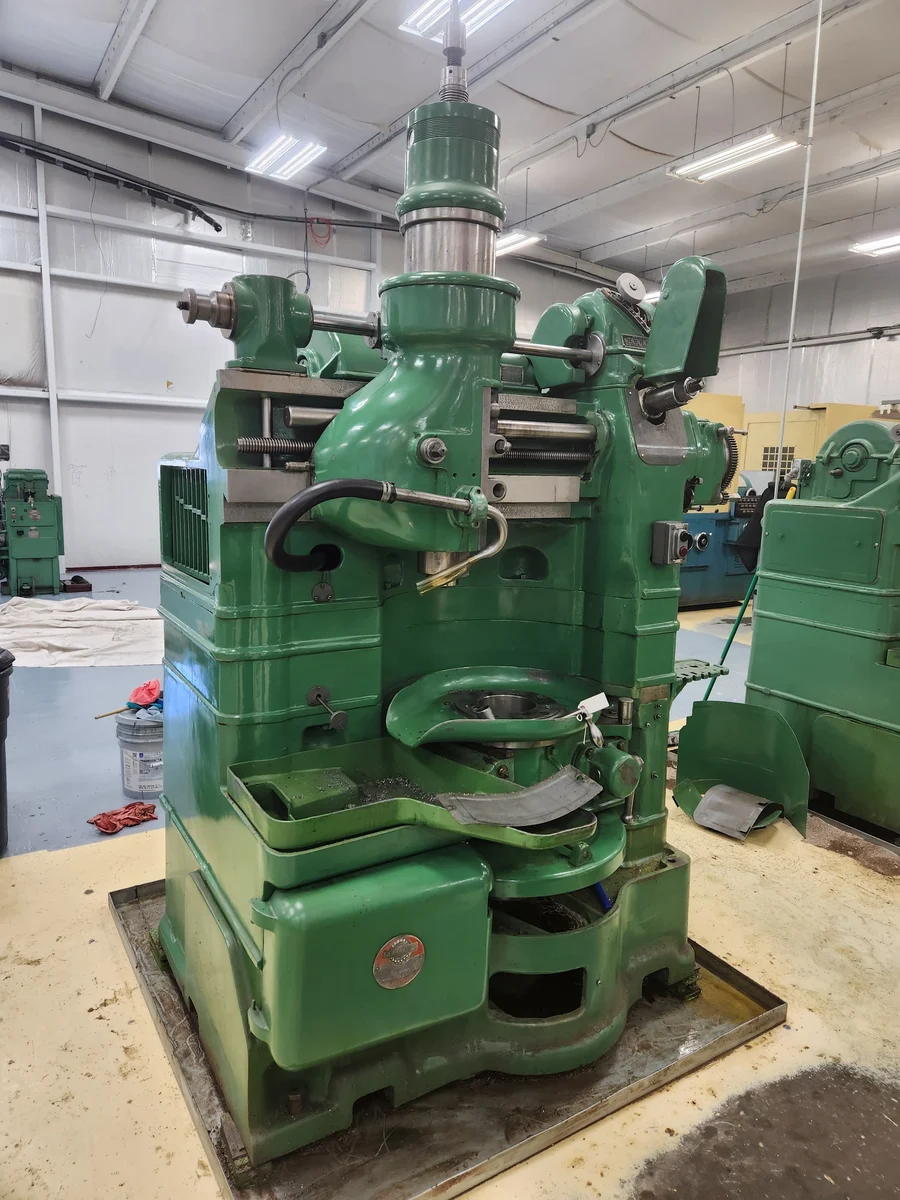

Fellows RE-MANUFACTURED GEAR SHAPER
Model 645A5
s/n 32997-461
EXCELLENT CONDITION !!
This Machine has been rebuilt and gone through. it is in excellent
mechanical condition . the machine has a hi-riser for tall parts and
has the cutter Elevating feature allowing you to get in and out of
hard to cut parts without issue.
Machine specifications are as follows:
* Max pitch diameter (External) 18"
* Max pitch diameter (Internal) 18"
* Max face width, external & internal 5"
* Max diametrical pitch spur 4 DP
* Max diametrical pitch helical 6 DP
* Bore through work spindle 5 7/8"
* Max clearance height 16"
* Cutter spindle diameter 2.875"
* Max helix angle with proper guide 30 deg
* Stroking speeds 50-300 SPM
* Dimensions (L x H x W) 63" x 90" x 48"
* Machine net weight, approx 7,500 lbs
Machine Equipped With:
* 5" Stroke
* 10" Riser (allowing 16" clearance height from top of spindle)
* 5-7/8" Bore in table
* Hollow Spindle
* Internal quadrant
* Standard Straight Spur Guide
* cutter adaptor
* Misc change gears
Machine can be inspected under power with proper notice in our
statesville NC Plant. contact us to set up an inspection today
or visit our website to view other machines in stock at
WWW.PiselliEnt.com So much to choose from !!
