Fellows model 6A Gear shaper 0" riser , 5" stroke , solid spindle , 3-1/8" hole in spindle , 4"Clearance height excellent condition

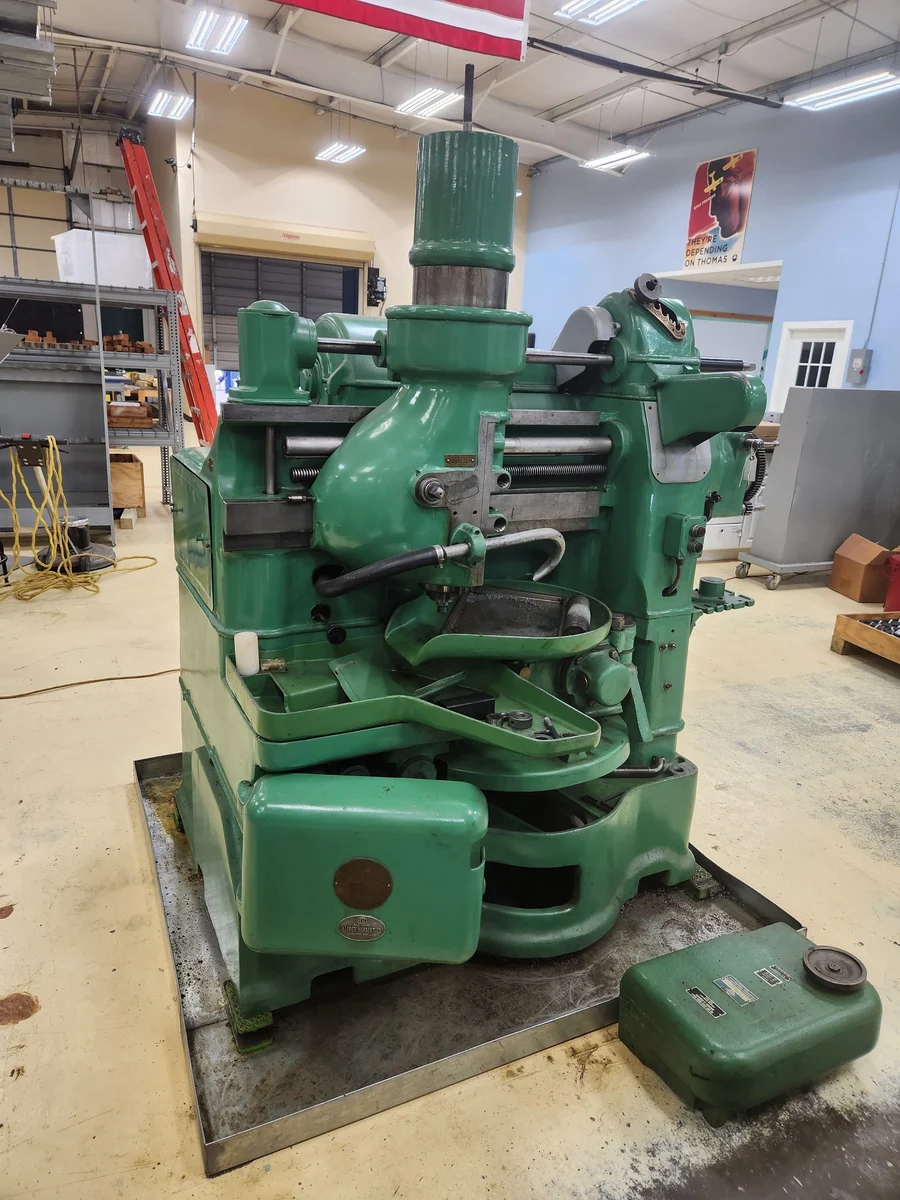

Fellows Vertical gear shaper
Model 612A
s/n 17163
Excellent condition

Machine will be gone through and properly adjusted for optimum
performance. Machine backlash brought back to original OEM specs
while all items repaired as needed

Machine specifications are as follows:

* Max pitch diameter (External)................................18"
* Max pitch diameter (Internal)................................18"
* Max face width, external & internal..........................5"
* Max diametrical pitch spur...................................4 DP
* Max diametrical pitch helical................................6 DP
* Bore through work spindle....................................3"
* Max Clearance height.........................................4"
* Cutter spindle diameter......................................2.875"
* Max helix angle with proper guide............................30 deg
* Stroking speeds..............................................50-300 SPM
* Dimensions (L x H x W)..................................63" x 77" x 48"
* Machine net weight, approx....................................6,500 lbs

Machine Equipped With:
* 5" Stroke
* 3" Bore in table
* 0" Riser
* solid Spindle
* Standard Straight Spur Guide
* Misc change gears

Machine can be inspected under power with proper notice in our
statesville NC Plant. contact us to set up an inspection today
