GLEASON "CONIFLEX" STRAIGHT BEVEL GEAR GENERATORS

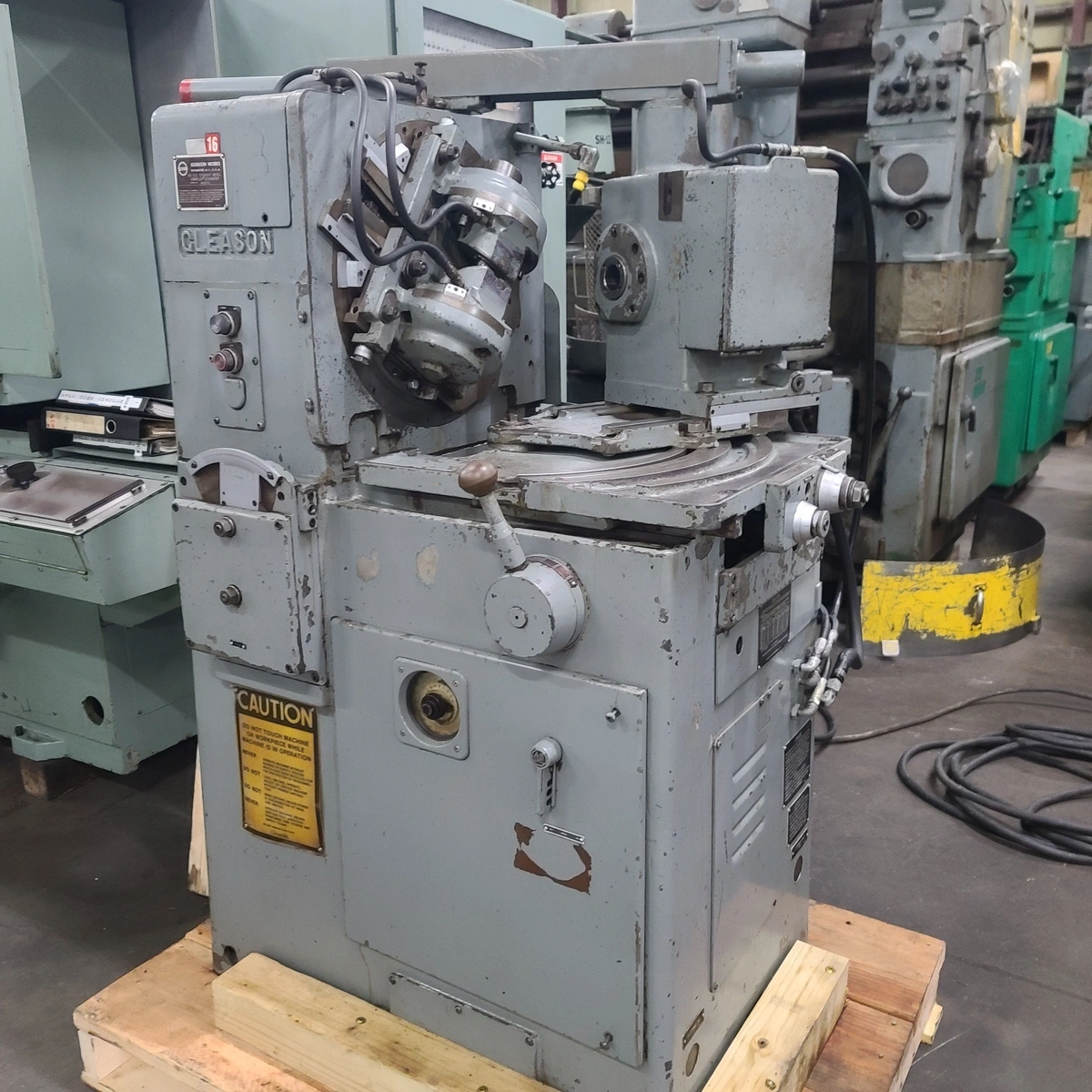

Model 102 "CONIFLEX" s/n 641010
available For cutting STRAIGHT BEVEL GEARS
These machines are Suitable For The Cutting Of Straight Bevel Gears
& Pinions Up To 4.5" In Diameter, 7/16" Face Width & Up To 16 DP (1.6 Module)
utilizing rotary disc type cutters for the cutting process
EQUIPMENT / FEATURES:
Hydraulic Double Acting Chucking Mechanism (TBD)
Self Contained Hydraulic System
Self Contained Coolant System GLEASON
Automatic Counter & Stop
PRINCIPAL SPECIFICATIONS:
Maximum Pitch Diameter 4.5"/(114mm)
Maximum Cone Distance 2.25"/(57mm)
Maximum Face-Width .43"/(11mm)
Work Head Angle 0 To 90 Degs
Coarsest Diamteral Pitch (Mod) 16 DP/(1.59 Mod)
Diameter Taper Hole In Work-Spindle
At Large End Of Taper 1.496"/(38mm)
Work Spindle Taper (Per Ft.) .5"/(12.7mm)
Depth Of Taper 3"/(76.2mm)
Max Dist, Spdl Nose To Machine Center 5"/(127mm)
Min Dist, Spdl Nose To Machine Center 1.25"/(31.75mm)
Index Range 10 To 120
Pressure Angle 20 Degrees
Cutter Speed 63-559 FPM Feed Per Second (Per Tooth) .72 To 24
Main Drive Motor .75 HP/1800 RPM
Overall Machine Length 39.5"/(1003mm)
Overall Machine Width 26.5"/(673mm)
Overall Machine Height 60"/(1524mm)
Approx Mach Net Wt 3,425 Lbs./(1553 kGs)
Change gear with these machines
(2)96 T RH
(3)72 T RH
(1)36 T LH
(3)48 T LH
(2)54 T LH
(2)58 T LH
(2)72 T LH
please note that this is all we have with a few machines so each
machine will require a few of each
Please note: that our price is based for each machine individually
These machines can be inspected in our Statesville NC warehouse
gone through and tested running in our shop . contact us today
to set up an under power inspection of these machines . visit our
Website at www.pisellient.com or contact rich Piselli at
Rich@pisellient.com for more information , set up an inspection or
learn more about our vast inventory of gear machinery and our
expertise running and servicing these machines in particular!!
