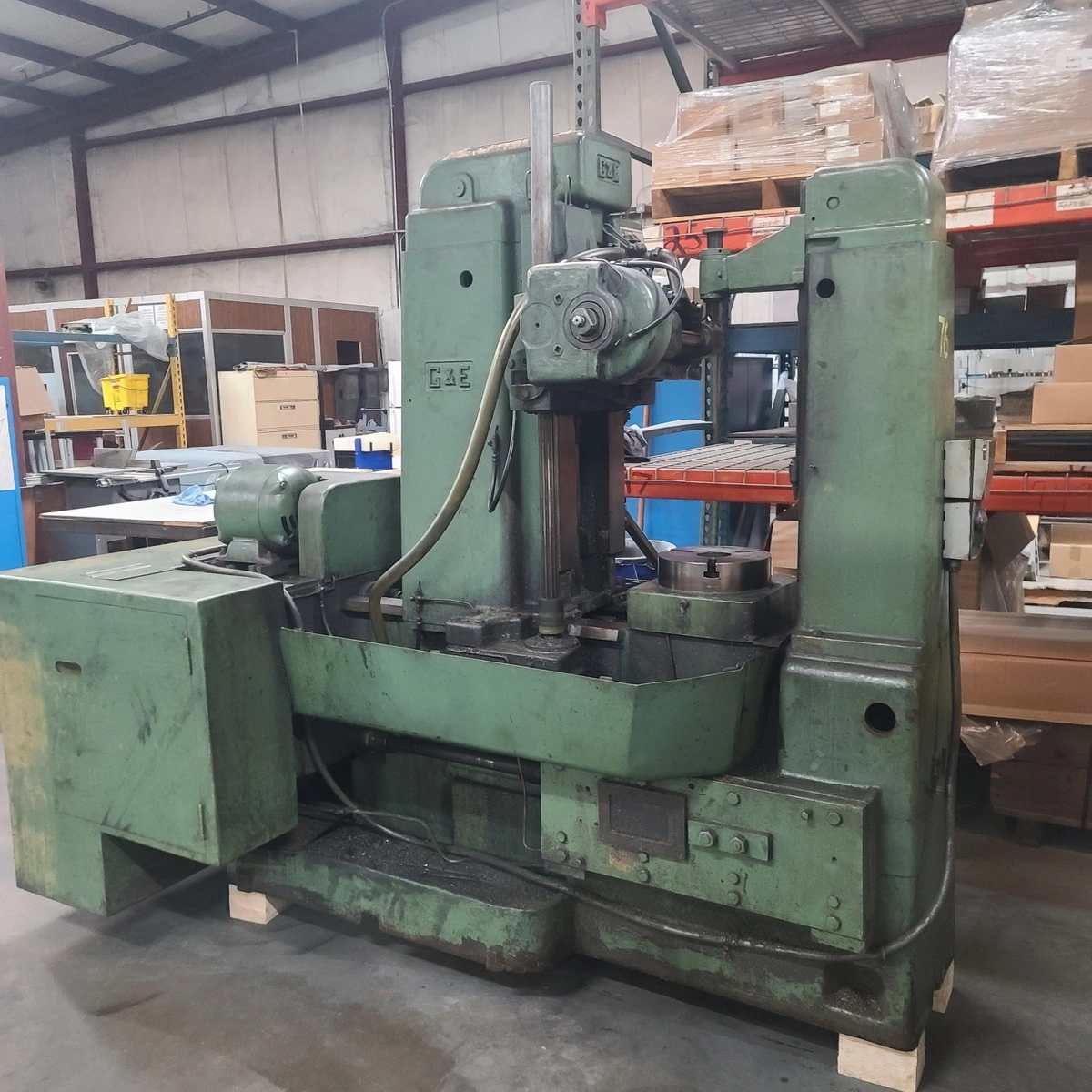

Gould & Eberhardt Model 12H vertical gear hobber . 13" diameter capacity w/support, 18" diam w/out support, 4 DP , good condition
Gould & Eberhardt Vertical Gear Hobber
model 12H
s/n 5370A7
Good little job shop vertical Gear Hobbing Machine
general machine specs to follow:
Max diameter w/ support 13"
Max diameter w/out support 18"
Max face width 10"
Max pitch 5 DP
Max hob diameter 5"
Diameter work table 10"
Min center hob/ work 0"
hob speed range 50-300
main drive motor 5 HP
floor space 79" x 100"
machine height 75" tall
machine weight 7,000 lbs
Machine equipped with the following
1 hob arbor
push button controls
tailstock support for pinions
Misc change gears
manual
Machine can be inspected under power in our Statesville NC plant
machine can be put under power for inspection with proper notice
Please se this machine on line at WWW.PiselliEnt.com or or to
request formal quote on line . many machines in our stock
