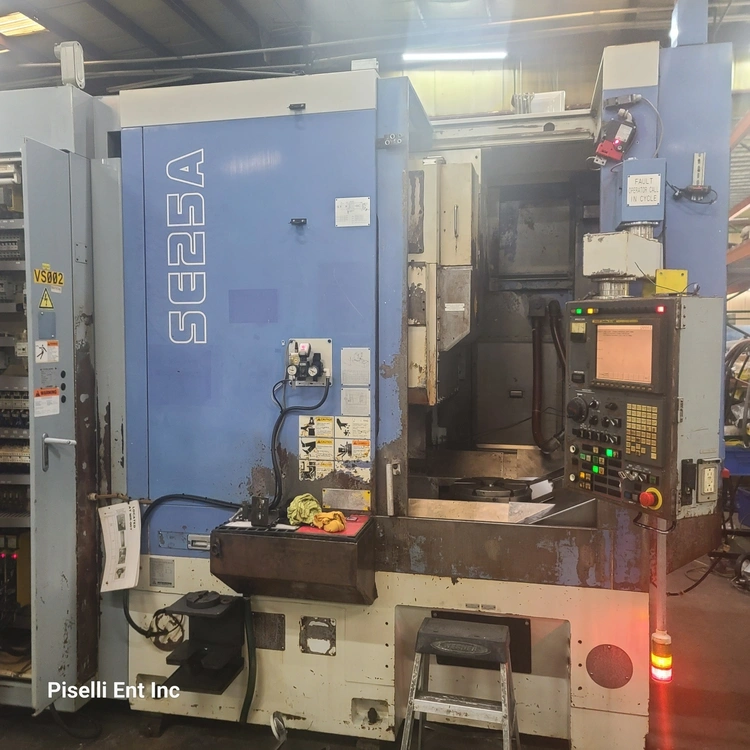

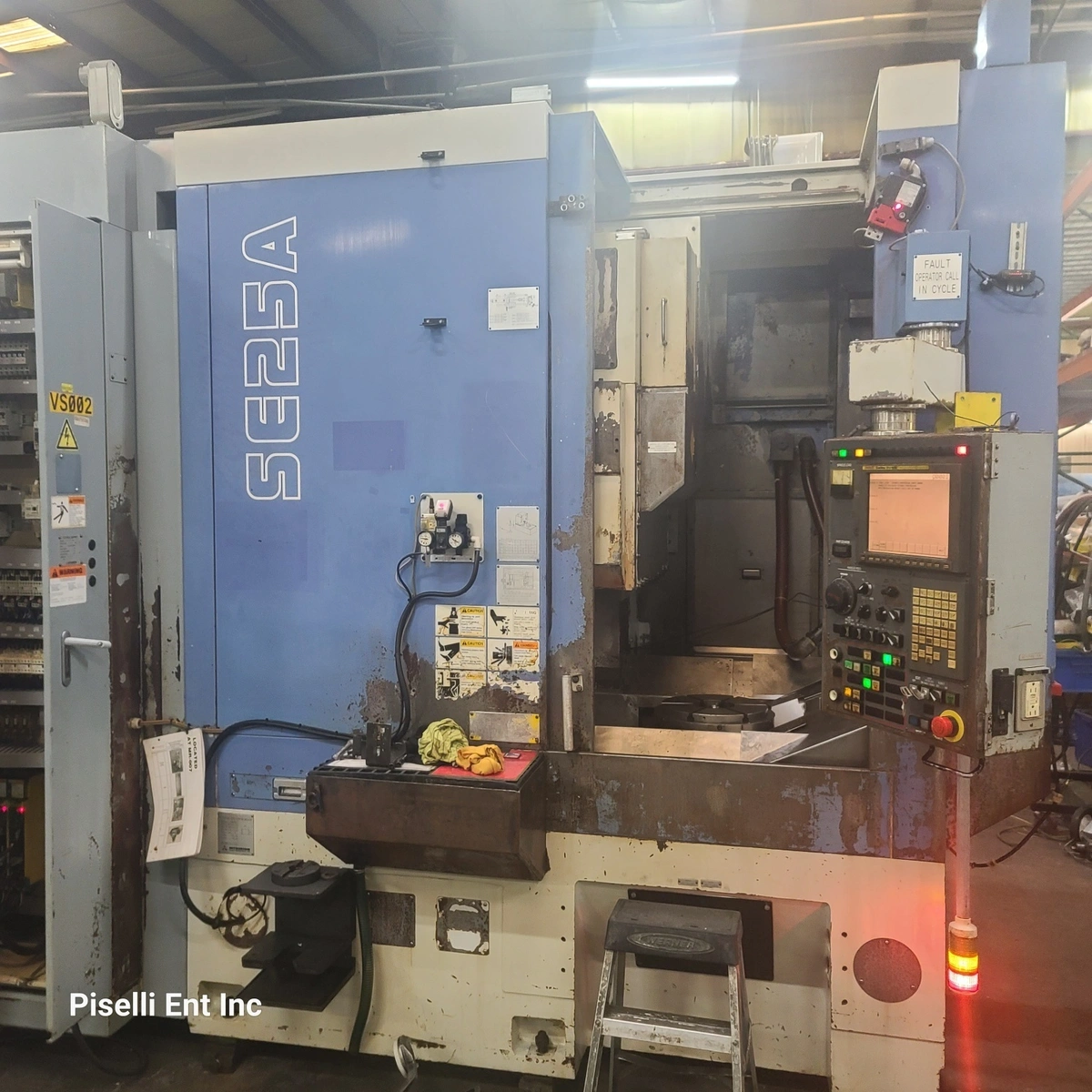

Mitsubishi Model SE25A CNC gear shaper , 10" diam capacity , Fanuc 21i-MB pendant control, Good condition in Plant

Mitsubishi CNC Gear Shaping machine
Model SE25A
s/n SE25139C41
New 2008

this machine has just been removed from running service . it can be
inspected in plant still for a short time only . charts of parts running
on this machine are attached on this quote for reference.
These Mitsubishi 4-axis CNC Gear Shaping machines rarely hit the used market. they
are excellent cnc gear shapers that can be run in the manual load or fully automatic
mode.

Machine specifications are as follows:
Maximum cutting diameter 250 mm / 10"
Maximum Face width 60 mm / 2.36"
maximum Modul 6 modul
cutter stroking speeds 300 - 1800 spm
cutter spindle diameter 90 mm / 3.54"
Rapid traverse 393.70 IPM

Machines are equipped with the following
Fanuc 21-MB 4 axis cnc controls
Number of cuts 1-4
manual or Auto loading
hydraulic table clamping
Auto door
mag chip conveyor and tank
cutter adaptor
spur guide
machine manuals and documentation

Machine can be inspected in customers shop as it has just been
Removed from running service . See gear charts for machine quality
for production only . In the plant photos provided. contact Rich
Piselli today to set up and under power inspection at 704 609-0766
or Visit WWW.PiselliEnt.com to view this machine or other cnc shapers
in our inventory!!!
