Fellows 50-8 CNC 6-Axis Hydrostroke Gear shaping machine . Remanufactured & Retrofit in 1998 w/ GE Fanuc 15 M control. high rise throated riser machine w/many special options !!! Aerospace facility!!

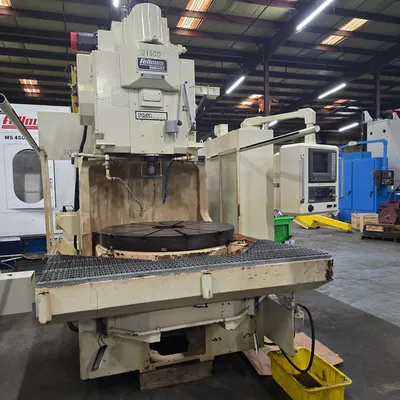

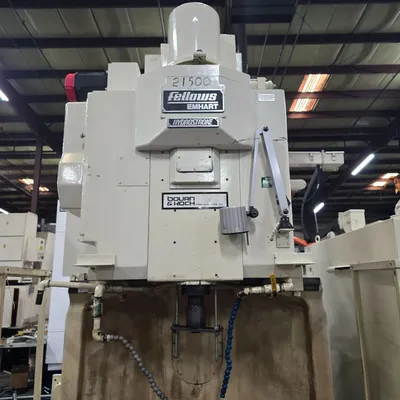

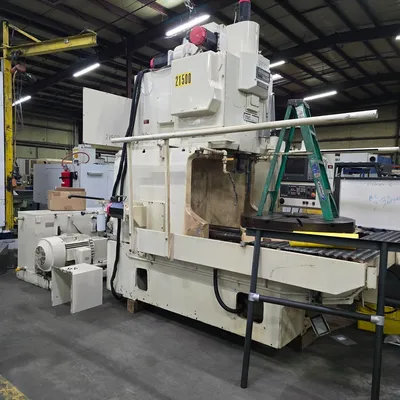

Fellows 6-Axis CNC Hydrostroke gear shaping machine
Model 50-8
s/n 36629 Ret 4216098
Machine was remanufacturued and recontrolled in 1998
this 6-axis CNC vertical shaping machine is available for immediate
sale and can be inspected under power for a short time only . the
machine comes from an aerospace plant Location and is in Excellent
operating condition .
Note: Machine is equipped with zero "0" center distance sub base
with 150 mm additional riser assembly
Machine specs correspond to the following catalog info:
Machine Specifications are as follows:
Max External Gear 50"
Min External Gear 0"
Max Internal Gear 50"
Min Internal Gear 0"
Max Pitch gear 2 DP
Max Stroke length 9"
Max Face capacity 8"
Max clearance Height 25.5"
Spindle Diameter 5.5"
Center Distance Max/Min 30.9" / 0"

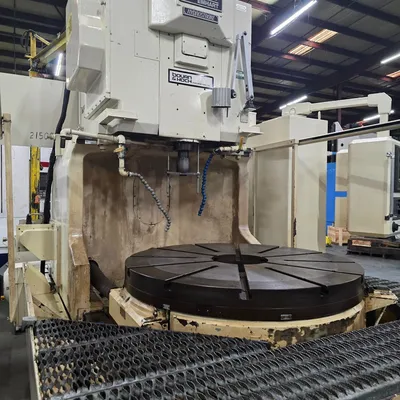

Table Diameter 44"
table Bore Diameter 11.2"
floor space 12' wide x 18' Deep
Machine weight approx 40,000 lbs
Machine floor space 12' wide x 18' long
Machine is equipped with the following:

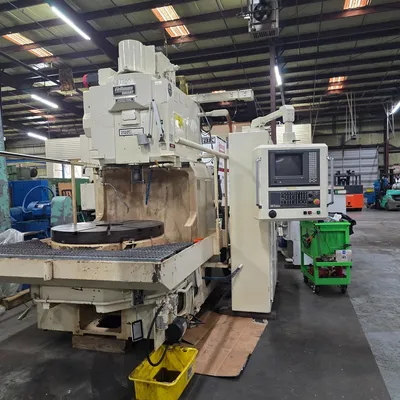

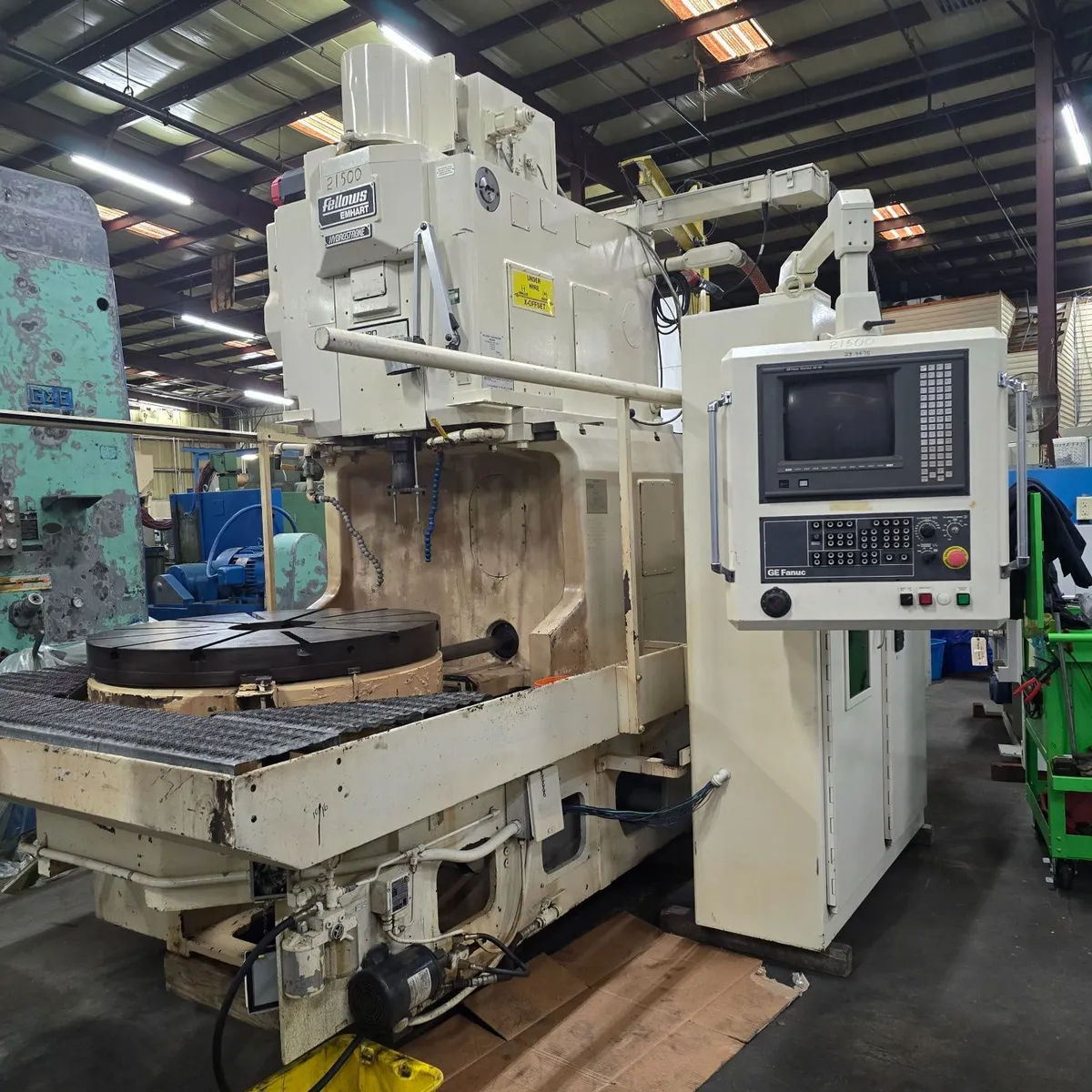

GE Fanuc 15M 6-Axis cnc pendant controller w/ color screen
Stroke length & Stroke Position are programmable axis
0" center distance sub Base option
150 mm Riser height extension option
Cutter adaptor
Chip conveyor
coolant tank

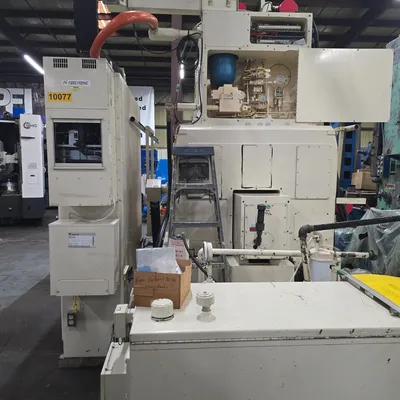

hydraulic tank w/ heat exchanger (note) requires external chiller system
Misc tooling

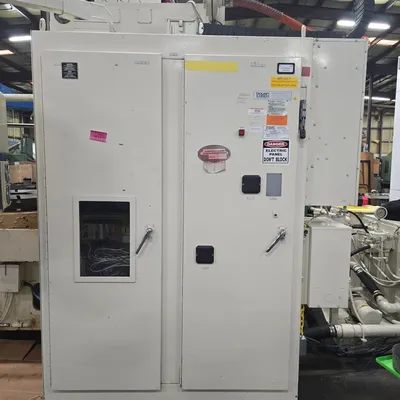

Books, Manuals & Electrical Diagrams
This machine can be inspected in customers shop producing very good quality
gears for a short time only call to set up an under power inspection.
Note: machine has been recently removed from Power so it cant be inspected
under power until Machine will be moved to our warehouse in NC.
contact Rich Piselli for more information or to set up inspection !!!
