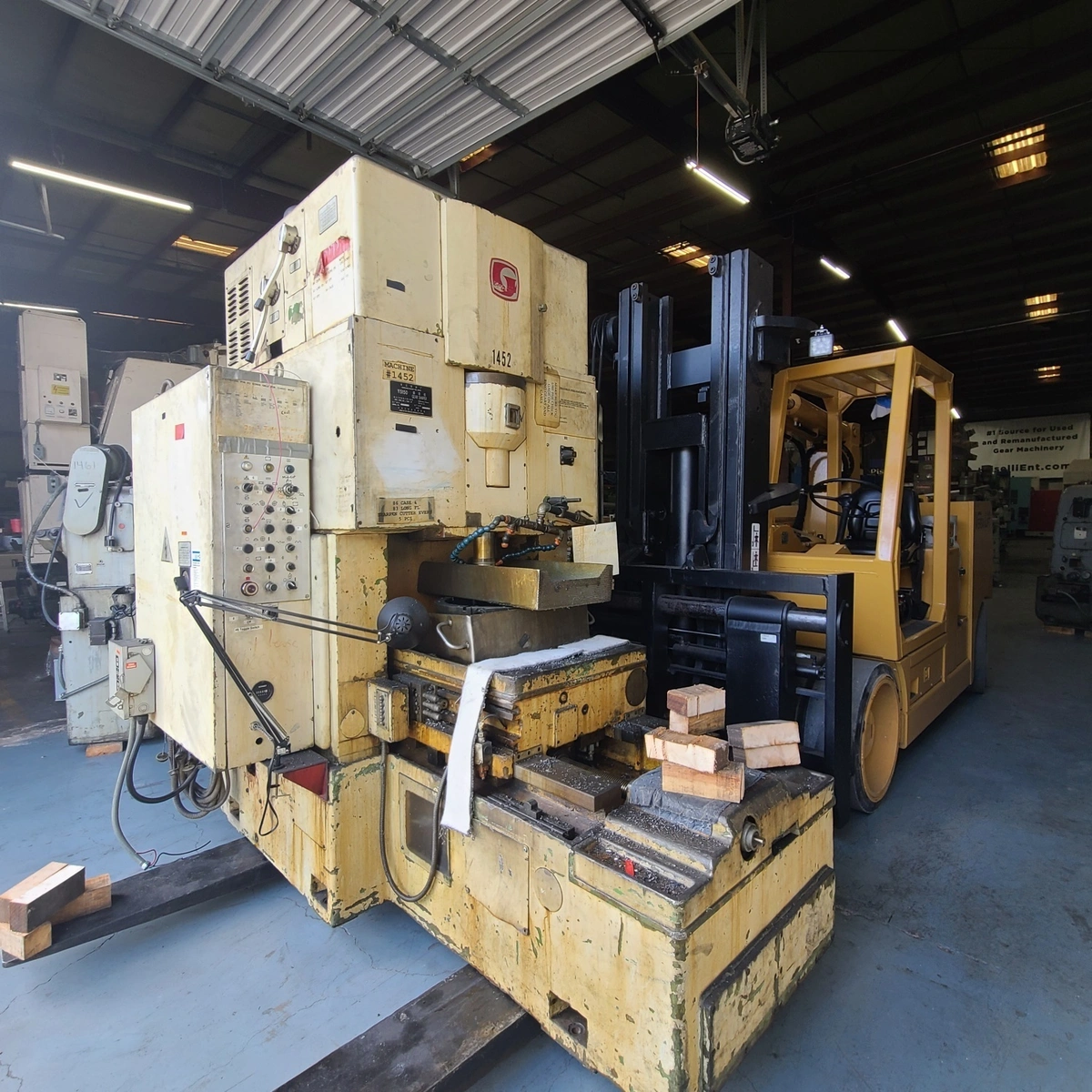

Chang Jiang (WOLF) model Y5150B vertical Gear Shaper , 20" max diam, 4" stroke , 3 DP, new 1991
Chang Jiang (WOLF) vertical gear hobber
Model Y5150B
New 1991
s/n 034
this isa standard vertical gear shaper which uses change gears for
index ratios . the machine is a straight forward heavy duty gear
shaping machine:
machine specifications are as follows
Max diameter gear external 20"
Max diameter Gear Internal 24"
Max stroke length 4"
spindle diameter 3.149"
table diameter
table bore diameter 4"
max center distance 14"
Max cutter diameter 5"
max clearance height above table 10"
Max part weight 200 Kg 440 lbs
Machine weight 15,000 lbs
electrics 470V 3/60 cycle
this machine is presently in our shop and can be inspected with
proper notice , we have full manuals and documentation for this
machine. good to set up for production or a a good low cost machine
visit www.pisellient.com for more info and photos of this machine or
contact rich piselli at Rich@pisellient.com to discuss in more detail
