Fellows model 645a , 18" diameter 5" stroke , large hole in table , excellent condition , 0" riser assembly

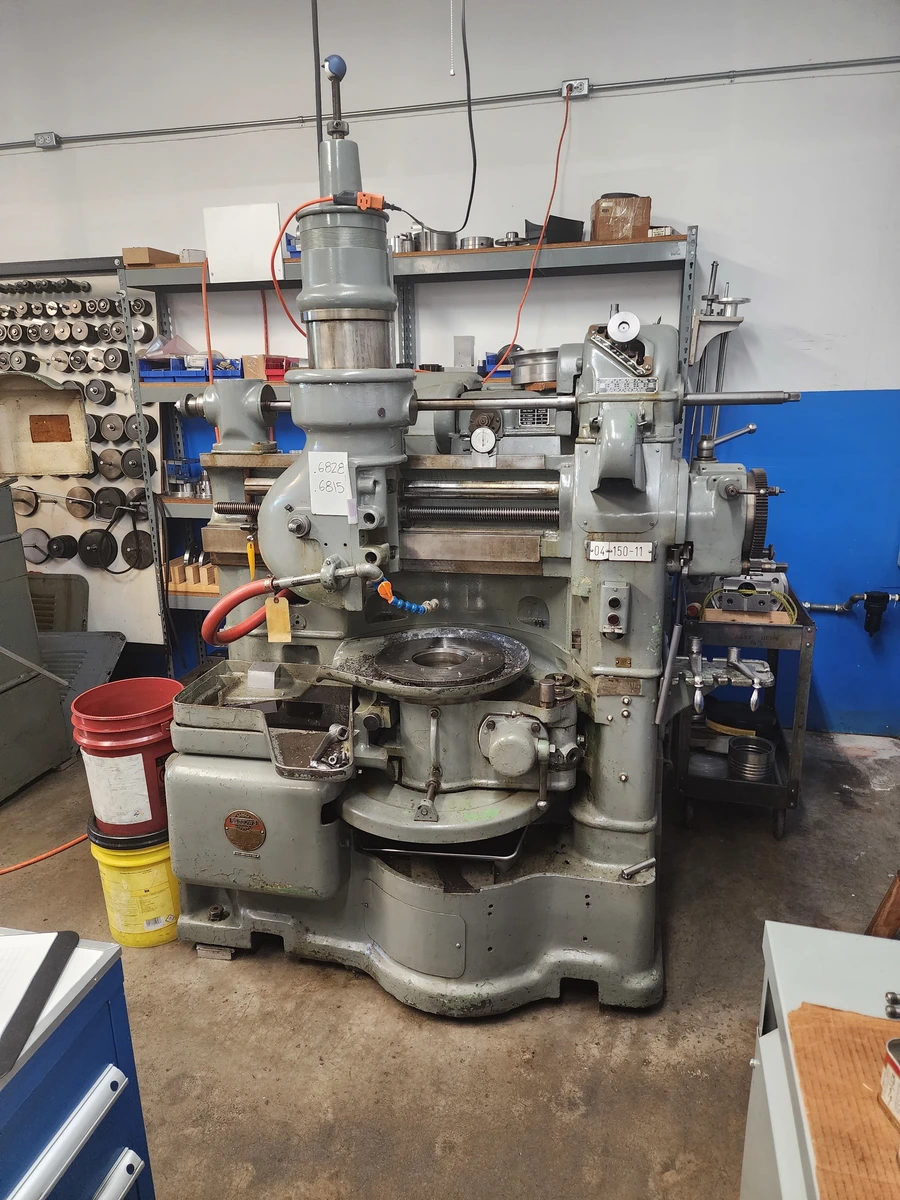

Fellows 6A style vertical gear shaping machine
Model 645A5
s/n 29757
special large hole in table
This machine seems to be in excellent mechanical condition. the Machine
will be gone through and adjusted for wear and re-aligned and brought
back to optimum mfg capabilities. contact us today to set up an inspection
Machine specifications are as follows:
* Max pitch diameter (External)................................18"
* Max pitch diameter (Internal)................................18"
* Max face width, external & internal..........................5"
* Max diametrical pitch spur...................................4 DP
* Max diametrical pitch helical................................6 DP
* Bore through work spindle....................................5 7/8"
* Max clearance height.........................................tbd"
* Cutter spindle diameter......................................2.875"
* Max helix angle with proper guide............................30 deg
* Stroking speeds..............................................50-300 SPM
* Dimensions (L x H x W)..................................63" x 82" x 48"
* Machine net weight, approx....................................6,800 lbs
Machine Equipped With:
* 5" Stroke
* 0" Riser
* 5-7/8" Bore in table
* Internal quadrant
* Standard Straight Spur Guide
* cutter adaptor
* Misc change gears
Machine can be inspected under power with proper notice in our
statesville NC Plant. contact us to set up an inspection today
