Fellows Model 645A5 18" diameter 5" stroke length , large bore in table , 5" riser , excellent cond! s/n 28206

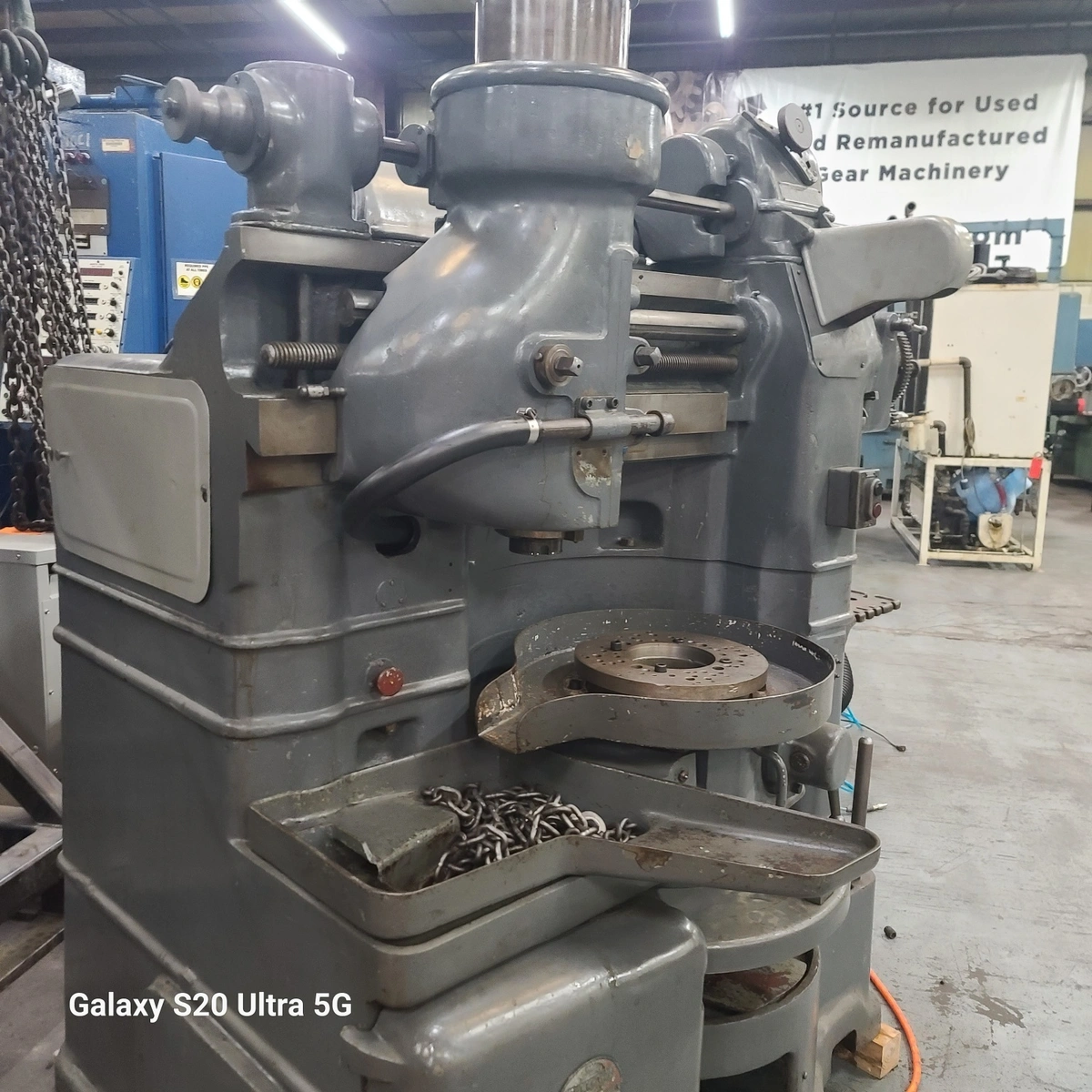

Fellows vertical gear shaping machine
Model 624A
s/n 28206
W/ large table bore

this machine will be gone through at our statesville facility
it can be inspected under power with proper notice

Machine specs are as follows:

* Max pitch diameter (External) 18"
* Max pitch diameter (Internal) 18"
* Max face width, external & internal 5"
* Max diametrical pitch spur 4 DP
* Max diametrical pitch helical 6 DP
* Bore through work spindle 5-7/8"
* Cutter spindle diameter 2.875"
* Max helix angle with proper guide 30 deg
* Stroking speeds 50-300 SPM
* Dimensions (L x H x W) 63" x 78" x 48"
* Machine net weight, approx 6,800 lbs

Machine Equipped With:
* Large table bore (5-7/8")
* 5" Stroke
* 5" Riser
* hollow Spindle
* Standard Straight Spur Guide
* Misc change gears

note: machine equipped as photographed , customer specific tooling
not included in offer contact us to make sure before purchasing !!

** Videos Available if you don't want to travel **

Machine can be inspected under power with proper notice in our
statesville NC Plant. contact us to set up an inspection today
