Fellows model 20-4 gear shapers w/ 7" risers and crowning cams , tooling and some workholding , 2- available excellent!!

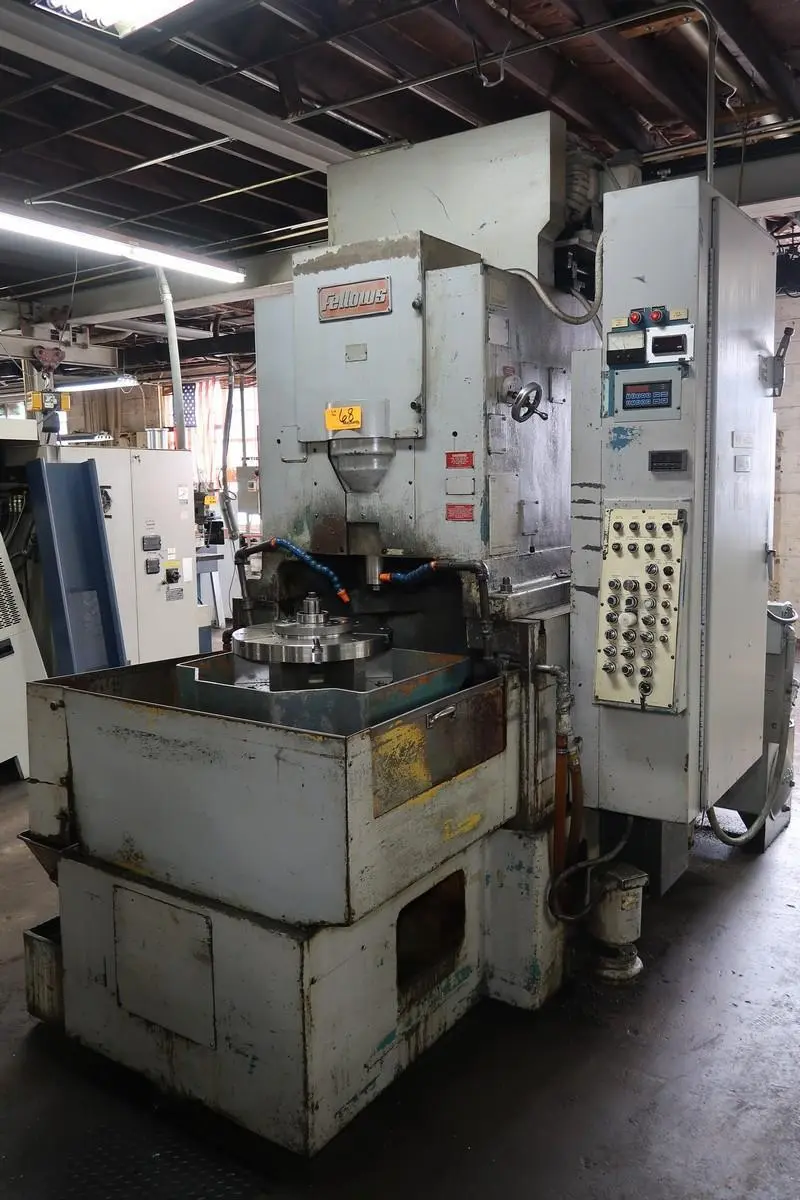

Fellows vertical gear shaper
MOdel 20-4
s/n 35133
very good condition (2 available )

Machine Specifications:
Max pitch diameter (External).................................20"
Max pitch diameter (Internal).................................20"
Max face width, external & internal...........................4"
Max diametrical pitch spur....................................4 DP
Max diametrical pitch helical.................................5 DP
Bore through work spindle.....................................9.055"
Cutter spindle diameter.......................................3.543"
Max helix angle with special guides...........................45 deg.
Distance between work table & cutter spindle (w/no riser).....12"
Dimensions (L x H x W)............................126"x 117"x 70"
Machine net weight, approx.............................18,000 lbs.

MACHINE is EQUIPPED WITH:
Spur Guides
7" Riser Assembly allows for 16.5" clearance height
20" table diameter
Machine Guarding
Hydraulic Unit
crowning cam
1 Cutter Adapter
Misc. Change Gears tooling and work fixtures

Machines can be inspected in Maryland plant under power and in excellent
condition under power . Machines are being sold in as is condition
+ Note: machines have been removed from customers plant

check out our website for this machine and gear machinery at WWW.PiselliEnt.com

or contact rich at Piselli Enterprises Rich@piselliEnt.com to set up inspection
or receive a formal quote or call 704 609-0766
