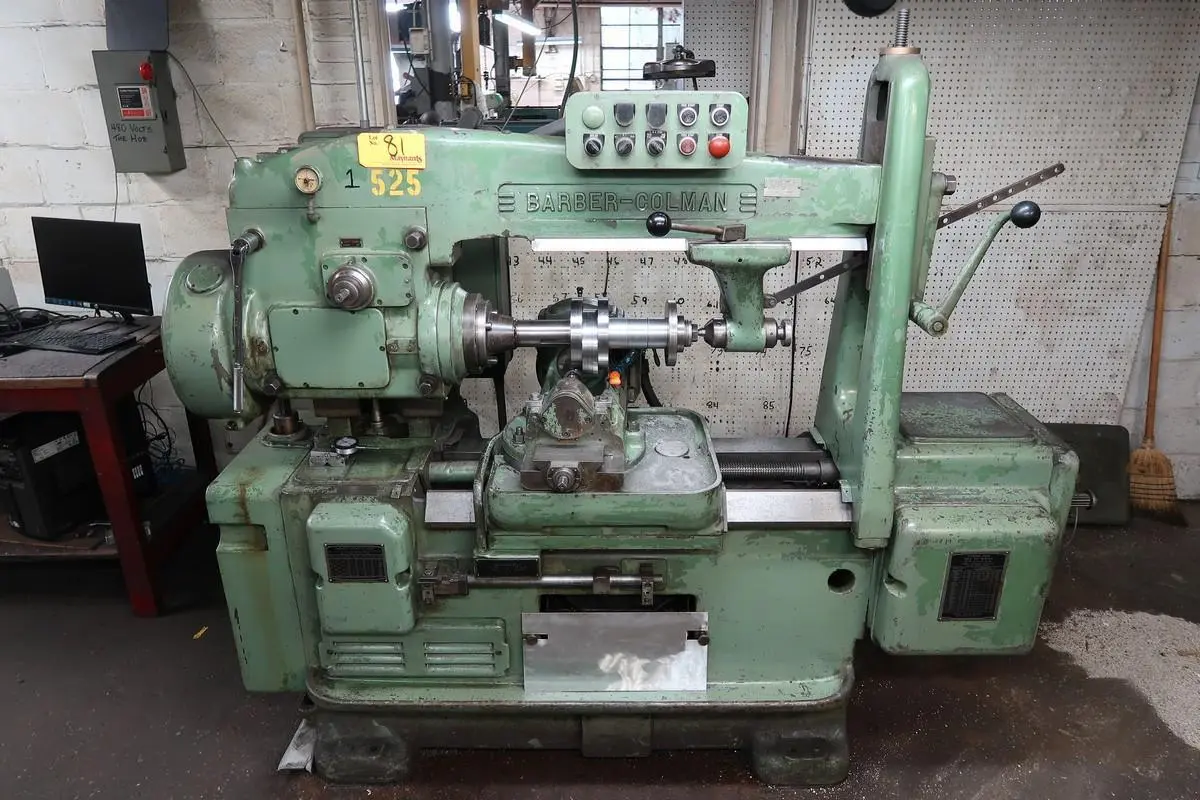

Barber Colman model 16-16 Gear hobber 6 Dp , 16" diameter x 16" cut length w/ Differential , excellent condition , lots of tooling ready to ship!
Barber Colman horizontal hobber
Model 16-16
s/n 3049
Machine is equipped with A Differential Mechanism
this machine can be inspected prior to removal at gear shop in
Maryland . the machine is in very good mechanical running condition
with lots of tooling and gears.
machine specifications are as follows
Machine catalog specifications:
* Max. DP in Steel 6 DP-10 DP
* Max. Work O.D. 16"
* Max. Hob Slide Travel 16"
* Diameter of Hole Through Work Spindle 3-1/8"
* Max. Hob Diameter 5"
* Max. Vertical Adjustment of Work Spindle 8"
* Dist. C/L of Work Spindle to Underside of Overarm 8"
* Dist. C/L of Work Spindle to C/L of Hob Spindle,
Max./Min 8.75"/0.75"
* Dist. Face of Work Spindle to C/L of Hob Spindle,
Max./Min 19.5"/3.5"
* Max dist of shaft from spindle face - tailstock 30" approx
* Max. Hob Slide Swivel Angle Setting 45 Degrees
* 9 Hob Speeds (when equipped with suitable gears) 59-246 RPM
* Hob Feeds (when equipped with suitable gears) .0075-.1125"
* Floor Space (approx.) L x W x H 82" x 38" x 76"
* Weight (approx.) 6500 lbs
Machine Equipped With:
* Differential Mechanism
* single-Start index worm and Gear
* 1 Hob Arbor (1-1/4")
* Manual hob Hob shift
* Tailstock- screw type
* Power 440 volt 3/phase
* 25-30 Change Gears approx
* misc tooling
Note: Machine can be inspected under power with Proper Notice.
Contact Rich Piselli at Rich@PiselliEnt.com to set up an inspection
or Visit our website at WWW.PiselliEnt.com to view this and other
Gear machinery!
