Barber Colman model 6-10 horizontal gear hobber, 6" diameter x 10" part length, c-frame style, v-ways, bayonnette center, single thread precision worm 220 power Nice condition machine.

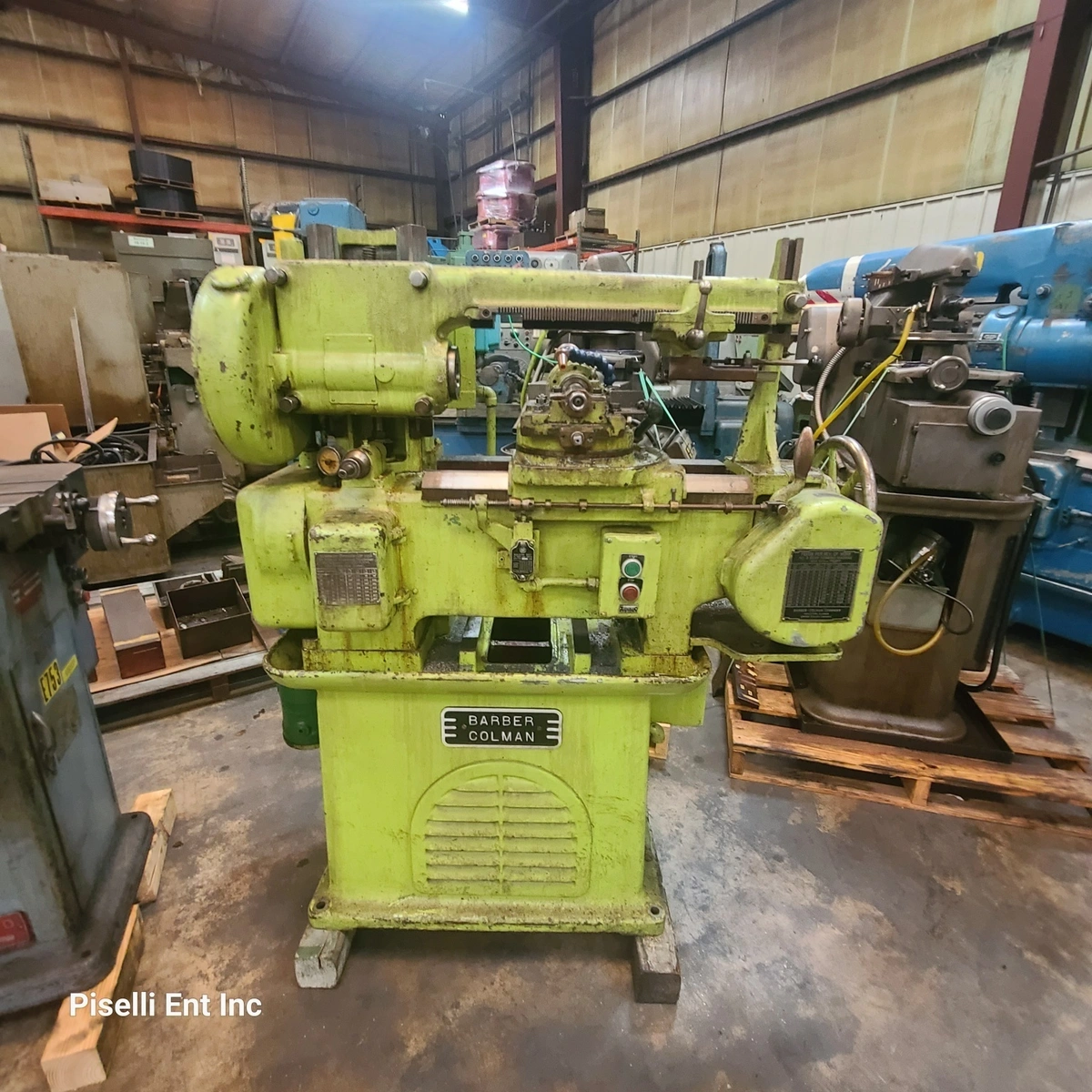

Barber - Colman Horizontal Gear Hobbing Machine
Model 6-10 s/n 4586
This Barber-colman machine possesses almost all the finer options and later
style design the OEM had to offer at the time of its manufacturing.
The C-Frame style machine and V-way construction should give you a quality
spline or gear thru-out its entire service life.
Machine Specifications are as follows:
MAXIMUM WORK DIAMETER:....................................................6"
MAXIMUM TRAVEL OF HOB CARRIAGE:......................................10-1/2"
MAXIMUM DIST. SPINDLE FACE TO TAILSTOCK CENTER:......................15-3/4"
MAXIMUM DIAMETRAL PITCH, 1 CUT:.........................16 DP - 2" DIAMETER
MAXIMUM DIAMETRAL PITCH,1 CUT:..........................48 DP - 6" DIAMETER
MAXIMUM HOB DIAMETER:................................................2-1/16"
HOB SPEED:....................................................133 - 533 RPM
WORK SPINDLE BORE:...................................................1-1/32"
WEIGHT OF MACHINE:................................................3,500 LBS.
MACHINE IS EQUIPPED WITH:
c-frame style overarm
Triple Thread precision worm
v-ways
Bayonet Center
Manual hob shift
Standard hob headÂ
Change Gears
1 Hob Arbor
220/440 powerÂ
Machine can be inspected under power in good mechanical condition at our
Statesville, NC. shop. visit www.pisellient.com on line to request formal
quote on line. Contact us for any further information you requireor videos
