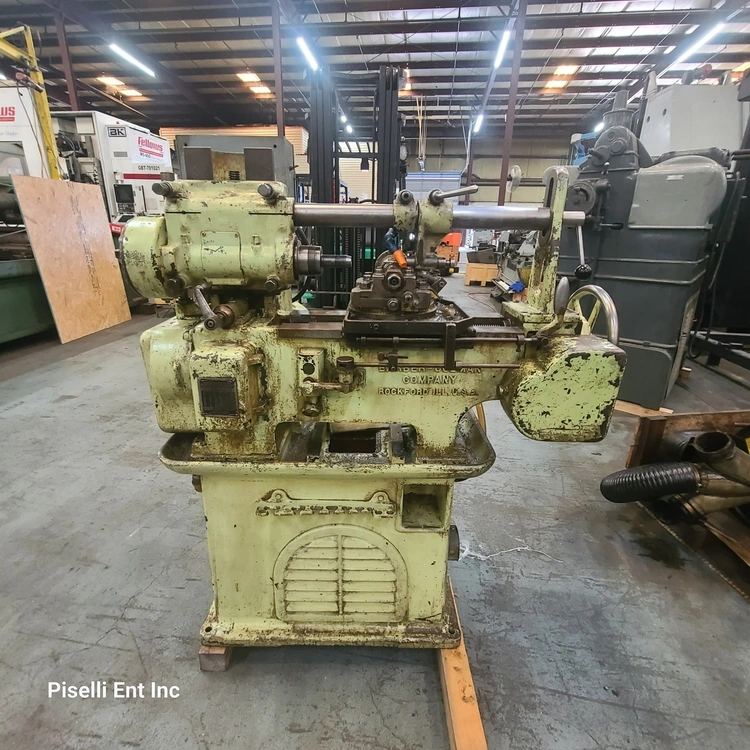

Barber Colman #3 6-10, 6" diameter x 10" part length , triple thread worm good condition s/n 2477

Barber Colman horizontal hobber
Model 6-10 #3
s/n 2477

this machine is a good job shop machine . taken from running service
good condition machine

MAXIMUM WORK DIAMETER:...................................................6"
MAXIMUM TRAVEL OF HOB CARRIAGE:.....................................10-1/2"
MAXIMUM DISTANCE SPINDLE FACE TO TAILSTOCK CENTER:..................15-3/4"
MAXIMUM DIAMETRAL PITCH & DIAMETER IN STEEL, 1 CUT:....16 DP - 2" DIAMETER
MAXIMUM DIAMETRAL PITCH & DIAMETER IN STEEL, 1 CUT:....48 DP - 6" DIAMETER
MAXIMUM HOB DIAMETER:...............................................2-1/16"
HOB SPEED:...................................................133 - 533 RPM
WORK SPINDLE BORE:..................................................1-1/32"
WEIGHT OF MACHINE:.......................................APPROX. 3,500 LBS.

MACHINE IS EQUIPPED WITH:
Triple thread commercial Worm
flat ways
Misc. Change Gears
Hob Arbor
round overarm
screw type center

machine can be inspected running in our statesville facility . machine
will be gone through and adjusted . Contact us today to see machine
visit WWW.Pisellient.com for more information or request formal quote
