Fellows model 36-6 w/ rack attachment , 40" max diameter, 3" riser , 6" stroke , table plate , nice condition . s/n 31743Spec

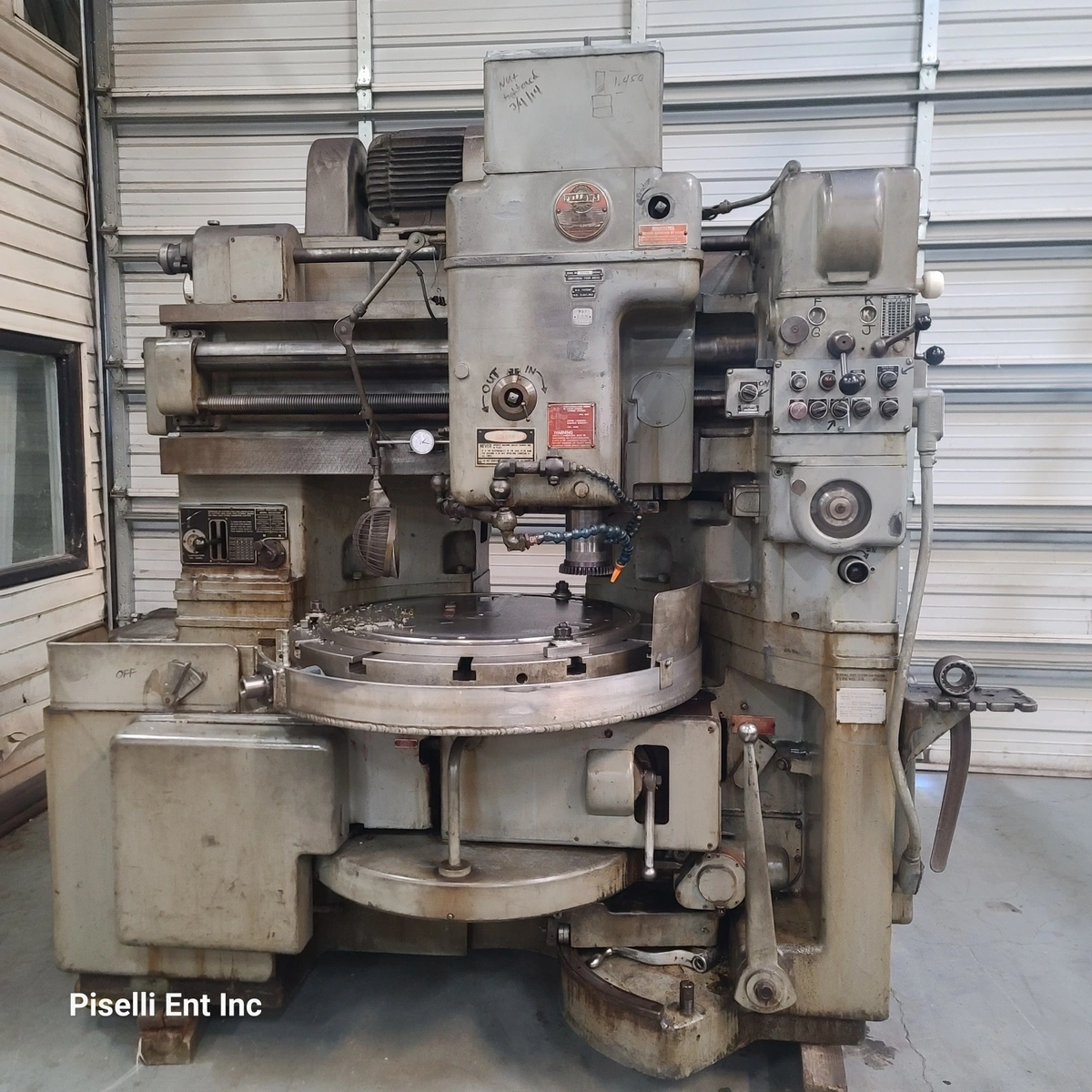

Fellows Gear shaping machine
Model 36-6 w/ Rack Attachment
s/n 31743spec
condition excellent from customers shop
MACHINE SPECIFICATIONS:
* Maximum Pitch Diameter External 40"
* Maximum Pitch Diameter Internal 36"
* Maximum Face Width 6"
* Stroke Length 6"
* Maximum Helix Angle w/ proper guides 45 deg
* Maximum Diametral Pitch
-For Spur Gears 3 DP
-For Helical 4/5 DP
* Work Spindle Bore Diameter 5.875"
* Twelve (12) Stroking Speeds, w/ranges 18-300 spm
* Machine Dimensions 92" x 60" x 100"H
* Machine Weight, Approx 17,000 Lbs
Machine Is Equipped With:
special rack Attachment
3" Riser Assembly
4" spindle diameter
Misc. Change Gears
1 Cutter Adapter
38" Diameter table
operators & spare parts Manuals on file
Machine can be inspected under power with proper notice. Additional
adaptors can be purchased if required. Send us your part prints to
confirm what you require on this machine. Review this and our many
other Gear machines at WWW.PiselliEnt.com WEBSITE for more information
photos and similar gear machinery.
Email rich@PiselliEnt.com for more information and/ or questions!!
