Barber Colman model 16 36 , 16" Diam x 36 " part cut length , chamfer tool , 2 start worm , auto hob shift , work clamping s/n 2941

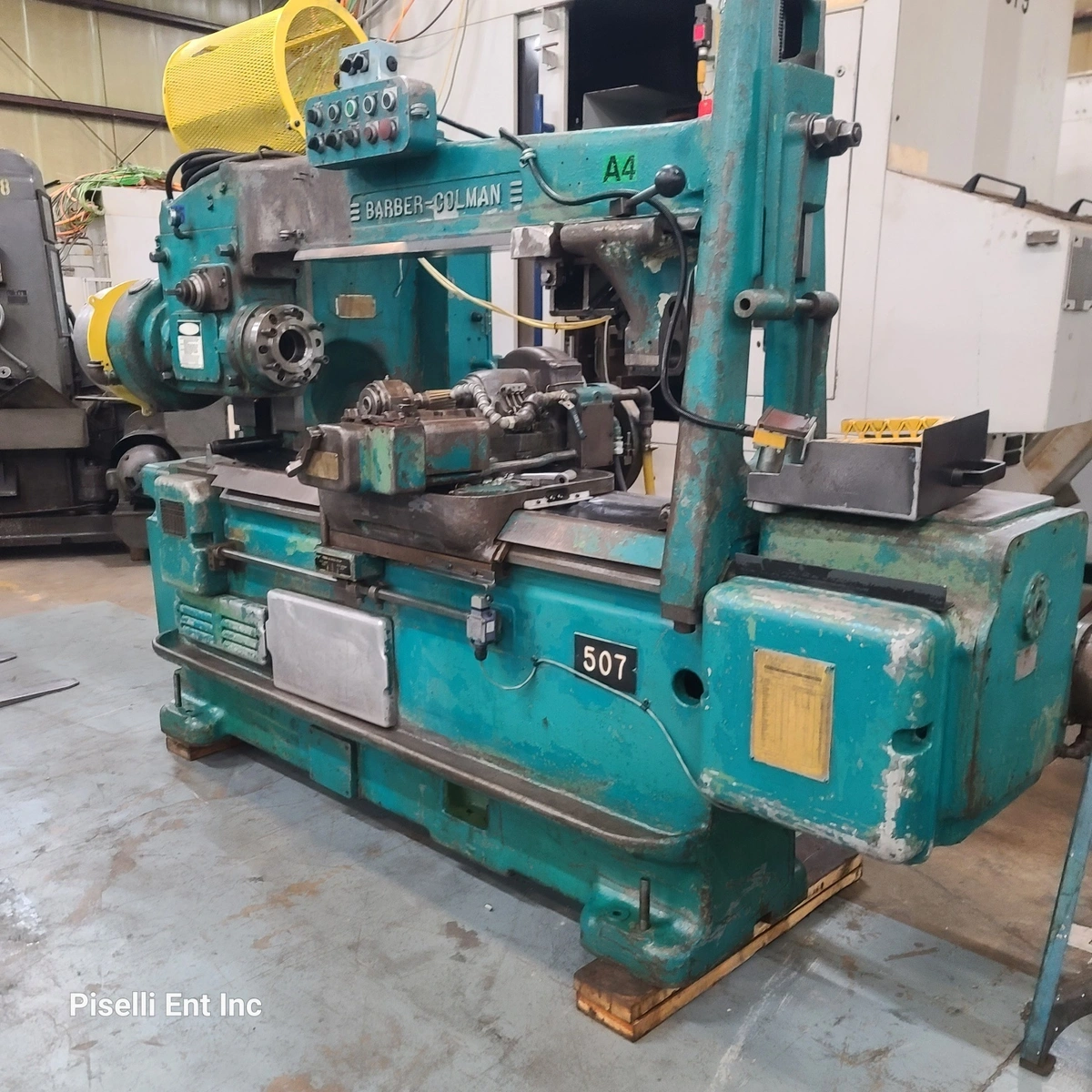

Barber Colman horizontal hobber
Model 16-36
s/n 2941
this machine can be inspected in our Statesville NC plant under
power with proper notice !!!
Machine specs are as follows
Machine specifications
*Max DP in Steel 6 DP-10 DP
*Max Work OD 16"
*Max Length of cut 36"
*Diameter Hole Thru Work Spindle TBD
*Max Hob Diameter 5"
*Max Vertical Adjustment of Work Spindle 8"
*Max Hob Slide Swivel Angle Setting-Degree 45 degrees
*9 Hob Speeds 59-246 RPM
*Hob Feeds .0075-.1125"
*Machine weight 8,000 lbs
MACHINE IS EQUIPPED WITH:
A-frame style machine
dual thread index worm
Rapid traverse
auto hob shift
tailstock with screw type center
automatic work clamping
Chamfer tool attachment
misc face plate fixture for mounting a chuck or collet
Misc. Change GearsĀ
Machine can be inspected under power with proper notice in our
Statesville, NC facility! visit WWW.Pisellient.com to request
a quote or see more photos on line. or contact Rich Piselli at
rich@pisellient.com to receive a formal quote and pricing !!
