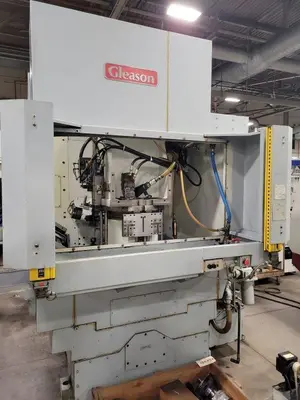

Gleason Phoenix 400 GH CNC Gear hobber , 18" diameter capacity , fanuc 150-M controls, 180 position loader s/n 930603er

Gleason Phoenix 6-Axis CNC Gear Hobber
Model 400 GH
s/n 930603
New 1999

This Gleason Phoenix machine does not usually come on the market .
this machine also has the 180 position loader and still allows for
the manufacture of large parts without interference.

Maximum Workpiece Diameter: 17.72” 450mm
Maximum Diametral Pitch (Coarsest): 2 NDP 12 Module
Maximum Hob Setting Angle +/-45°
Total Swivel Motion: -165°/+45° = 210°
Minimum Number of Teeth: 2
Center Distance Hob spindle - Work Spindle: Min 1.38” /Max 12.20”
Height- Work Spindle to Center of Hob Spindle: Mini 2.95” /Max 23.62”
Maximum Axial Hob Slide Travel: 20.67”
Maximum Radial Slide Travel: 10.83”
Distance Between Work Spindle and Tailstock Spindle Face: Min 13.78” Max 33.47”
Work Spindle Mounting Diameter: 8.66”
Worktable Taper: Gleason #50 Taper
Depth of Hole (at upper draw rod position): 5.98”
Maximum Hob Diameter: 6.3”
Maximum Hob Length: 9.5”
Maximum Hob Shift (Tangential Slide Travel): 8.66”
Hob Speed Range: 100 to 1000 RPM
Work Spindle Speed: 1 to 75 RPM
Axial: 197”/Min.
Radial: 197”/Min.
Hob Drive Motor (6000 RPM): 20.1 HP
Hydraulic Pump Capacity: 10 GPM
Approximate Weight: 26,000 lbs.

EQUIPPED WITH:
Fanuc 150-M CNC Control with Automatic Setup and Control of 6 Axes
-Axial Feed, Hob to Work Shifting Position, Hob Speed,
-Hob to Work Rotation and Swivel Angle Setting.
Summary Storage Capacity for 100 Parts.
Cycle Fault Monitoring.
Automatic Clamping of Hob Swivel.
Power Workpiece Clamping. Tailstock.
Mist Collector.
Magnetic Chip Conveyor.
Full Enclosure.
Misc tooling for table and grippers as photographed
manuals & electrical prints

Machine can be inspected under power at our Facility in Statesville NC.
