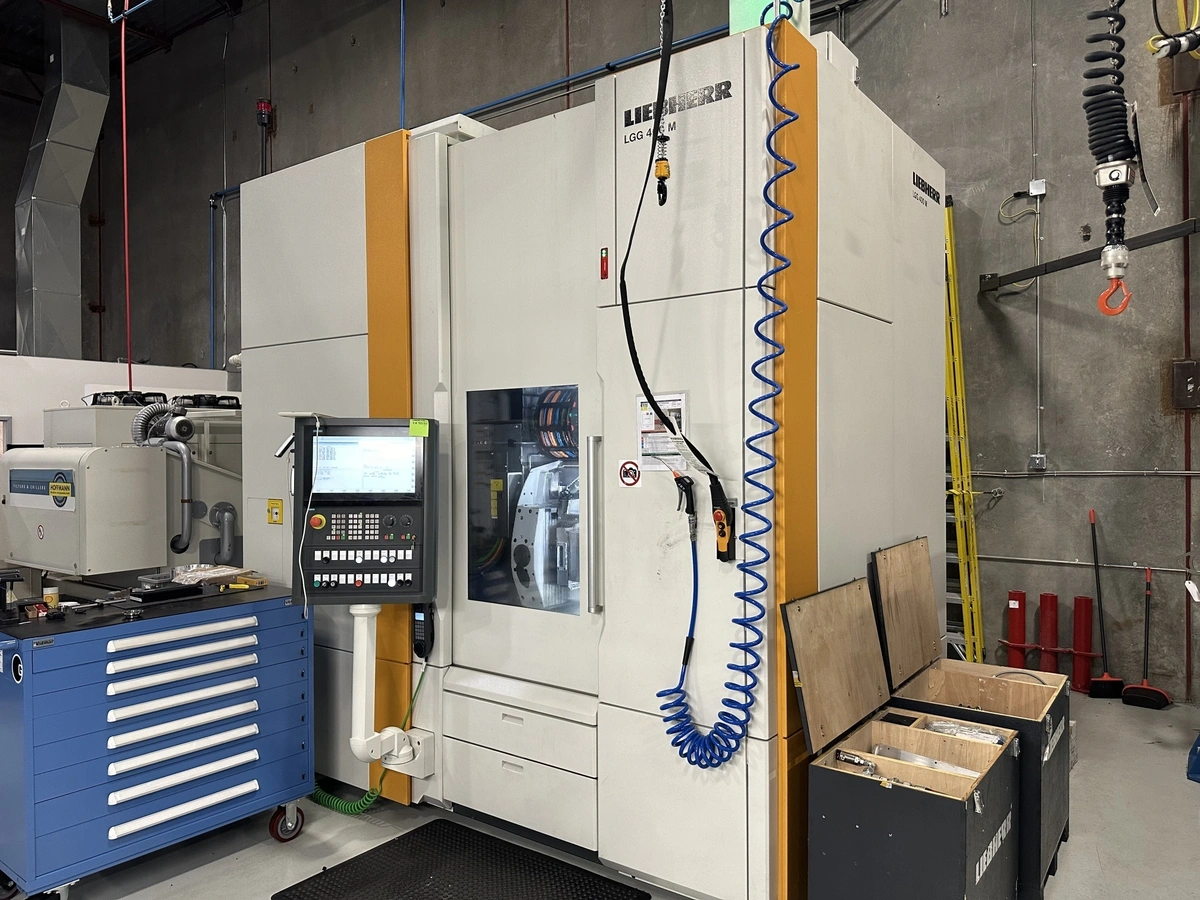

Liebherr model LGG 400M CNC Gear grinder , utilizing both Form & Generating Grinding Like New condition installed 2022

Liebherr CNC Form & Generating Gear Grinder
Model LGG 400M
s/n FN 8110
new 2018 But installed In 2022
Machine condition : Like New / very low Hours

This Late model , Like new condition Liebherr Gear Grinder Is
equipped with Both Form and Generating style software and also
is equipped with two Internal grinding arms as well. It also has
many additional features like extended axial travel for long shafts!

Machine Specifications :
Max workpiece diameter Profile Grinding 400 MM
Max workpiece diameter Generating Grinding 280 MM
Max Module Profile Grinding 7.5 mm
Max Module Generating Grinding 5 mm
Min center distance 20 mm
Max center distance 380 mm
Max radial speed 8000 mm/min
Table Diameter 145 mm
Max table speed 3000 1/min
Max Axial travel 1060 mm option
Grinding head swivel w/GH 5.0 device +/- 45 deg
Grinding head drive capacity 28.5 KW
Grinding head speed 12000 1/min
Grinding head tang travel 270 mm
Max tool Diameter x Length Corundum worm 240 x 200 mm
NC dressing unit for dressing wheel Generating 20 mm
NC dressing unit for dressing wheel Profile 33 mm
NC dressing unit tool diameter 150 mm
Steady column (tailstock) axial travel 450 mm
Machine weight 14000 Kg

Machine is equipped with:
siemens simatic cnc controls
Both Form (Profile) and Generating style gear grinding
liebherr Gantry crane for part loading
(2) internal grinding arms (optional)
axial travel option of 1060 mm for long shafts
steady column (Tailstock)
filtration system
Misc tooling , wheel flanges and grinding wheels , etc.
full manuals and documentation

Note: this machine with the internal arm optioned should retail at
roughly $1.4 Million all in !!!!

This machine can be inspected in customers plant under power
in excellent "Like New Condition". we highly recommend a
prompt inspection if interested in purchasing this machine
price and delivery as well as export packing can be quoted as
well. visit www.pisellient.com or contact Rich Piselli at
Rich@Pisellient.com for more technical information on this
machine
