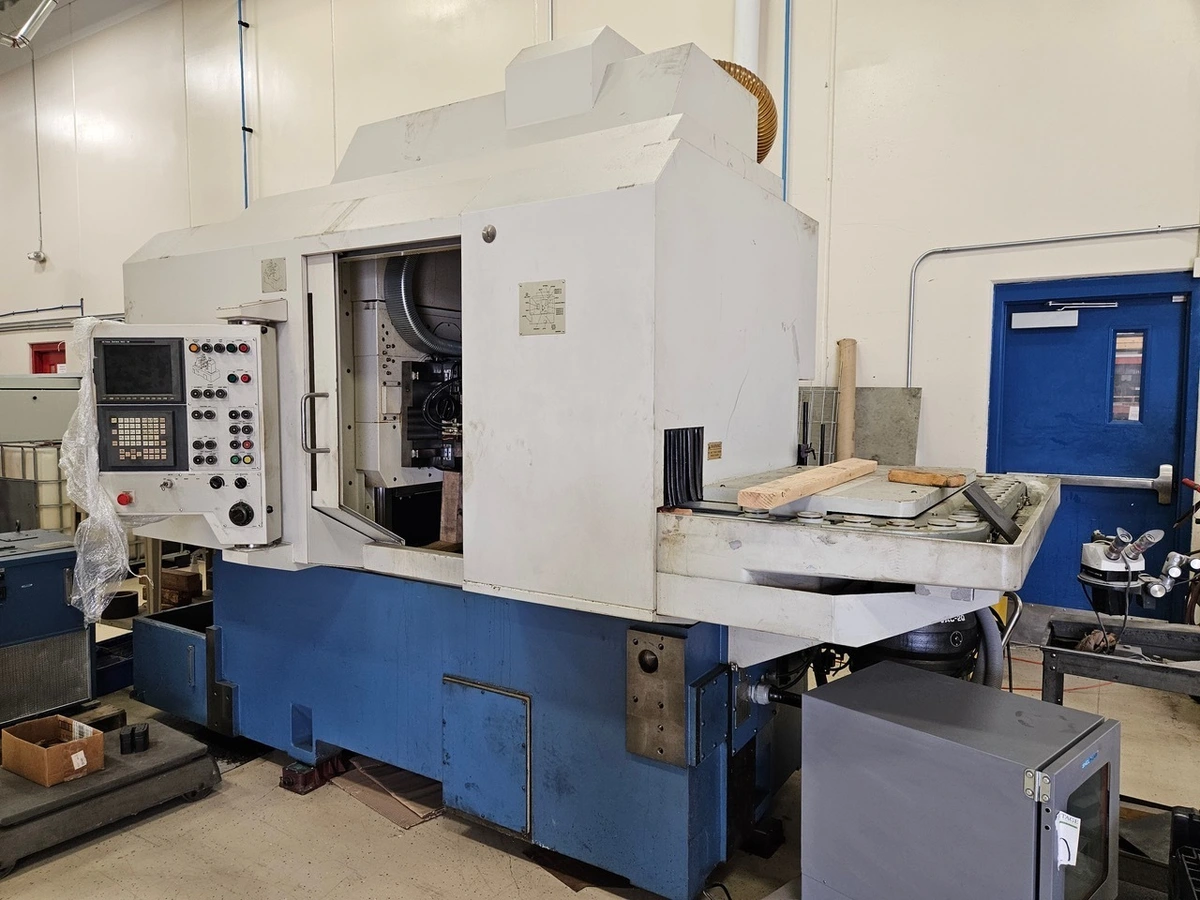

Gleason Model GP 130 6 axis CNC gear hobber w/ loading 5" diameter , shuttle loader, delivered new 2000
Gleason 6 Axis vertical CNC Gear hobber w/ Loading
Model GP 130
s/n will advise
new oct 1999 , installed 2000
machine condition / very good
this machine is equipped with the shuttle style wrap around loader.
this machine can be set up to run gears or shafts. machine can be
run in the auto load or manual load cycle depending on volumes.
Machine specs as follows:
Max diameter gear utilizing loader 5" / 130mm
Nominal module 3 mm
Maximum axial slide travel 250 mm
Hob swivel angle +/- 45
Maximum workspindle speed 1000 rpm
Maximum hob diameter 80 mm
Maximum hob length/total length 170/245 mm
Maximum hob shift travel 170 mm
Hob drive 14kW
Maximum hob speed 3000rpm
Table surface diameter 160 mm
Machine weight 10,000 kg
Machine is equipped with the following:
GE Fanuc model 160-IM 6 axis cnc controller
Operator swing out pendant control
Universal shuttle loading style system (attached)
hydraulic table work clamping
coolant tank & pump
Hob arbor
tailstock
Misc. tooling
Books & Manuals
please contact us for special pre-removal pricing as machine will
be shipping shortly to our warehouse location. contact Rich Piselli
at Rich@pisellient.com or visit our website at www.pisellient.com to
request a formal quote on line or see other gear machines in our
vast inventory
