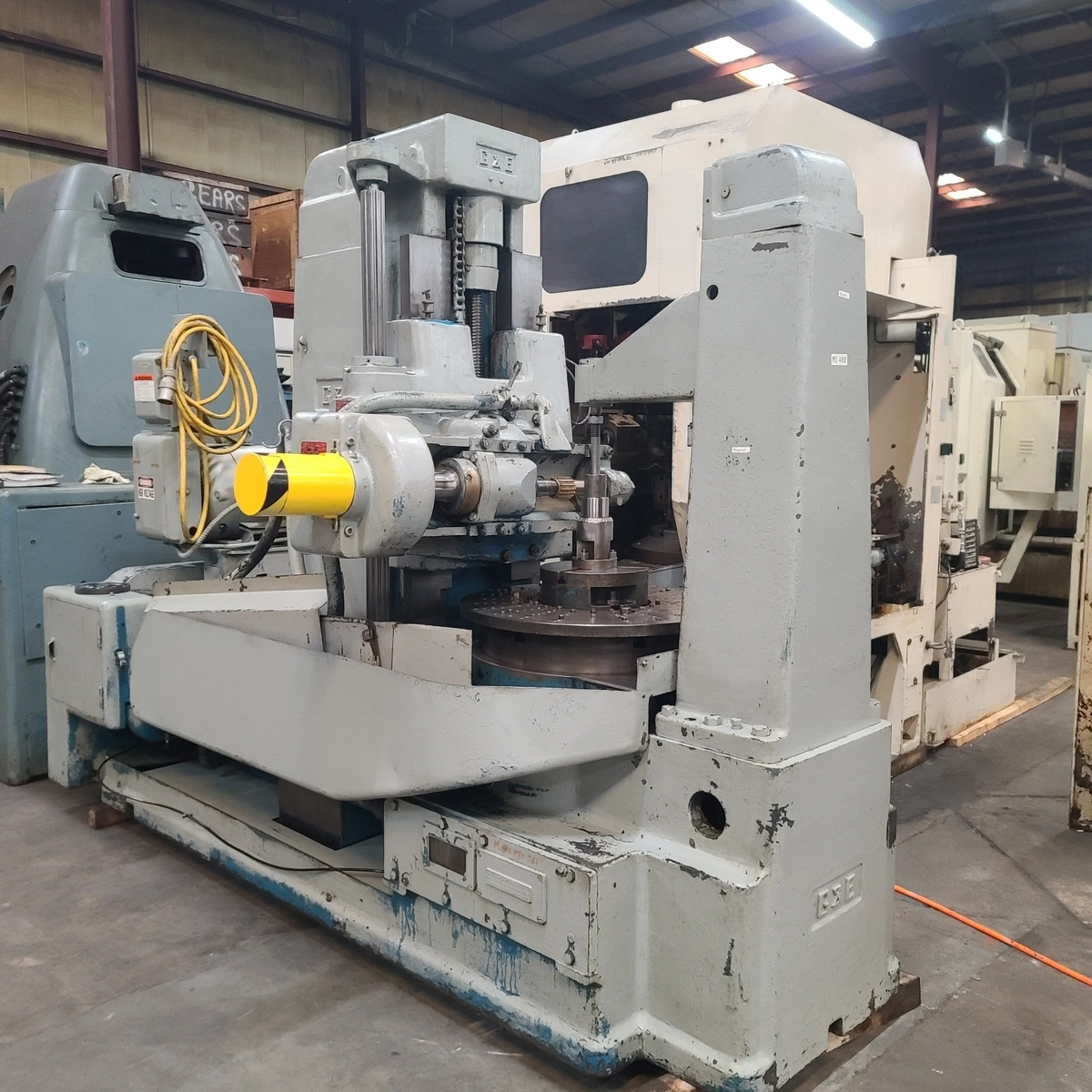

Gould & Eberhardt Model 48H Vertical gear hobber , 48" diameter capacity 2 dp , inspect in statesville NC under power

Gould & Eberhardt Vertical gear hobber
Model 48H
s/n 4320-A3

this machine has been purchased from an upper midwest gear shop.
the machine Has been shipped to our Statesville NC facility for
under power testing

Machine catalog specs as follows :
max diameter w/ support 32"
max diameter w/o support 54"
max pitch 2.5 dp
max face capacity 15"
Min centers 0"
max diam hob 8"
Diameter work table 25"
diameter index worm gear 32"
Main motor 10 HP
floor space 52" x 126"
machine weight 17,000 lbs

Machine is equipped with :
30" table plate
work fixture and tool post
tailstock
hob arbor
Misc. change gears & tooling
Manuals

This machine is presently in our Statesville NC facility and can be
inspected under power with proper notice. Machine will be gone through.
contact rich at rich@pisellient.com to request a formal quote & Pricing
or visit our website at www.pisellient.com for more photos and other
Machines and equipment
