Mikron Model 102 gear hobbing machine selling with Mikron 121 Hob sharpener as a package , excellent condition

GEAR HOBBERS
Manufacturer:
MIKRON
Model:
102
Condition:
Excellent
Stock #:
16634086
Mikron Model 102 gear hobbing machine selling with Mikron 121 Hob sharpener as a package , excellent condition

Mikron Hobber and sharpener Package

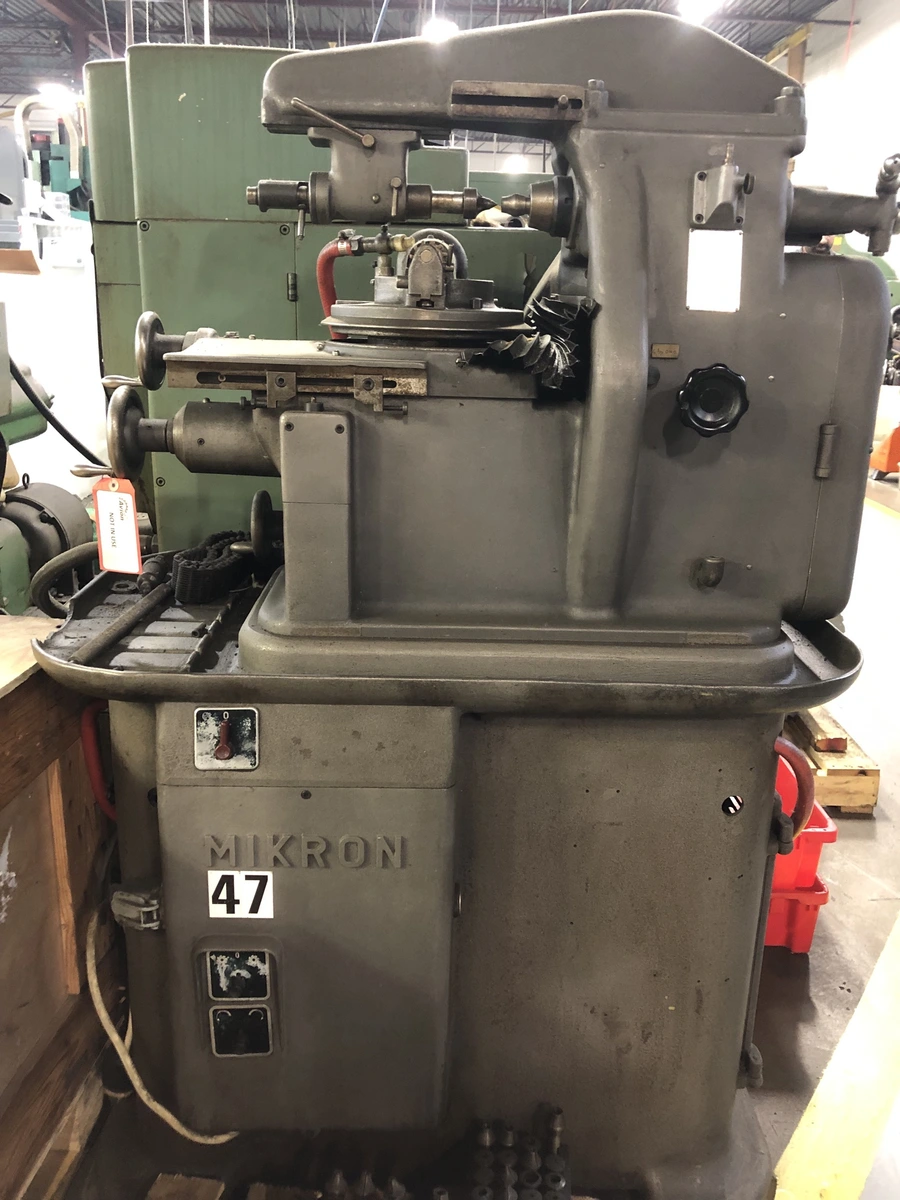

Mikron model 102 gear hobber
Mikron model 121 Gear hob sharpener

these machines were purchased from a small aerospace plant in canada
the machines are being sold as a package

capacities:
max diameter gear 120 mm
Max cut length 130 mm
Number of teeth 6-325
feed range (7) from 0,05 to 0.6 mm
milling rotation speeds (10) 140 - 1870 rpm
Pitch of the helix 2-5000 mm
helix angle 0-90 degrees
max module 2
machine weight 1250 lbs

machines are equipped with the following
Misc change gears
misc tooling and wheel flange for sharpener

contact us today for further specs and information or visit our website
www.pisellient.com or email rich Piselli at rich@Pisellient.com

thank you
rich piselli
