Fellows model 10-2 Gear shaper , 3" riser 14" diameter , pinion support tailstock , variable speed drive s/n 36880

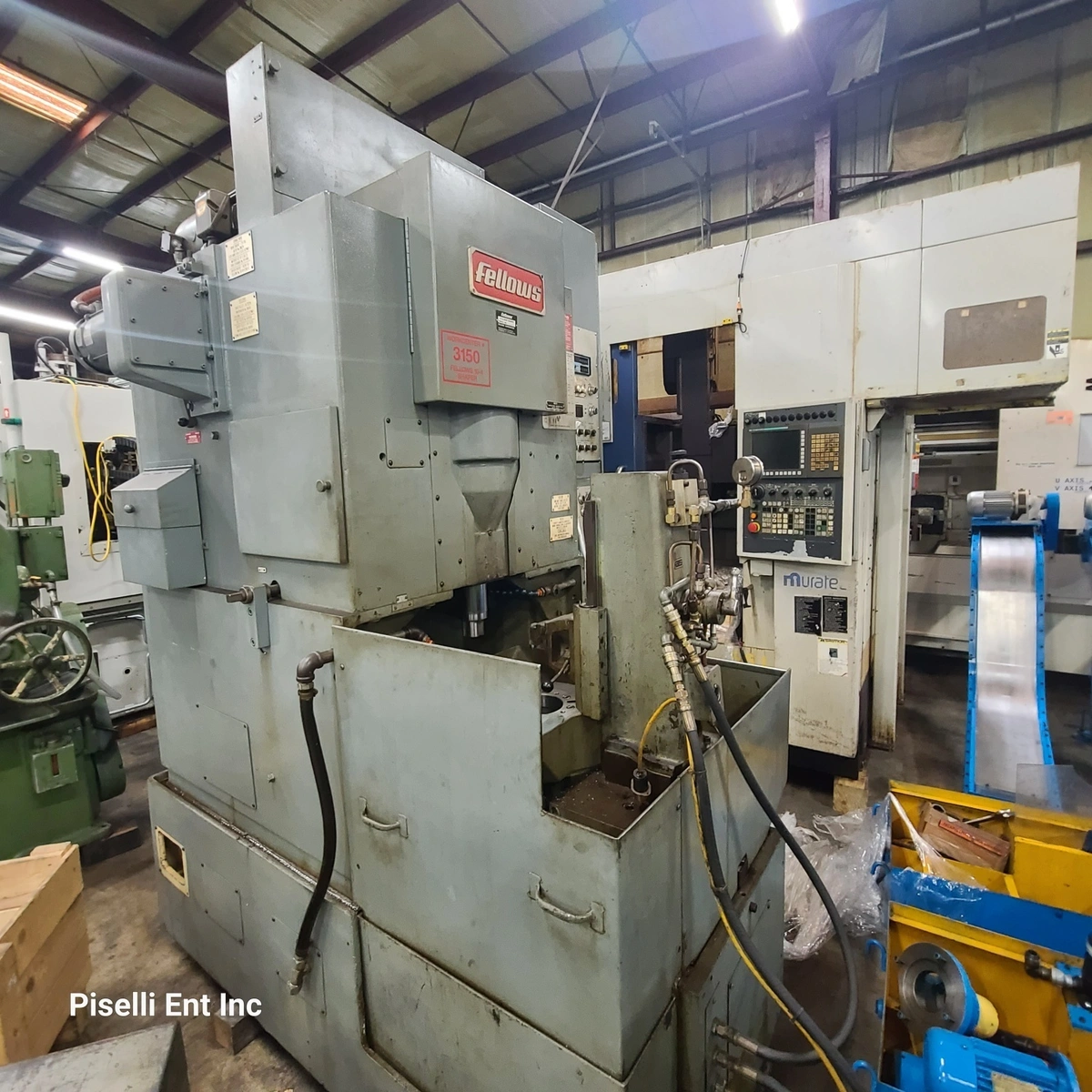

FELLOWS vertical Gear shaping machine
Model 10-2,
S/N 36880

Machines are to be gone through by Piselli Enterprises and delivered in
excellent working condition contact us regarding the work to be done on
these machines and checked for accuracy.

Machine specifications are as follows:
Max. External & Internal Pitch Dia 10"
Max. Face Width, External 2"
Max. Diametral Pitch, Spur 4 DP
Max. Diametral Pitch, Helical 5 DP
Bore through work spindle 5.875"
Spindle Diameter 3.543"
Distance between work table and cutter spindle 10"
Max. Helix Angle with Standard Guides 45 degrees
Max. OD of Fixture 19"
Dimensions approx 119"L x 97"H x 53"D
Approx. weight 11,000 lbs.

MACHINE IS EQUIPPED WITH:
3" Riser
2" Stroke Capacity
Pinion support / swing-away Tailstock
Cutter at Top
Hydraulic Tank
variable ac drive spindle motor
1 Cutter Adapter
Misc. Change Gears

Machine can be inspected in excellent condition with proper notice.
Give us a call today for more info and to learn about our refurbishing
program. contact rich at Rich@Pisellient.com or visit our website to
request formal quote and pricing at WWW.PiselliEnt.com
