Barber Colman model 14-30 series II gear hobber , 2-cut cycle , crowning , hob shift , dual thread , nice s/n 1277

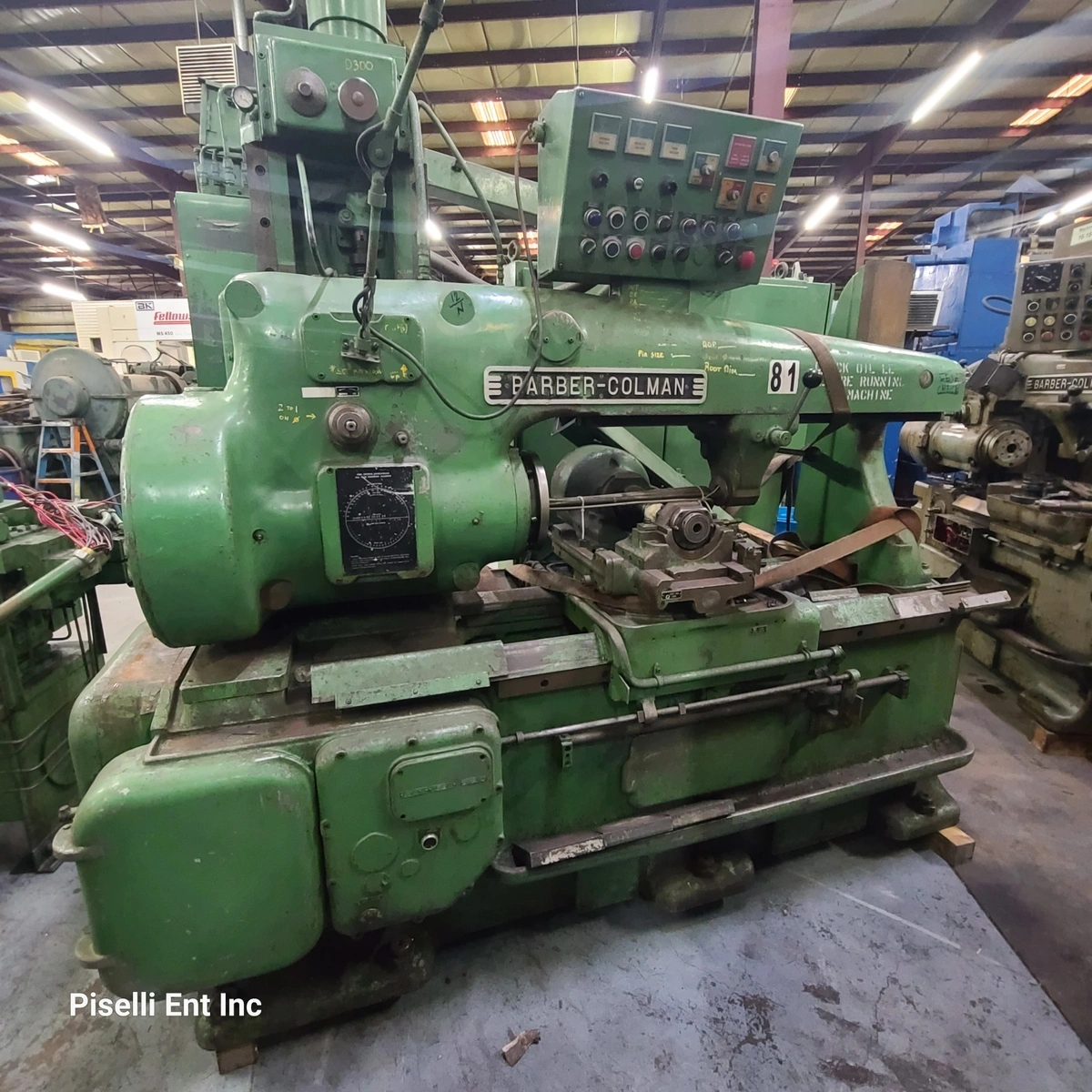

Barber-Colman Horizontal Gear hobbing Machine
Model 14-30 Series II
S/N 1277
2 cut cycle with crowning

This machine is a very nice universal Horizontal gear hobbing machine.
This automatic cycle machine is a rare machine offered by Barber-colman is
of very rigid design and is an Extended version of the model 14-15 Hobber.
All tooling and fixturing should be interchangeable between one another.

The Specifications of the machine are as follows:
CATALOGUE SPECIFICATIONS:
Maximum Rated Work Diameter................................. 14"
Maximum Pitch in Steel...................................... 3.5 DP
Maximum Travel of Hob Slide................................. 30"
Maximum Distance Work Spindle Face to Tail Center........... 27.25"
Maximum Distance Work Spindle Centerline to Hob Spindle..... 9.75"
Minimum Distance Work Spindle Centerline to Hob Spindle..... 1.75"
Work Spindle Bore (Standard)................................ 4.18"
Index Worm Gear Pitch Diameter.............................. 17.9"
Maximum Number of Teeth Cut................................. 300/4
Maximum Hob Diameter (Standard)............................. 6.25"
Maximum Swivel Angle (Helix) Setting R/L.................... 50 DEGREES
Maximum Hob Shift Travel.................................... 4"
Main Drive Motor............................................ 10 HP
Hydraulic Pump Motor........................................ 3 HP
Lubricating Pump Motor...................................... 1/4 HP
Coolant Pump Motor.......................................... 1 HP
Approximate Machine Dimensions.............................. 130" x 81"
Approximate Machine Height.................................. 90"
Approximate Machine Weight.................................. 13,500 LBS

Machine is equipped with the following features
auto cycle
2- cut cycle
crowning
Hob shift
hob arbor
change gears
manuals

This machine can be inspected under power in good condition .
The Machine has been tested and inspected under power in our
shop and it runs well. Let us know if you need a formal quote
or video of the machine under power

thank you and visit our website for more gear machine selections
www.piselliEnt.com or contact rich Piselli at Rich@Pisellient.com
