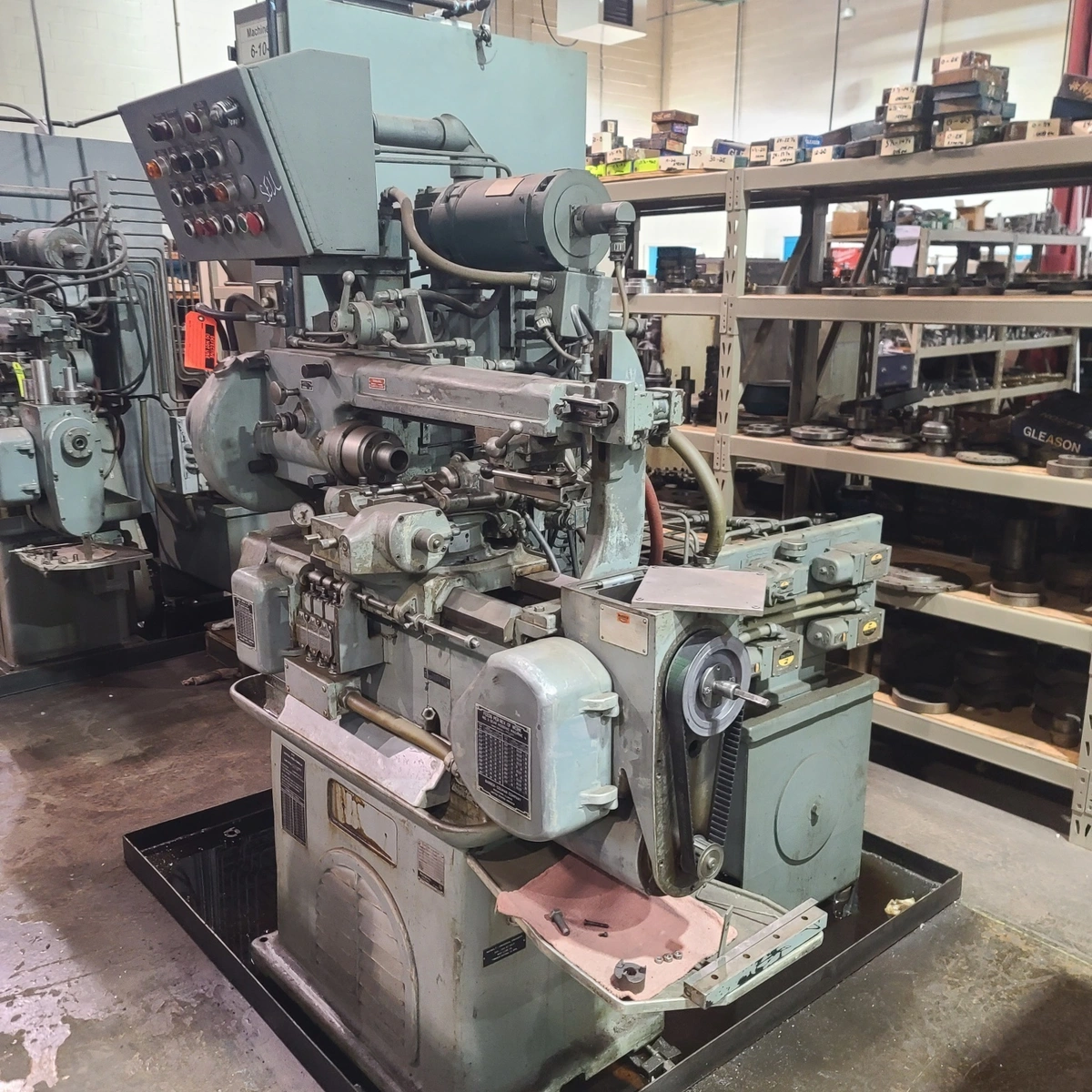

Barber Colman Model 6-10 & 6-16 Multicycles, 6" diameter , v-ways, power tailstocks , c-frames (4 Avail)

Barber colman Horizontal Hobbers (4 Available)
model 6-10 & 6-16 Multicycles
6-16 s/n 5365 triple comm Gray (237)
6-16 s/n 5369 triple comm Green (238)
6-10 s/n 5203 triple comm Gray (215)
6-10 s/n 5254 single precision Gray ( ?)
4 Available

These Multicycle machines rarely come available and we have 4 avail.
the machines can be inspected in our shop under power . these are
full multi-cycle machines with the latest features and cycles

Machine specifications

MAXIMUM WORK DIAMETER: 6"
MAXIMUM TRAVEL OF HOB CARRIAGE: 10-1/2" - (16")
MAXIMUM DIST. SPINDLE FACE TO TAILSTOCK CENTER: 15-3/4"
MAXIMUM DIAMETRAL PITCH , 1 CUT: 16 DP - 2" DIAM
MAXIMUM DIAMETRAL PITCH ,1 CUT: 48 DP - 6" DIAM
MAXIMUM HOB DIAMETER: 2-1/16"
HOB SPEED: 133 - 533 RPM (TBD)
WORK SPINDLE BORE: 1-1/32"
WEIGHT OF MACHINE: 3,500 LBS.

MACHINES ARE EQUIPPED WITH:
multicycle functionality
Automatic cycles
- plunge cycles
- Square cycles
- Dwell cycles
- Hob shift
Precision Single Thread & commercial Worms
power Centers
V- ways
Change Gears Misc
1 Hob Arbor
Books and manuals

** must inspect individual machines for exact specs and features !!!

Machines can be inspected under power in good mechanical condition with proper
Notice in our Statesville NC plant! contact us to set up an inspection today or
visit our website at www.piselliEnt.com to view similar machines or all our gear
machine inventory contact Rich Piselli at Rich@Pisellient.com
