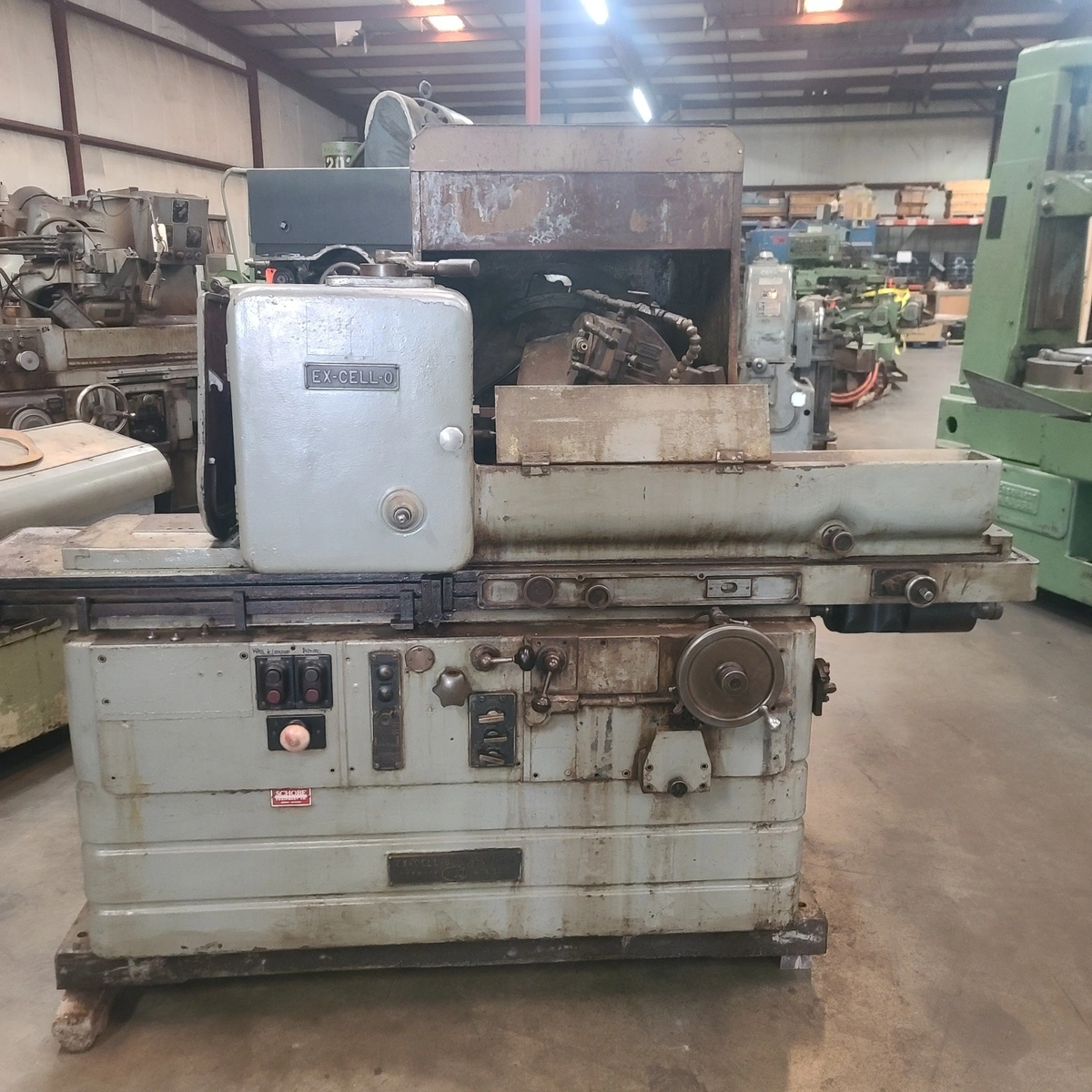

Ex-Cello Model 35 External Thread Grinder
Ex-Cello external thread grinding Machine
Model 35
s/n 1177
machine can be inspected in our statesville NC facility
Machine capacities
Swing Over Table, Maximum 14.75"
Grinding Diameter w/18" Wheel, Maximum 8"
Grinding Diameter w/14" Wheel, Maximum 12"
Internal Grinding Diameter, Minimum 1"
Internal Grinding Diameter, Maximum 8"
Internal Grinding Thread Length, Max 3"
Distance Between Centers, Maximum 33"
Grinding Wheel Diameter, Minimum 13"
Grinding Wheel Diameter, Standard 18"
Grinding Wheel Width, Minimum 3/8"
Grinding Wheel Width, Maximum 1/2"
Grinding Wheel Hole Diameter 9"
Hole through spindle , Diameter 1.625"
Helix R.H. Angle, Maximum 30-DEGREES
Helix L.H. Angle, Maximum 45-DEGREES
(6) Grinding Spindle Speeds, Range 1910 to 2640 RPM
Workhead Spindle Speeds, Range 2 to 250 RPM
Floor Space Required, L x D 5'4" x 4'10"
Overall Height 4'11"
Weight, Approximately 8500 LBS
MACHINE IS EQUIPPED WITH;
Dresser
Coolant Tank and Filtration
Misc. Tooling
manuals
Machine can be inspected in our Statesville NC facility under
power with proper notice. visit our website at WWW.Pisellient.com
to receive a formal quote and photos or contact rich Piselli at
Rich@Pisellient.com for more info or to set up an inspection
