Pfauter fellows model P630 , 24" diameter capacity, 15" face width , hob arbor , tailstock , s/n 31777-163

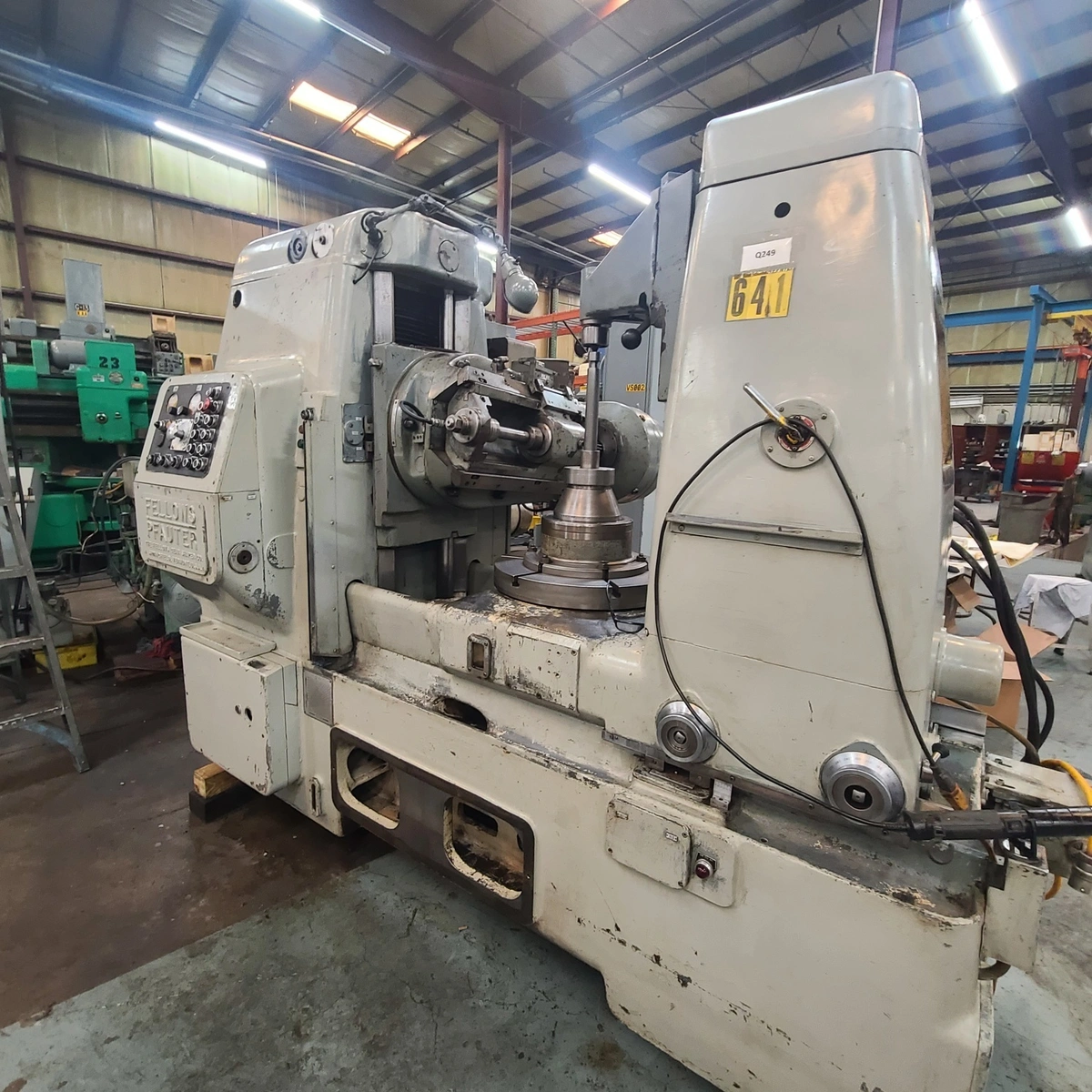

Fellows Pfauter vertical gear hobber
Machine model P-630
s/n 31777-163

this machine is an excellent production mechanical gear hobber
machine. It can be inspected in our NC plant

Machine specifications to follow

Max diameter gear 24.5"
Max face width 15"
Max axial travel 17.3"
max pitch 2.5 DP
max diameter hob 7.5 x 9.5"
tailstock max/ min 30" / 13.43"
table diameter 21.8"
hole in the table 3.9370"
max tang travel 7.9"
machine weight 20,000 lbs

machine is equipped with the following
differential
tangential
auto cycles
tailstock
hob arbor (1.5" Diam)
chip conveyor
electrical panel
change gears
books and manuals

Machine can be inspected repaired & gone through in our Statesville
NC shop. please visit our website at WWW.Pisellient.com for formal quote
on-line or contact rich piselli at Rich@Pisellient.com for more info
or to set up an inspection on this or learn about other machinery we have
