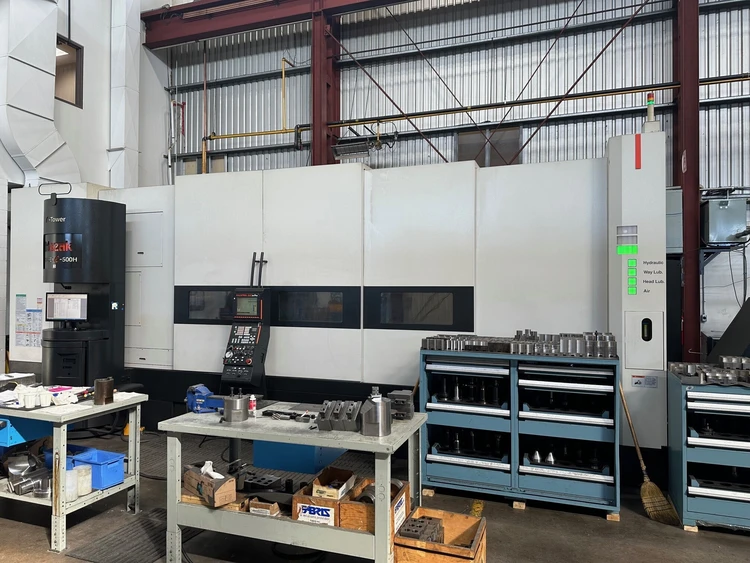

Mazak integrex e500H x 120 excellent machine under power , contact us today for further information new 2007
MAZAK INTEGREX MULTITASKING CNC TURNING CENTER
Model e 500H 120
NEW: 2007
SPECIFICATIONS:
SWING ................... 32.28"
TURNING DIAMETER ........ 32.28"
CENTER DISTANCE ......... 122.91"
BAR CAPACITY ............ 4.09"
X-AXIS TRAVEL ........... 34.25"
Y-AXIS TRAVEL ........... 19.69"
Z-AXIS TRAVEL ........... 122.91"
B-AXIS HEAD TILT ........ -30~+210 deg.
C-AXIS INDEX ............ 0.001 deg.
SPINDLE NOSE ............ A2-11
SPINDLE SPEED ........... 2,000 RPM
MAIN MOTOR .............. 40HP
LIVE TOOL MOTOR ......... 25HP
LIVE TOOLING SPEED ...... 10,000 RPM MILLING SPINDLE
ATC CAPACITY ............ 80 STATIONS
APPROX WEIGHT ........... 63,051 LBS.
EQUIPPED WITH:
- MAZATROL 640M PRO CNC CONTROL
- 15" B15 KITAGAWA 3-JAW HYDRAULIC CHUCK
- 80 TOOL MAGAZINE
- SMW SLUZ4 STEADYREST 1.38" - 9.65"
- MAZAK SUPER FLOW 12 1,000 PSI COOLANT
- CONSEP 2000 CHIP CONVEYOR
- AUTOMATIC PECK CYCLE
- AUTOMATIC POWER OFF
- HIGH/LOW CHUCK PRESSURE
- LASER MEASUREMENT
- TAILSTOCK
- Steady rest
- MISC TOOLING
- Full Manuals and documentation
Machine can be inspected for a shot time under power at customers location
let us know if you have further interest as machine is in excellent condition
and will be ready for sale shortly . contact Rich Piselli at 704 609 0766
or by email at Rich@Pisellient.com or our website for a formal quote on line
at WWW.PiselliEnt.com
