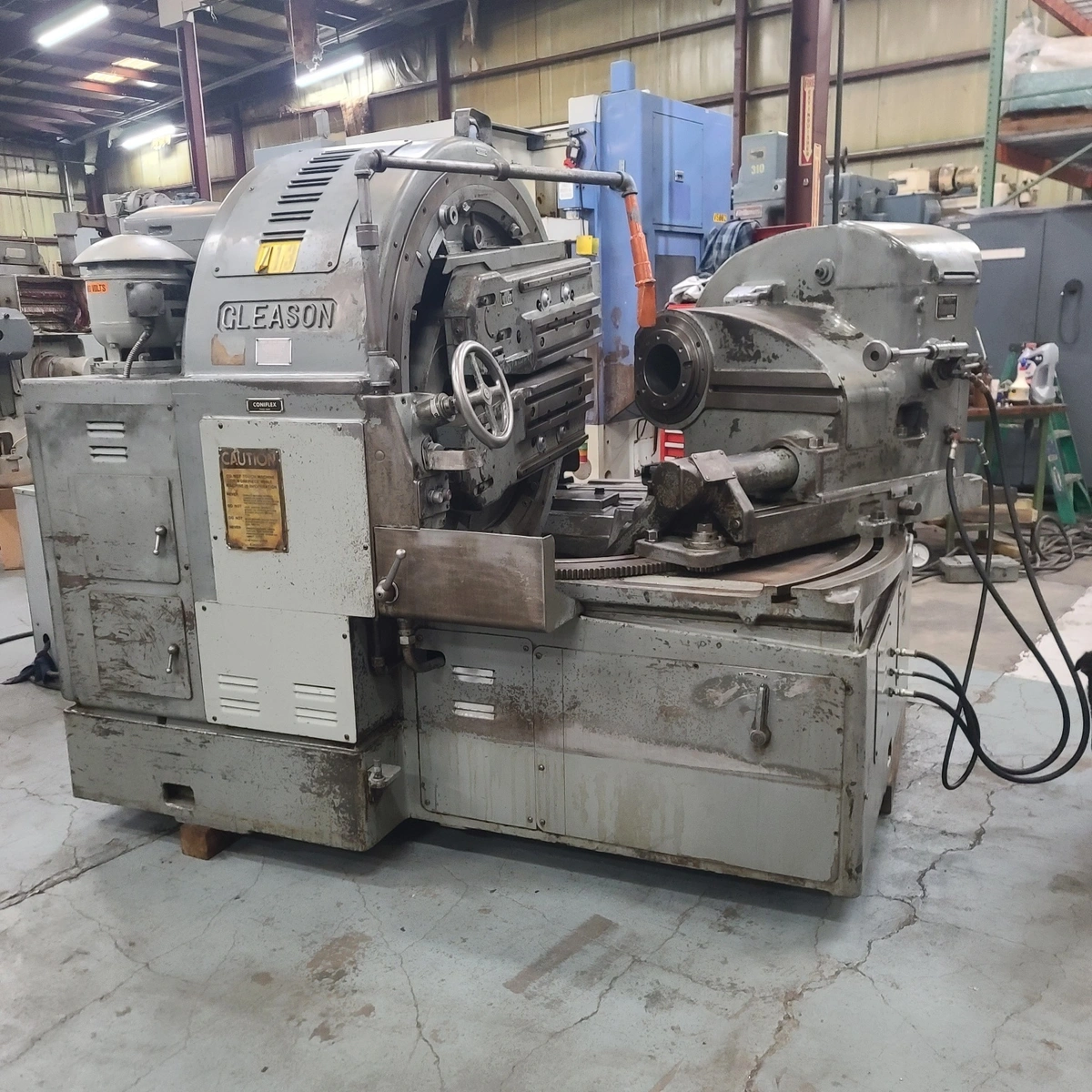

Gleason Model 24A straight Bevel Coniflex gear cutter for 35" Pitch diameter gears , gone through Excellent Condition

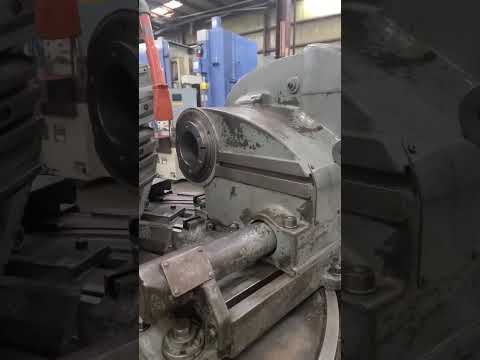

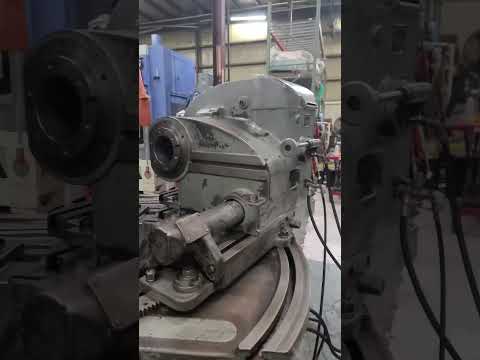

Gleason straight bevel Coniflex gear generator
model 24A
s/n 26936

this machine is excellent for producing large diameter straight bevel
gears . machine is equipped with Coniflex allowing it to cut up to 35"
Diameter gears , 1-1/2 DP .large assortment of gears and tooling

EQUIPMENT / FEATURES:

• universal feed cam, double-track, for roughing
and/or finishing work
• hydraulic chucking attachment (lw/draw-bar & nut)
• self contained hydraulic system
• full complement of electrics (motors/controls)
• set of tool setting gauges w/proof block
• cutter length gauge
• stock dividing gauge (TBD)
• roughing yoke & bushing
• one (1) set of standard tool holders (TBD)
• one (1) set of “finishing” tool-holders (TBD)
• one (1) set of “Tanruf single-blade tool-holders” (TBD)
• one (1) set of “Tanruf double-blade tool-holders” (TBD)
• one (1) set of tool-holder extension blocks (TBD)
• tool & gear cabinet w/good assortment of change gears (TBD)
for index, roll, ratio of roll, feed and speed
• GLEASON auto-stop
• guards/covers
• misc. wrenches, spanners, operator's tools
• operator's manual, parts list, wiring & hydraulic diagrams

PRINCIPAL SPECIFICATIONS:

Longest cone distance (1 3/4" stroke) 18" /(457mm)
Shortest cone distance 0"
Maximum pitch diameter:
10 to 1 ratio 35.5" /(901mm)
2 to 1 ratio 31.75" /(805mm)
1 to 1 ratio 25" /(635mm)

Maximum pitch angle (shafts at 90 degrees) 84.18 degrees
Minimum pitch angle 5.42 degrees
Extreme ratio 10 to 1
Maximum pitch 1.25 DP /(20.4 module)
Maximum face length 6" /(152mm)
Index range: 10 to 100 inclusive and most numbers up to 200
Work spindle bore:
diameter (large end of taper) 6" /(152mm)
taper per foot .75" /(18mm)
depth of taper 6" /(152mm)
diameter of thru bore 5” /(127mm)
Spindle nose to machine center 5-24” /(127-660mm)
Speed and Feeds:
Cutter speeds (strokes per minute) 22 to 170
Feeds (seconds per tooth) (22 feeds) 23 to 645
Floor space required 74" x 105" /(1880x2660mm)
Machine net weight 24,400 lbs /(11,295 kGs)

machine has been delivered to our warehouse in Statesville NC.
We can confirm actual tooling selling with machine. above is only
a guide of what came with machines originally from factory or
possibly purchased or offered by OEM. please confirm when purchasing

contact us at piselli enterprises inc for more info
or visit www.pisellient.com to request a formal quote on line
come inspect machine in excellent condition under power today!!!
